Quad 2 Input AND Gate, 74AHC08Q Replace 74AHC08PW-Q100.
FEATURES

AEC-Q100 Qualified for Automotive Applications

  Device Temperature Grade 1

  TA = -40℃ to +125℃

Supply Voltage Range: 2.0V to 5.5V

Over-Voltage Tolerant Inputs up to 5.5V

CMOS Low Power Dissipation

Balanced Propagation Delays

All Inputs with Schmitt-Trigger Action

-40℃ to +125℃ Operating Temperature Range

Available in a Green TSSOP-14 Package

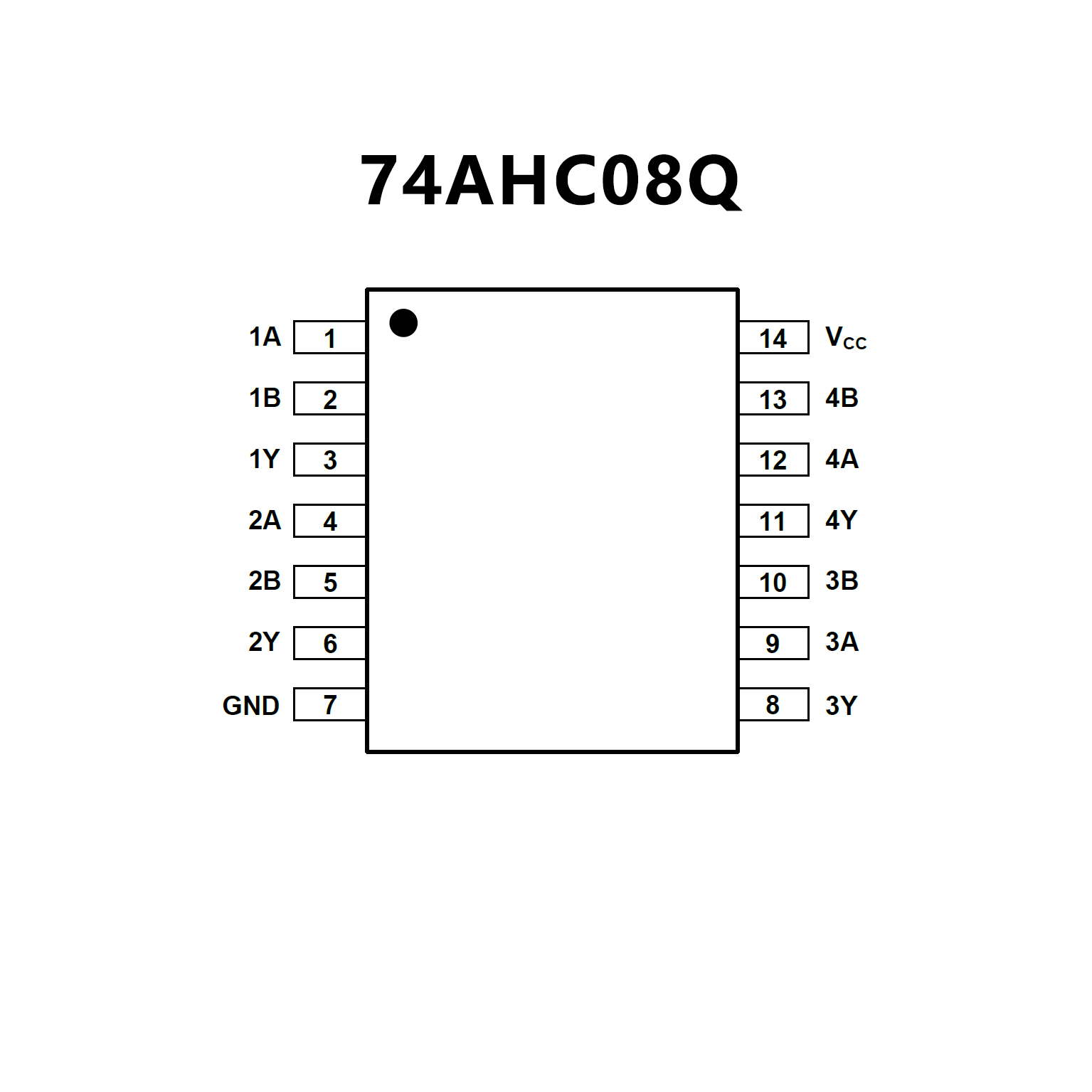

PIN CONFIGUTION
優勢替代
74AHC08-Q100 74AHC08-Q100.pdf

No.13823

FEATURES

Automotive product qualification in

  accordance with AEC-Q100 (Grade 1)

Specified from -40 °C to +85 °C and

  from -40 °C to +125 °C

Wide supply voltage range from 2.0 V to 5.5 V

Input levels:

For 74AHC08-Q100: CMOS level

For 74AHCT08-Q100: TTL level

Balanced propagation delays

All inputs have a Schmitt-trigger action

Overvoltage tolerant inputs to 5.5 V

High noise immunity

CMOS low power dissipation

ESD protection:

MIL-STD-883, method 3015 exceeds 2000 V

HBM EIA/JESD22-A114F exceeds 2000 V

MM EIA/JESD22-A115-A exceeds

  200 V (C = 200 pF, R = 0 ?)

Latch-up performance exceeds

  100 mA per JESD 78 Class II Level A

Multiple package options

DHVQFN package with Side-Wettable

  Flanks enabling Automatic Optical

  Inspection (AOI) of solder joints

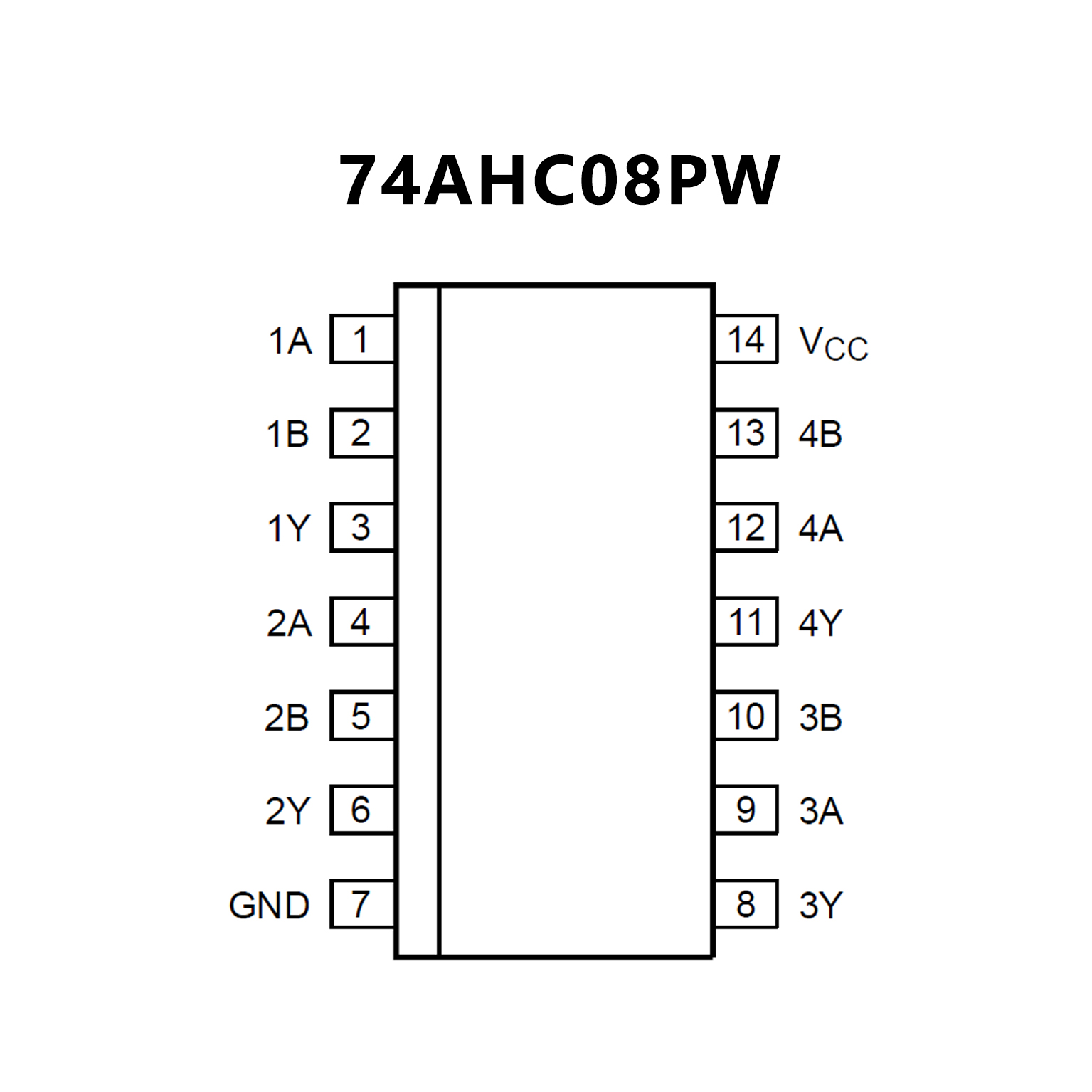

PIN CONFIGUTION
