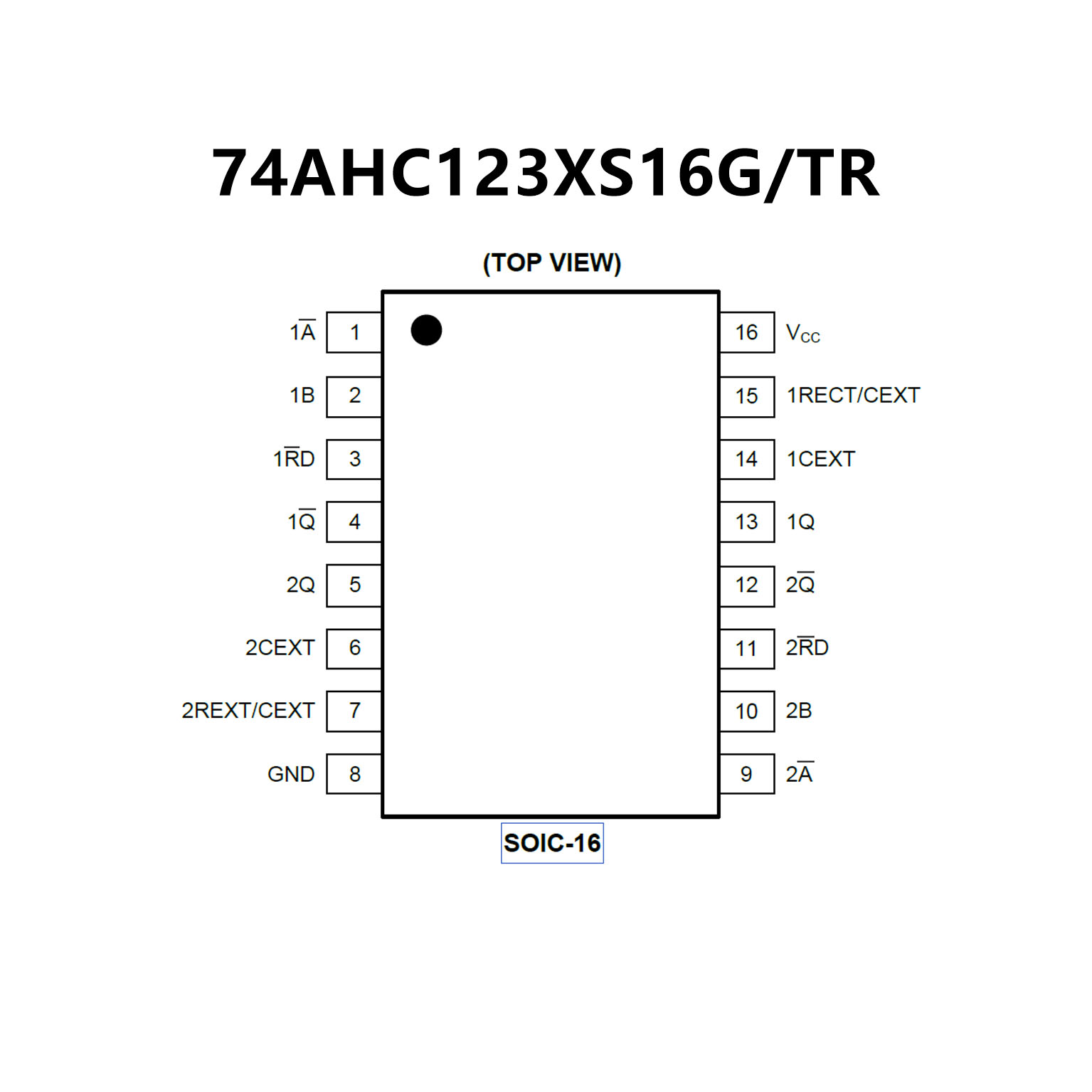

74AHC123XS16GTR.pdf? All Inputs Have a Schmitt-Trigger Action
? Inputs Accept Voltages Higher than VCC
? Edge-Triggered from Active High or Active Low
Gated Logic Inputs
? Retriggerable for Very Long Pulses up to 100%
Duty Factor
? Direct Reset Terminates Output Pulse
? Operates with CMOS Input Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-16 Package
?All inputs have a Schmitt-trigger action
? Inputs accept voltages higher than VCC
? DC triggered from active HIGH or active LOW inputs
? Retriggerable for very long pulses up to 100 % duty factor
? Direct reset terminates output pulse

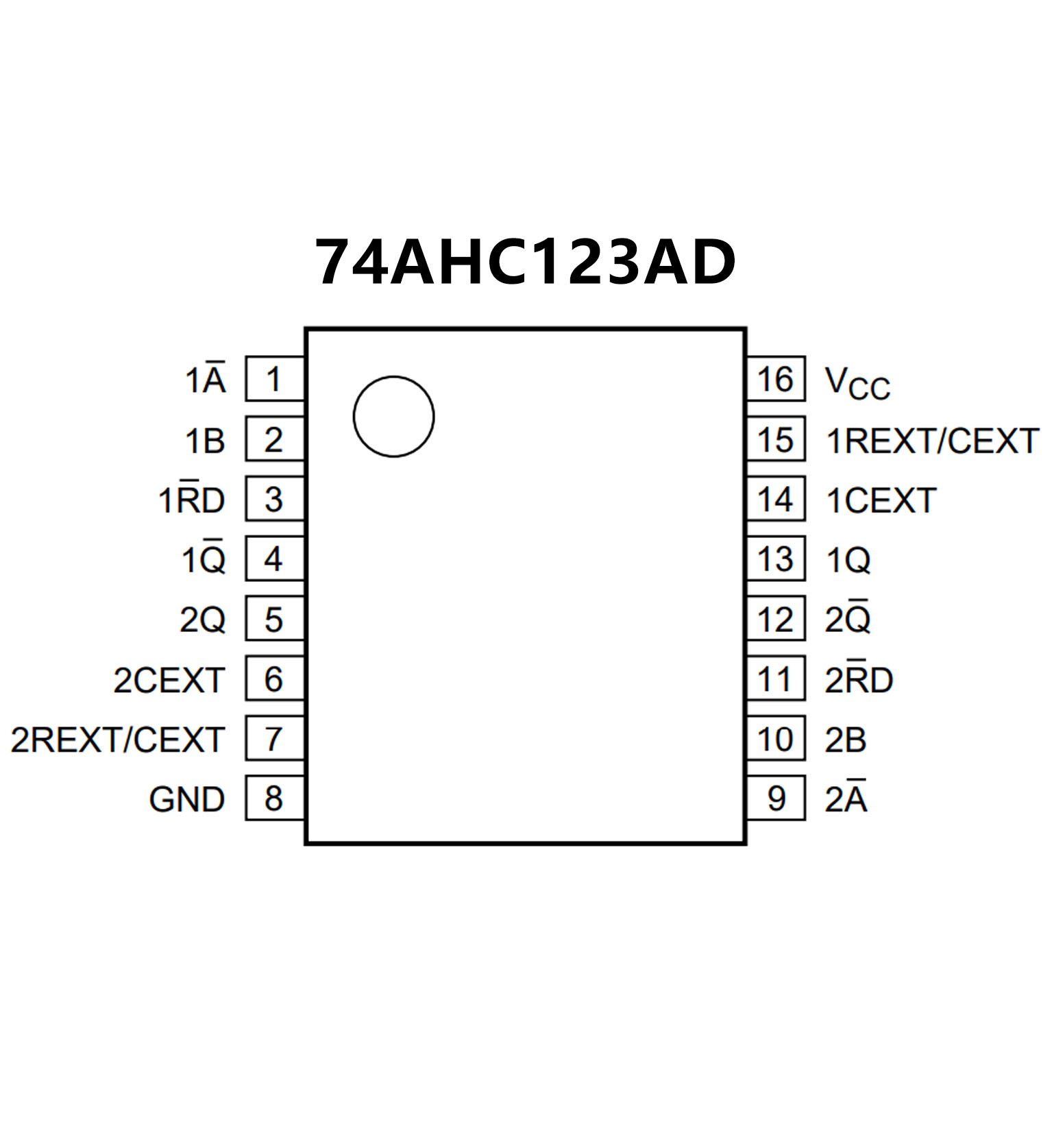

? For 74AHC123A only: operates with CMOS input levels
? For 74AHCT123A only: operates with TTL input levels
? ESD protection:
HBM JESD22-A114E exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
CDM JESD22-C101C exceeds 1000 V
? Multiple package options
? Specified from-40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
