Hex Inverter with Schmitt Trigger Inputs,74AHC14XS14G Replace SN74AHC14DR.
74AHC14XS14G
74AHC14XS14G.pdf
74AHC14XS14G.pdfFEATURES
? Wide Operating Voltage Range: 2.0V to 5.5V
? Inputs Accept Voltages Higher than the SupplyVoltage
? +8mA/-8mA Output Current
? All Inputs with Schmitt Trigger Actions
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

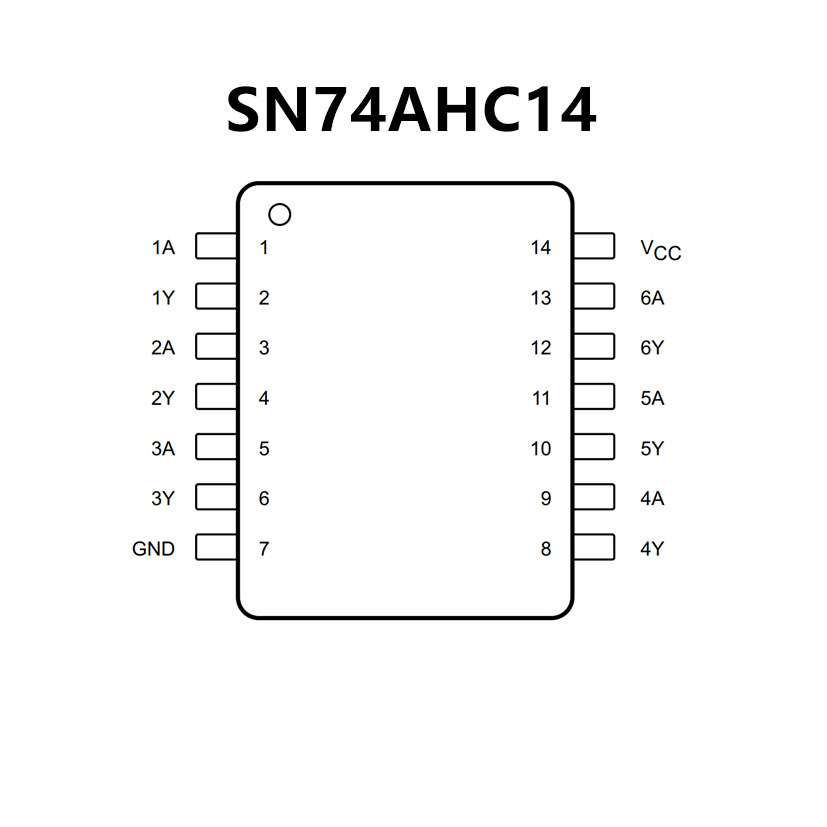

PIN CONFIGUTION
優勢替代
FEATURES
? ESD Protection Exceeds JESD 22:
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
? Operating Range: 2 V to 5.5 V
? ±8-mA Output Drive at 5 V
? Schmitt-Trigger Inputs Enable Input Noise
Resistance
? Low Power Consumption: 20 μA Maximum ICC
? Latch-Up Performance Exceeds 250 mA Per
JESD 17

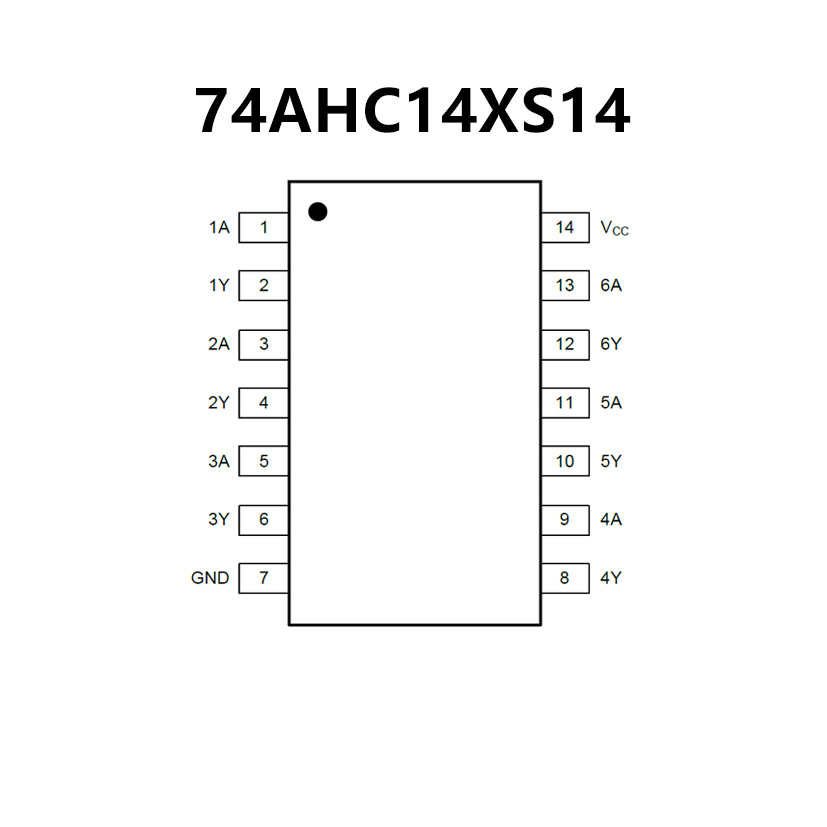

PIN CONFIGUTION
