Hex Inverter with Schmitt Trigger Inputs,74AHC14XS14G Replace TC74HC14AF.
74AHC14XS14G
74AHC14XS14G.pdf
74AHC14XS14G.pdfFEATURES
? Wide Operating Voltage Range: 2.0V to 5.5V
? Inputs Accept Voltages Higher than the Supply
Voltage
? +8mA/-8mA Output Current
? All Inputs with Schmitt Trigger Actions
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

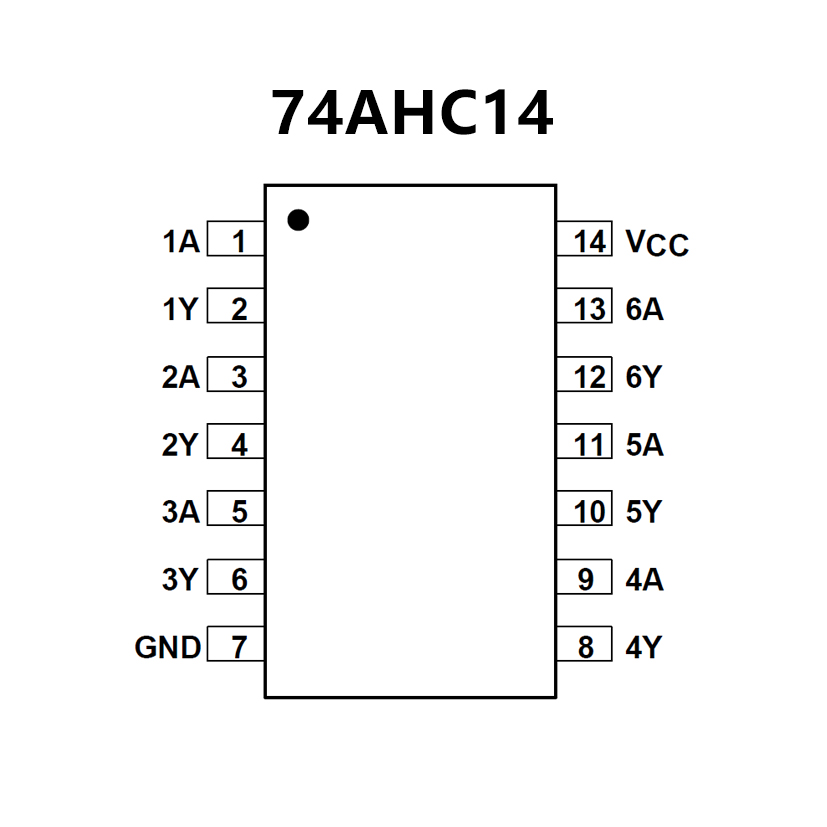

PIN CONFIGUTION
優勢替代
FEATURES
? High speed: tpd = 11 ns (typ.)
at VCC = 5 V
? Low power dissipation:
ICC = 1.0 μA (max) at Ta = 25°C
? High noise immunity:
VH = 1.1 V at VCC = 4.5 V
? Output drive capability: 10 LSTTL loads
? Symmetrical output impedance:
|IOH| = IOL = 4 mA (min)
? Balanced propagation delays: tpLH ?～ tpHL
? Wide operating voltage range:
VCC (opr) = 2.0 to 6.0 V
? Pin and function compatible with 74LS14

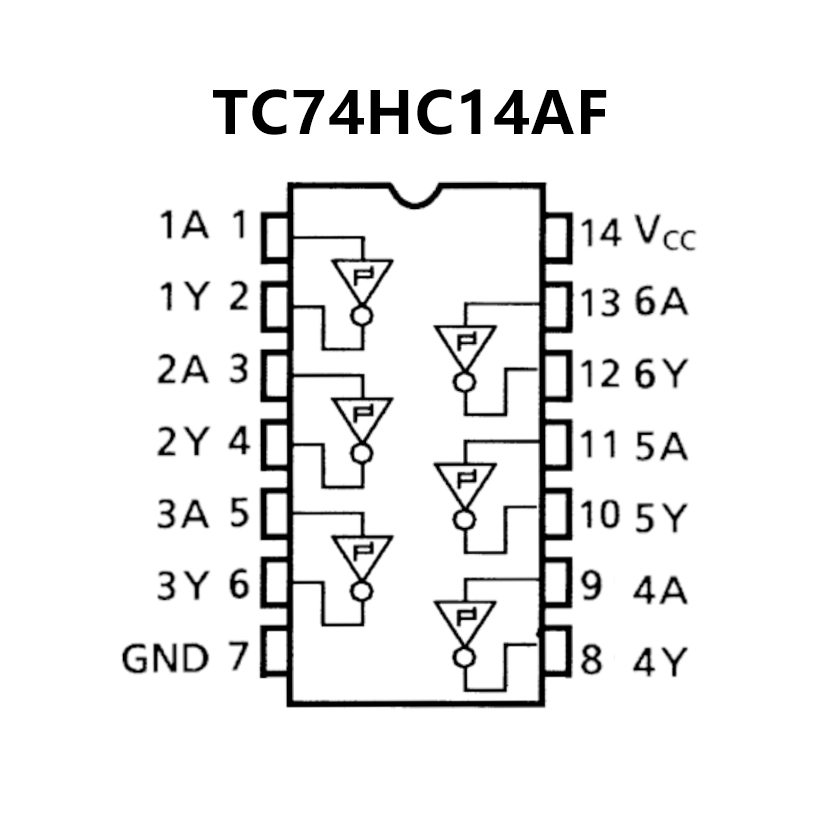

PIN CONFIGUTION
