Hex Inverter with Schmitt Trigger Inputs,74AHC14XS14G Replace U74HC14.
74AHC14XS14G
74AHC14XS14G.pdf
74AHC14XS14G.pdfFEATURES
? Wide Operating Voltage Range: 2.0V to 5.5V
? Inputs Accept Voltages Higher than the Supply Voltage
? +8mA/-8mA Output Current
? All Inputs with Schmitt Trigger Actions
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

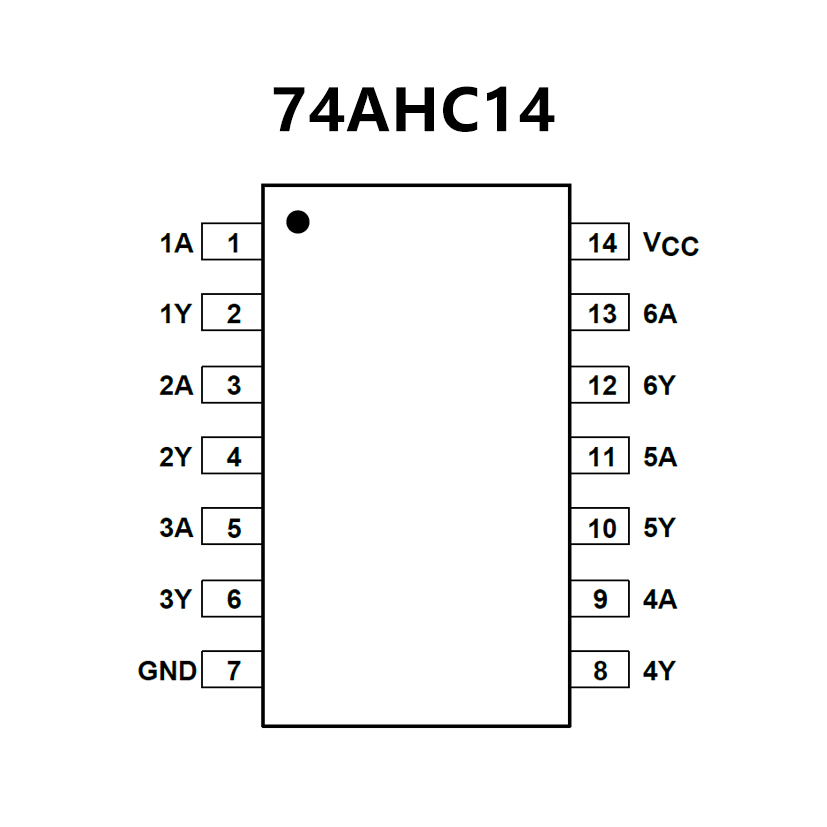

PIN CONFIGUTION
優勢替代
FEATURES
? Widely range of input rise and fall time
? high noise immunity
? Fan-out parameters(over temperature range)
up to 10 LSTTL Loads
? Low power consumption
? Wide range operation 2V ~ 6V

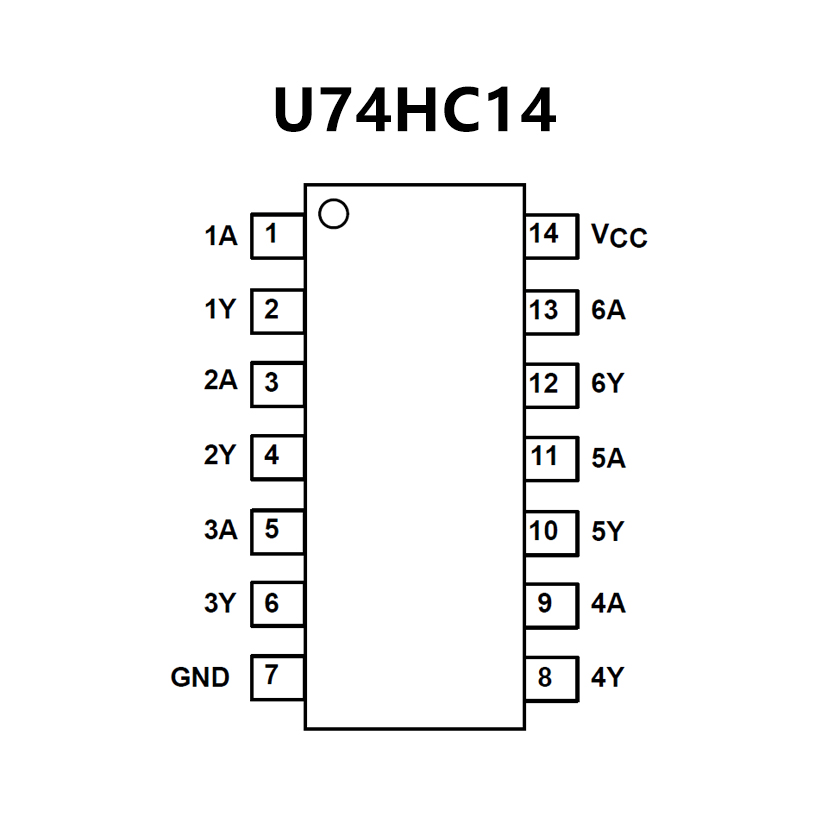

PIN CONFIGUTION
