Hex Inverter with Schmitt Trigger Inputs, 74AHC14XS14G/TR Replace 74HC14D-653.
74AHC14
74AHC14.pdf
74AHC14.pdfFEATURES
? Wide Operating Voltage Range: 2.0V to 5.5V
? Inputs Accept Voltages Higher than the Supply
Voltage
? +8mA/-8mA Output Current
? All Inputs with Schmitt Trigger Actions
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

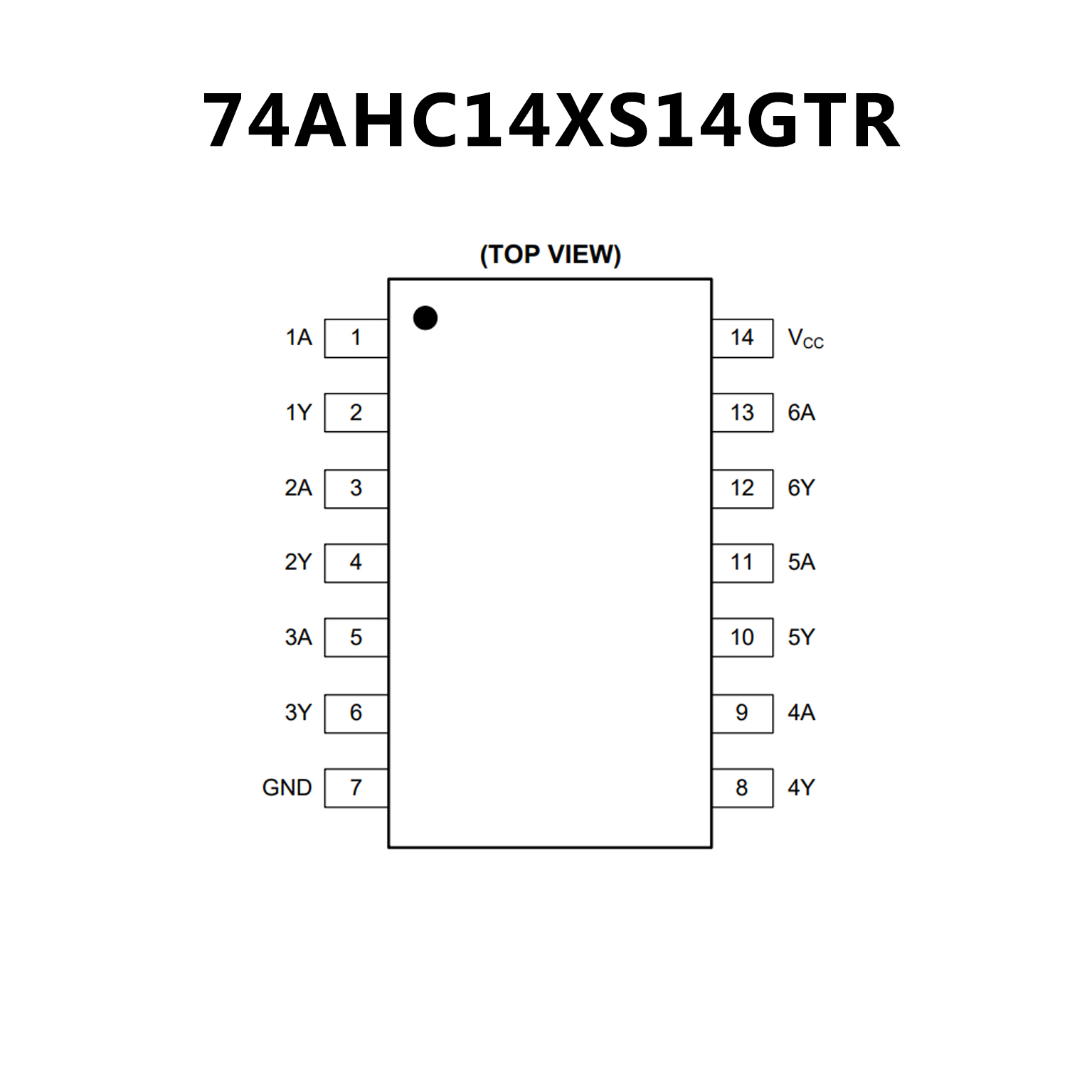

PIN CONFIGUTION
優勢替代
FEATURES
? Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
? Complies with JEDEC standard no. 7A
? Low-power dissipation
? ESD protection:
MIL-STD-883, method 3015 exceeds 2000 V
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0Ω)
? Multiple package options

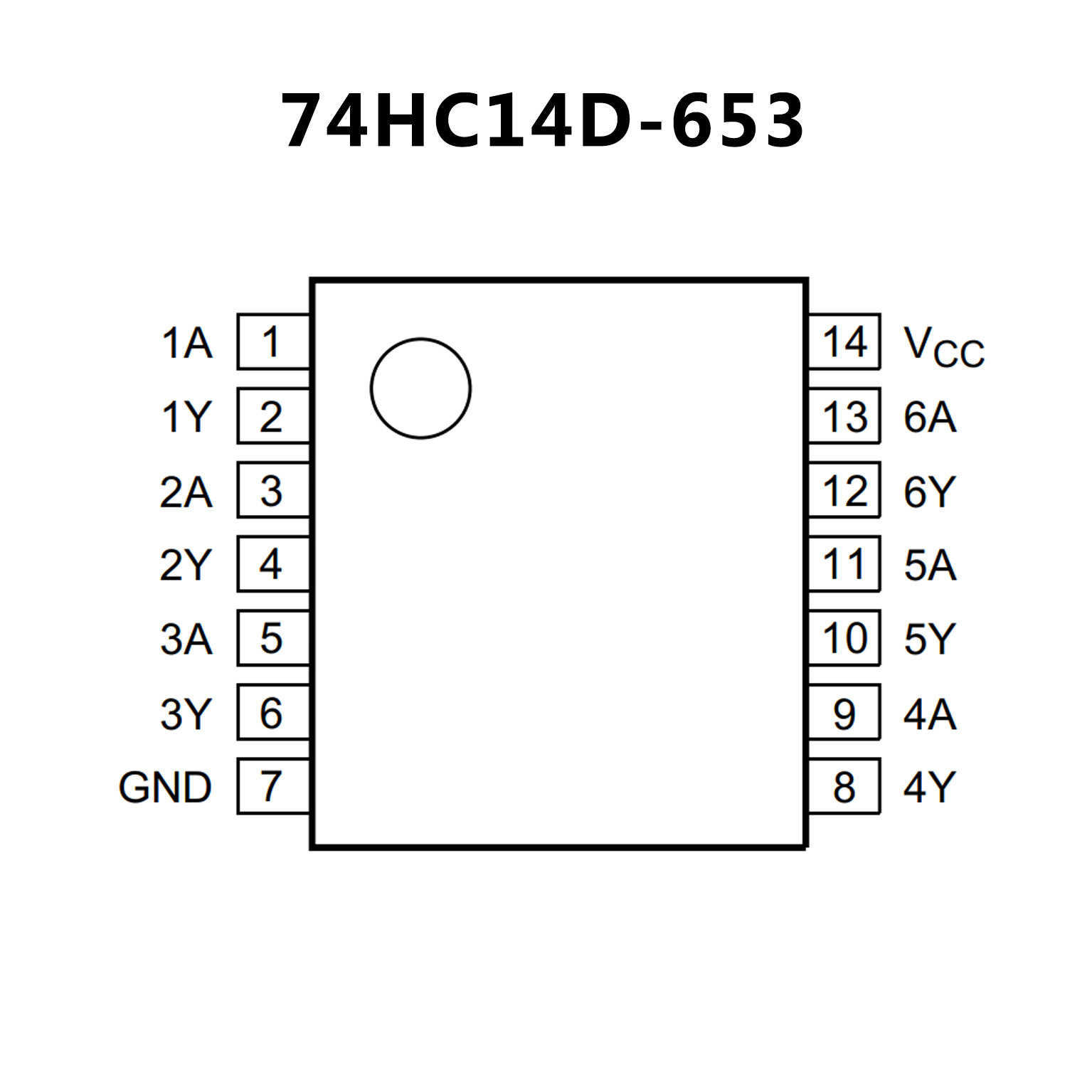

PIN CONFIGUTION
