Hex Inverterwith Schmitt Trigger Inputs, 74AHC14XS14G/TR Replace 74HC14D.
74AHC14
74AHC14.pdf
74AHC14.pdfFEATURES
? Wide Operating Voltage Range: 2.0V to 5.5V
? Inputs Accept Voltages Higher than the Supply
Voltage
? +8mA/-8mA Output Current
? All Inputs with Schmitt Trigger Actions
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

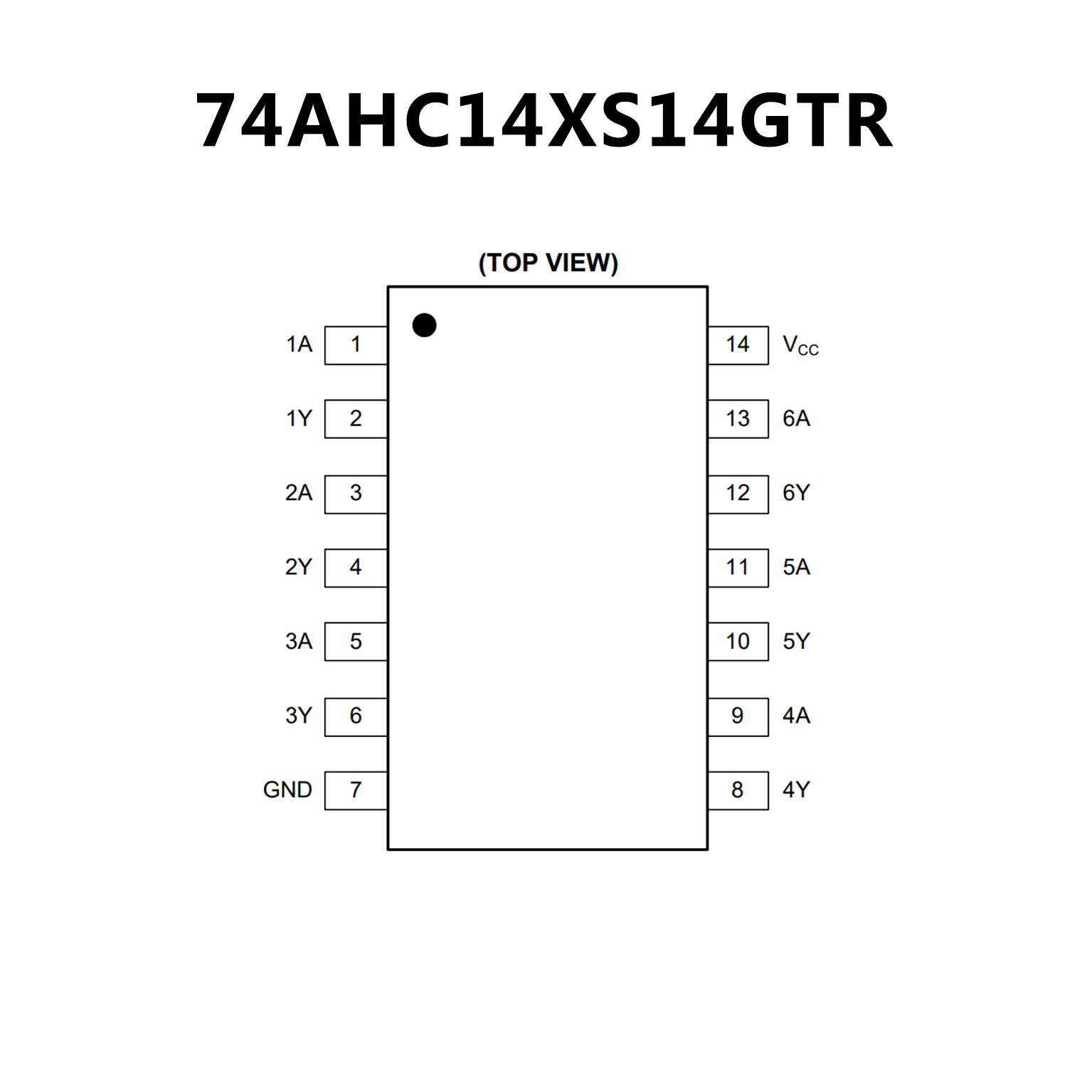

PIN CONFIGUTION
優勢替代
FEATURES
? Wide supply voltage range from 2.0 to 6.0 V
? CMOS low power dissipation
? High noise immunity
? Unlimited input rise and fall times
? Latch-up performance exceeds 100 mA per
JESD 78 Class II Level B
? Complies with JEDEC standards:
JESD8C (2.7 V to 3.6 V)
JESD7A (2.0 V to 6.0 V)
? ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
? Multiple package options
? Specified from -40 °C to +85 °C and from -40 °C to +125 °C

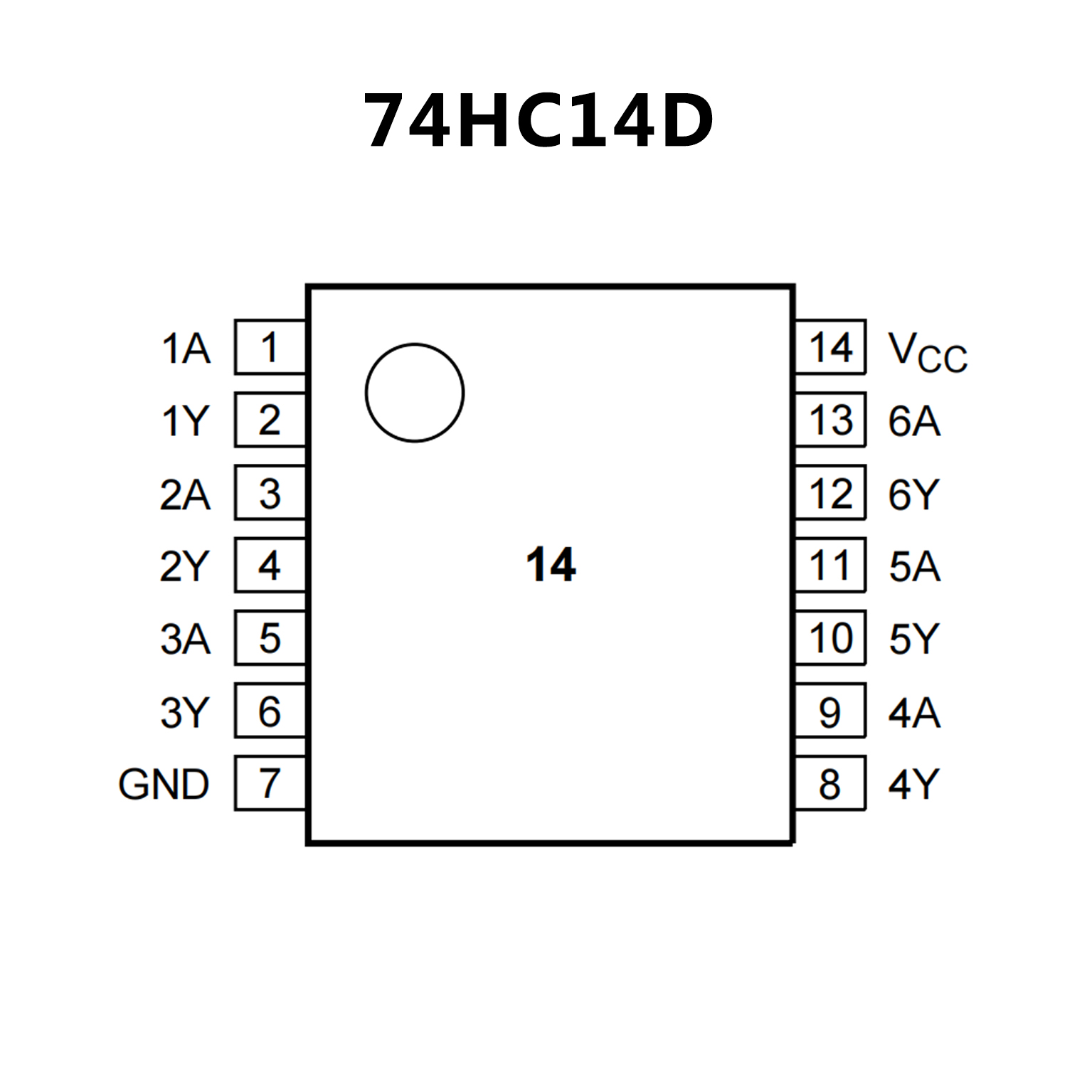

PIN CONFIGUTION
