Hex Inverter with Schmitt Trigger Inputs,74AHC14XS14GTR-Replace-74LVC14AD-118.
74AHC14XS14GTR
74AHC14XS14GTR.pdf
74AHC14XS14GTR.pdfFEATURES
? Wide Operating Voltage Range: 2.0V to 5.5V
? Inputs Accept Voltages Higher than the Supply Voltage
? +8mA/-8mA Output Current
? All Inputs with Schmitt Trigger Actions
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

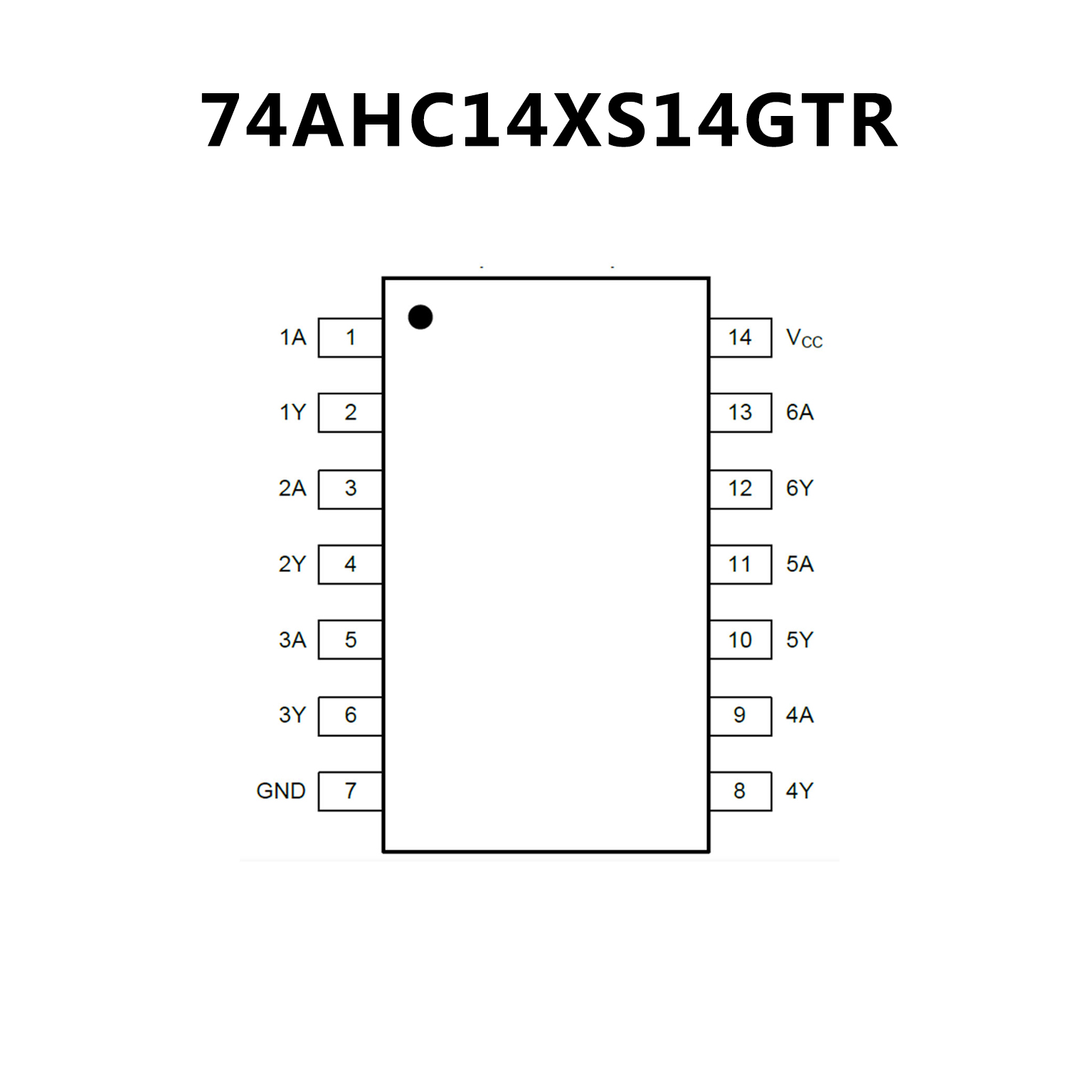

PIN CONFIGUTION
優勢替代
FEATURES
? Wide supply voltage range from 1.2 V to 3.6 V
? Overvoltage tolerant inputs to 5.5 V
? CMOS low-power consumption
? Direct interface with TTL levels
? Unlimited input rise and fall times
? Complies with JEDEC standard JESD8-C/JESD36 (2.7 V to 3.6 V)
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-B exceeds 200 V
? CDM JESD22-C101E exceeds 1000 V
? Multiple package options
? Specified from -40 °C to +85 °C and from -40 °C to +125 °C

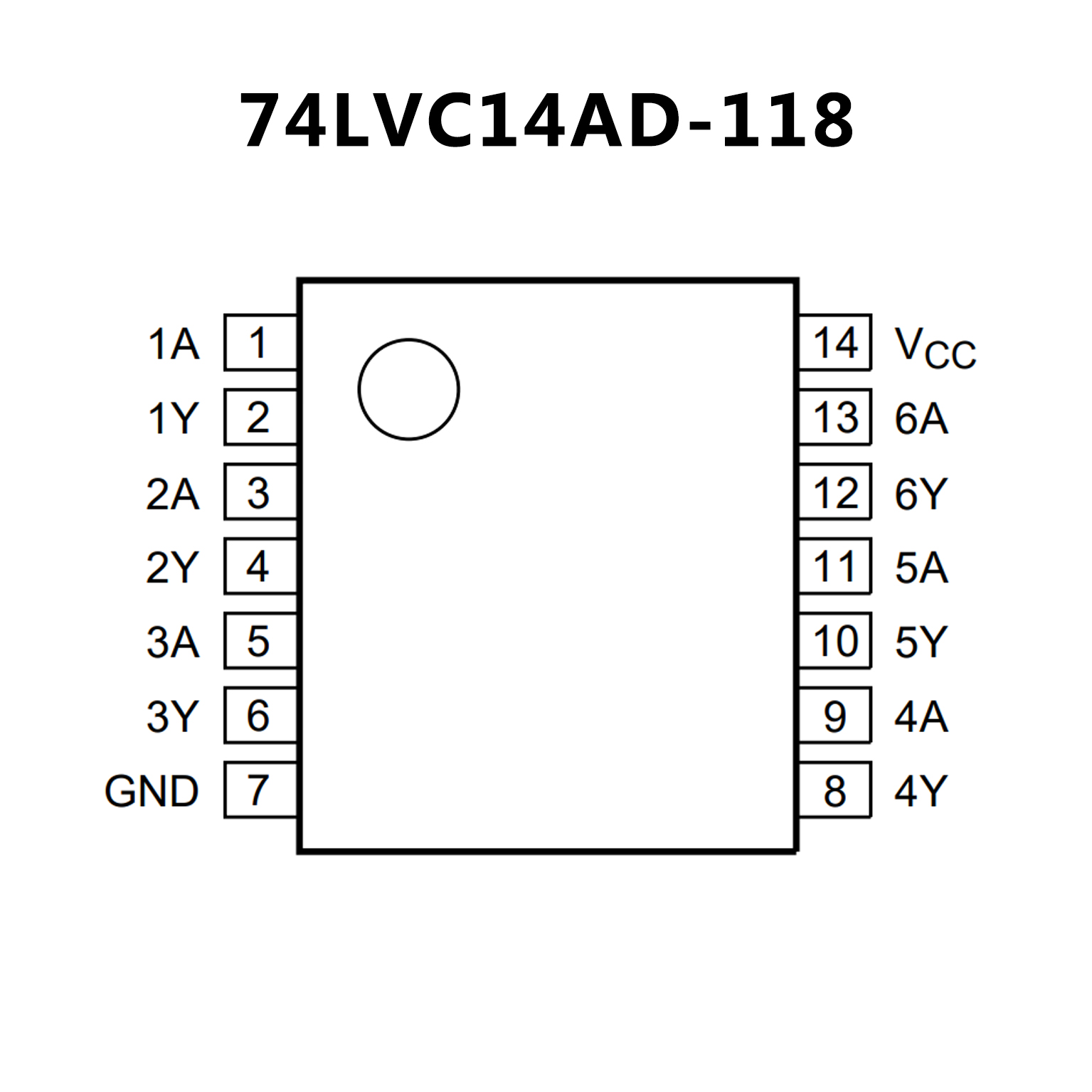

PIN CONFIGUTION
