Octal buffer/line driver; 3 state，74AHC541XS20G Replace 74AHC541D
74AHC541XS20G.pdf優勢替代
FEATURES
? Balanced propagation delays
? All inputs have a Schmitt-trigger action
? Inputs accepts voltages higher than VCC
? For 74AHC541 only: operates with CMOS input levels
? For 74AHCT541 only: operates with TTL input levels
? ESD protection:
? HBM JESD22-A114E exceeds 2000 V
? MM JESD22-A115-A exceeds 200 V
? CDM JESD22-C101C exceeds 1000 V
? Multiple package options
? Specified from -40 °C to +85 °C and from -40 °C to +125 °C

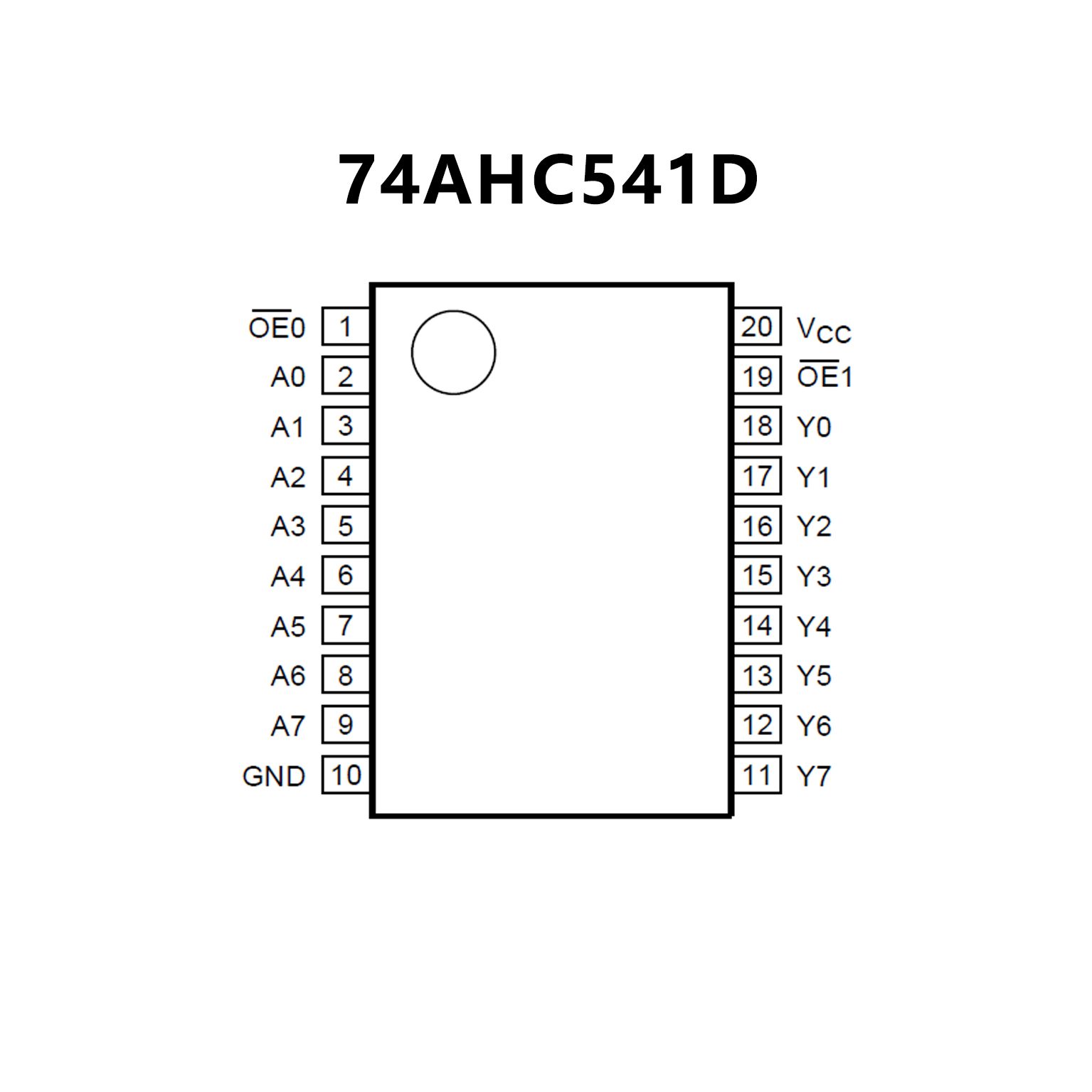

PIN CONFIGUTION
