8 Bit Serial In/Serial Out or Parallel Out Shift Register with Output Latches, Replace SN74HC595.
74AHC595
74AHC595.pdf
74AHC595.pdfFEATURES
? Balanced Propagation Delays
? All Inputs Have Schmitt-Trigger Action
? Inputs Accept Voltages Higher than VCC
? Operates with CMOS Input Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-16 Package

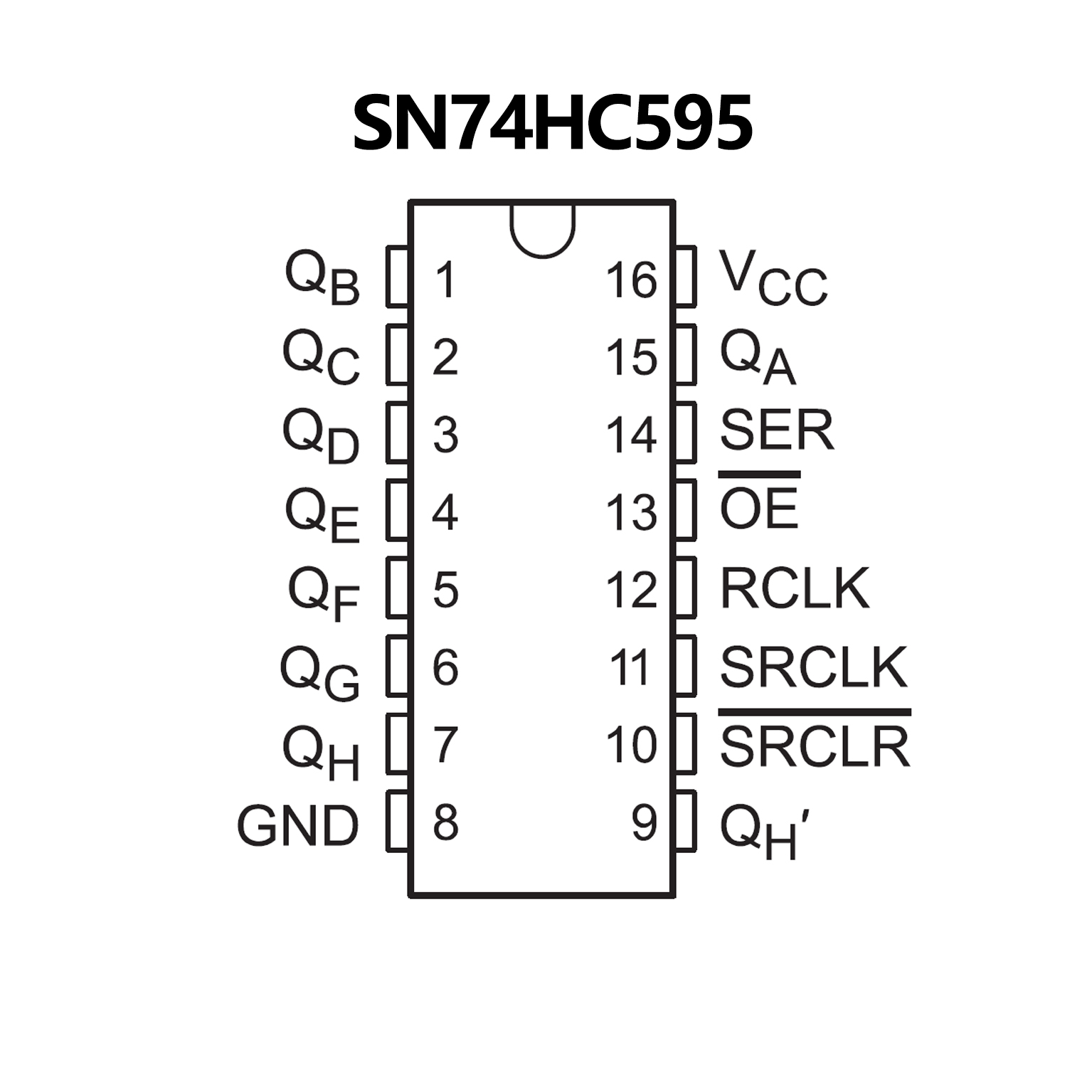

PIN CONFIGUTION
優勢替代
FEATURES
? 8-bit serial-in, parallel-out shift
? Wide operating voltage range of 2 V to 6 V
? High-current 3-state outputs can drive up to 15
LSTTL loads
? Low power consumption: 80-μA (maximum) ICC
? tpd = 13 ns (typical)
? ±6-mA output drive at 5 V
? Low input current: 1 μA (maximum)
? Shift register has direct clear
? On products compliant to MIL-PRF-38535,
all parameters are tested unless otherwise noted.
On all other products, production processing does
not necessarily include testing of all parameters.

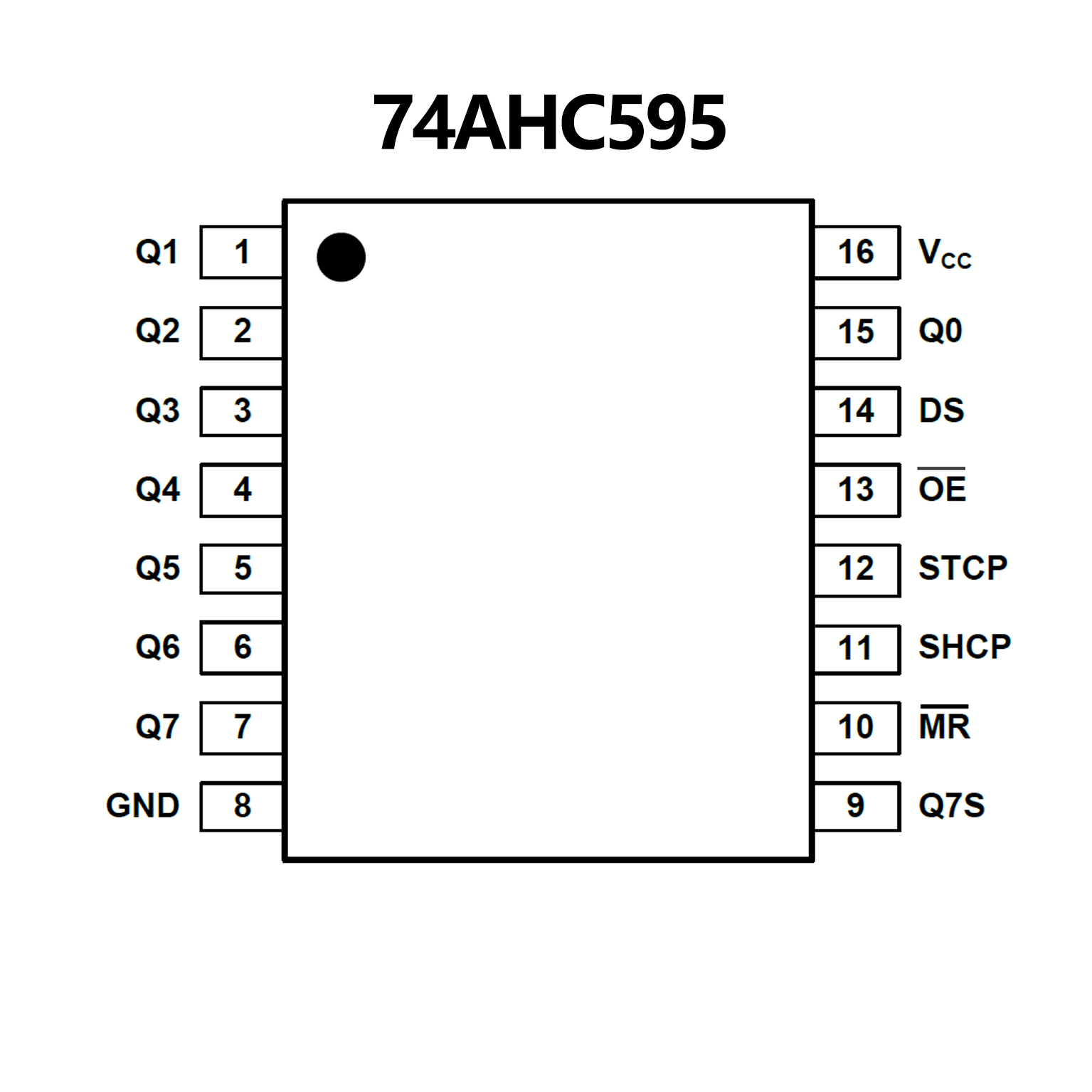

PIN CONFIGUTION
