8-Bit Serial-In/Serial-Out or Parallel-Out Shift Register with Output Latches,74AHC595-Replace-74HC595PW.
74AHC595
74AHC595.pdf
74AHC595.pdfFEATURES
? Balanced Propagation Delays
? All Inputs Have Schmitt-Trigger Action
? Inputs Accept Voltages Higher than VCC
? Operates with CMOS Input Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-16 Package

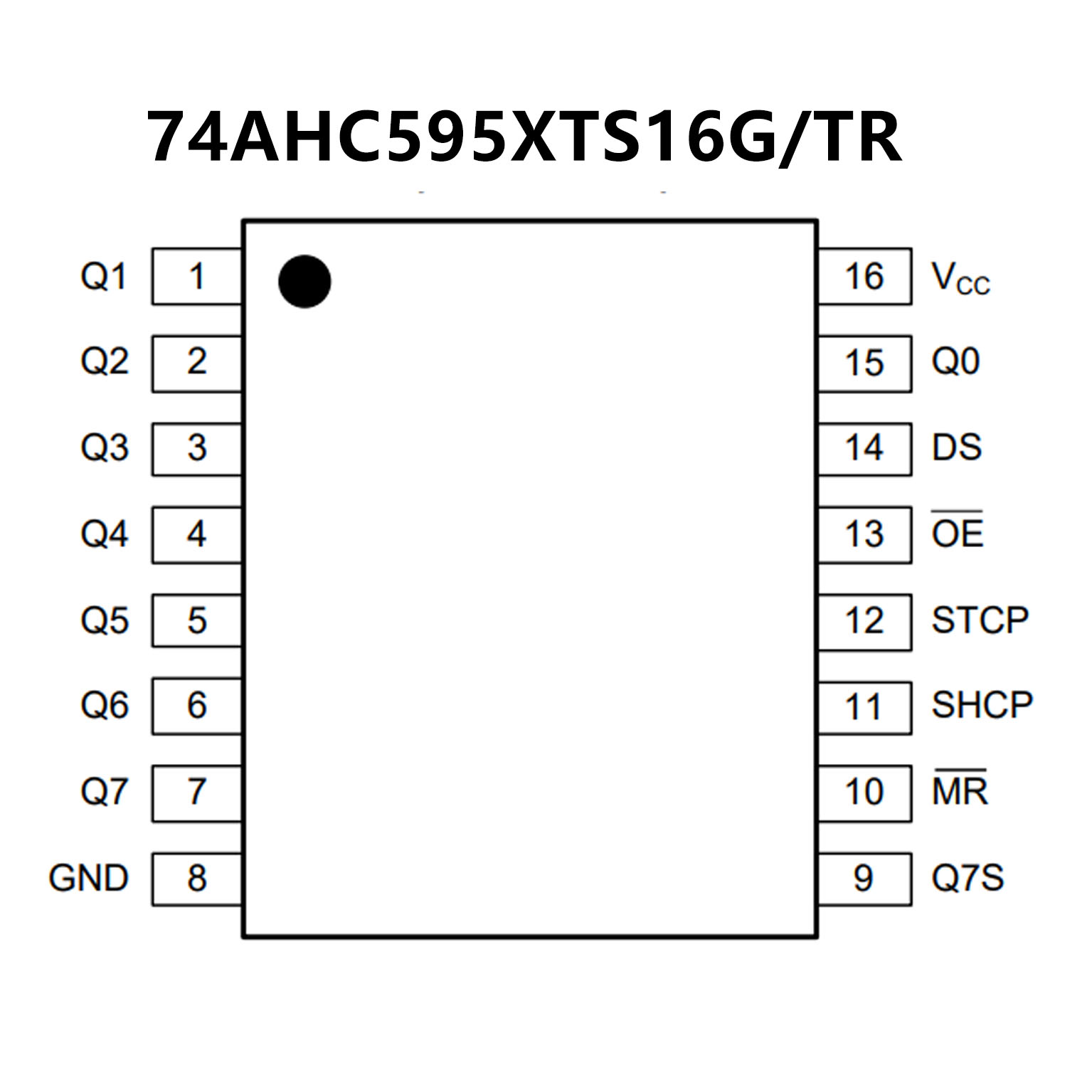

PIN CONFIGUTION
優勢替代
FEATURES
? 8-bit serial input
? 8-bit serial or parallel output
? Storage register with 3-state outputs
? Shift register with direct clear
? 100 MHz (typical) shift out frequency
? Complies with JEDEC standard no. 7A
? Input levels:
For 74HC595: CMOS level
For 74HCT595: TTL level
? ESD protection:
HBM JESD22-A114F exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
? Multiple package options
? Specified from -40 °C to +85 °C and from -40 °C to +125 °C

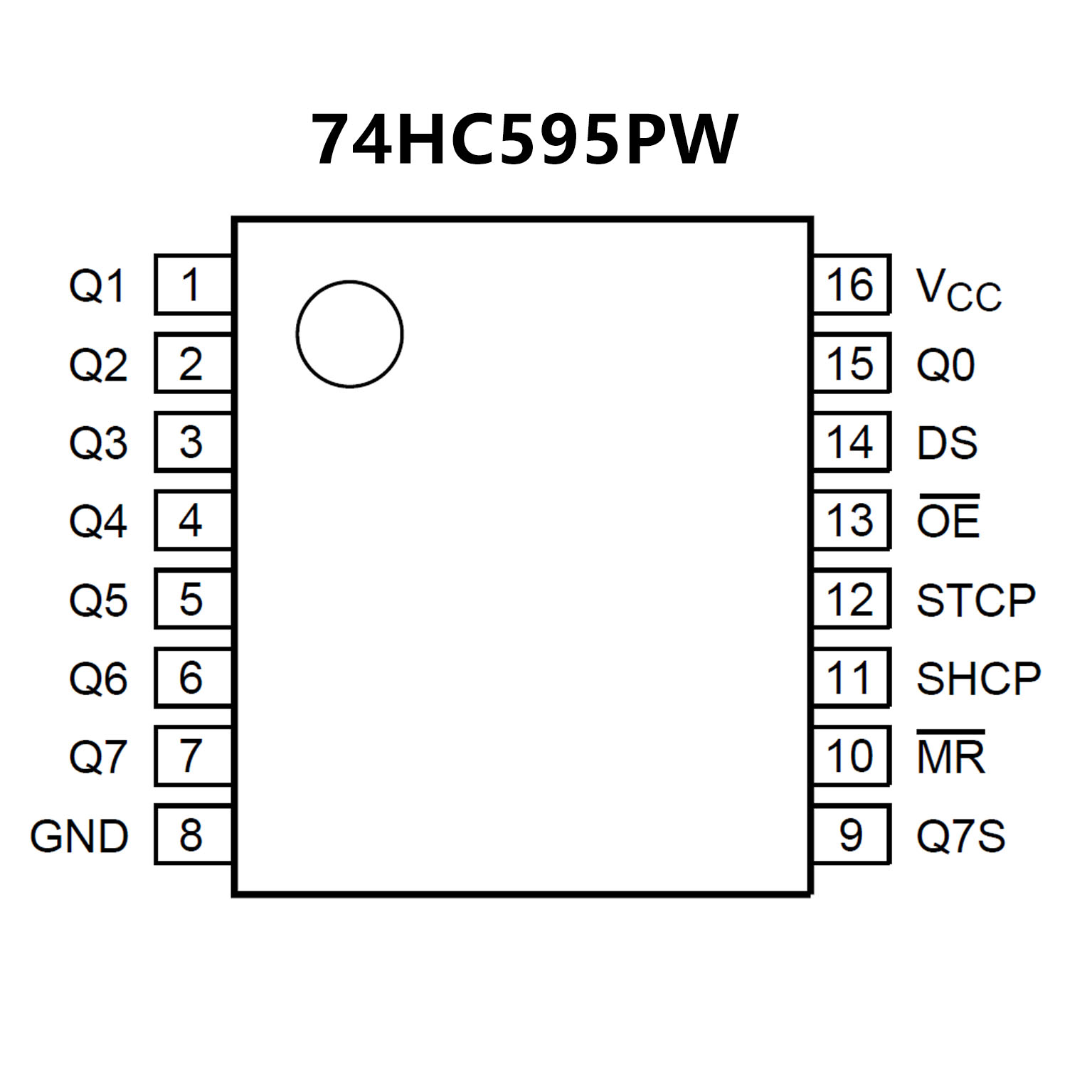

PIN CONFIGUTION
