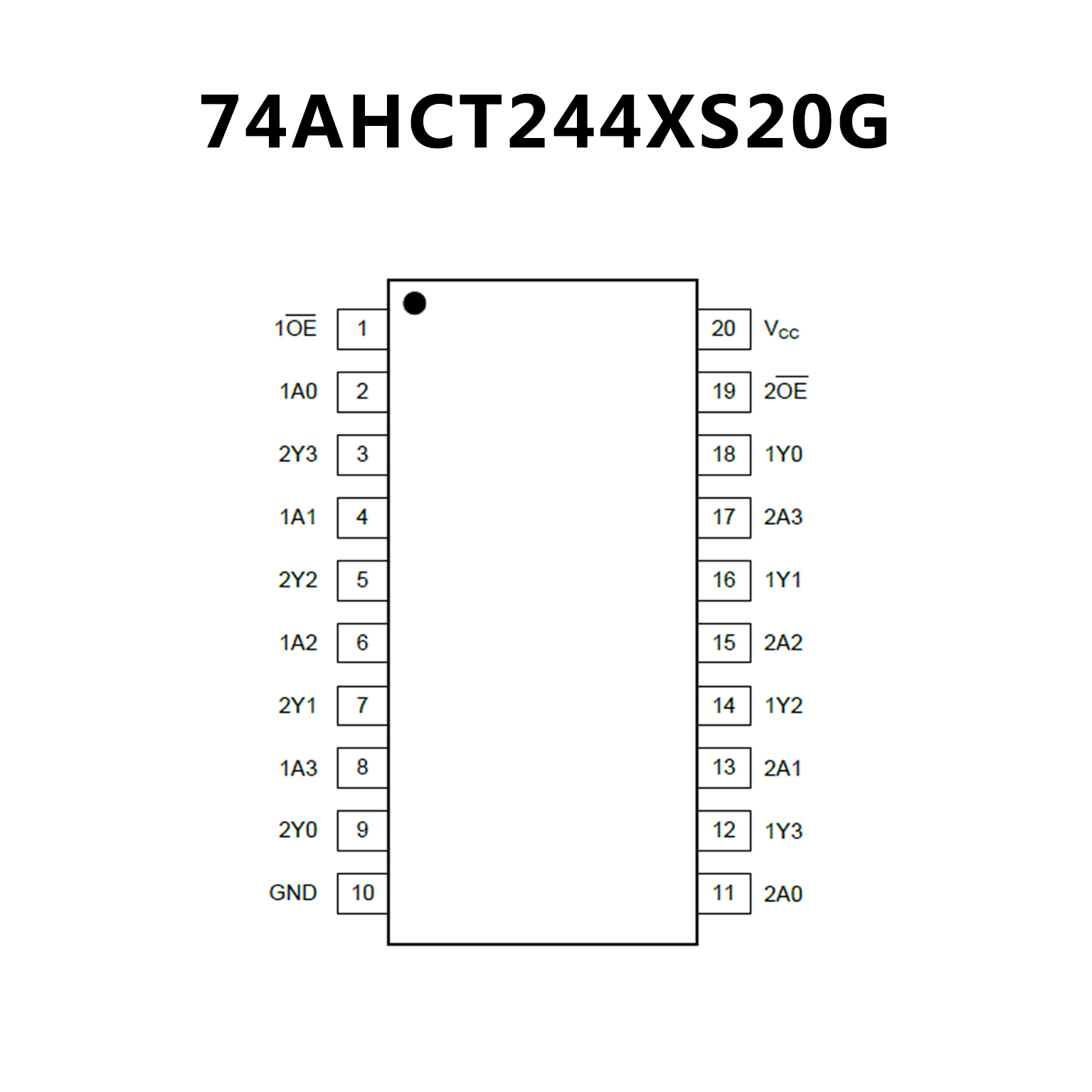

74AHCT244XS20G.pdf? Supply Voltage Range: 4.5V to 5.5V
? Input Accept Voltages Higher than the Supply Voltage
? +8mA/-8mA Output Current
? 3-State Buffers
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-20 Package

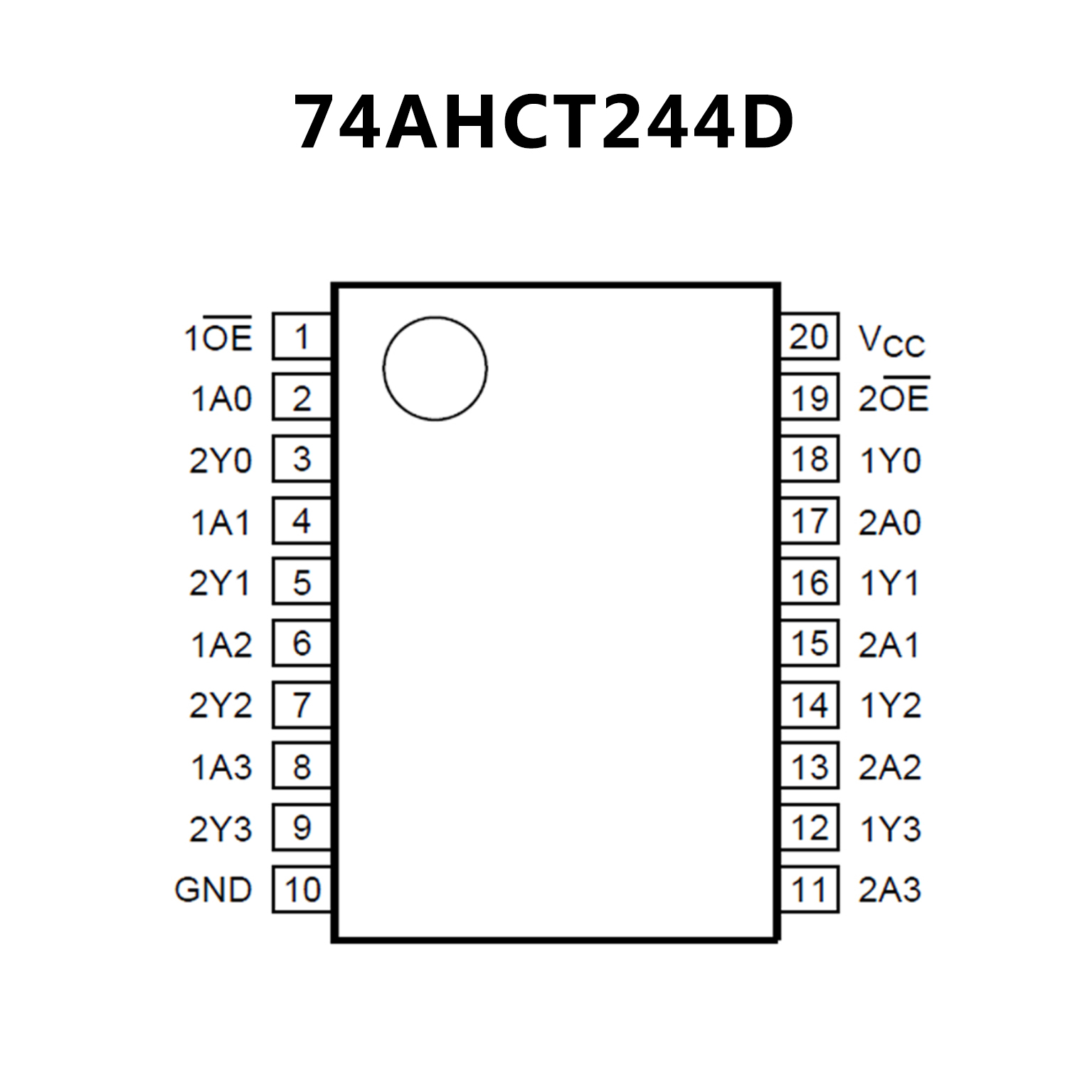

? Wide supply voltage range from 2.0 V to 5.5 V
? Balanced propagation delays
? All inputs have Schmitt-trigger action
? Overvoltage tolerant inputs to 5.5 V
? High noise immunity
? CMOS low power dissipation
? Input levels:
? For 74AHC244: CMOS level
? For 74AHCT244: TTL level
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-A exceeds 200 V
? CDM JESD22-C101E exceeds 1000 V
? Latch-up performance exceeds
100 mA per JESD 78 Class II Level A
? Multiple package options
? Specified from -40 °C to +85 °C
and from -40 °C to +125 °C
