Low power buffer with open drain output, 74AUP1G07 Replace 74AUP1G07GW.
FEATURES

? Wide Supply Voltage Range: 0.8V to 3.6V

? Inputs Accept Voltages Higher than the Supply

  Voltage

? 4mA Output Current

? Low Quiescent Current: ICC = 0.1μA (TYP)

? Low Dynamic Power Dissipation:

  CPD = 2.5pF at VCC = 3.3V (TYP)

? Input with Schmitt-Trigger

? Support Partial Power-Down Mode

? -40℃ to +125℃ Operating Temperature Range

? Available in Green SC70-5, SOT-23-5 and

  UTDFN-1.45×1-6AL Packages

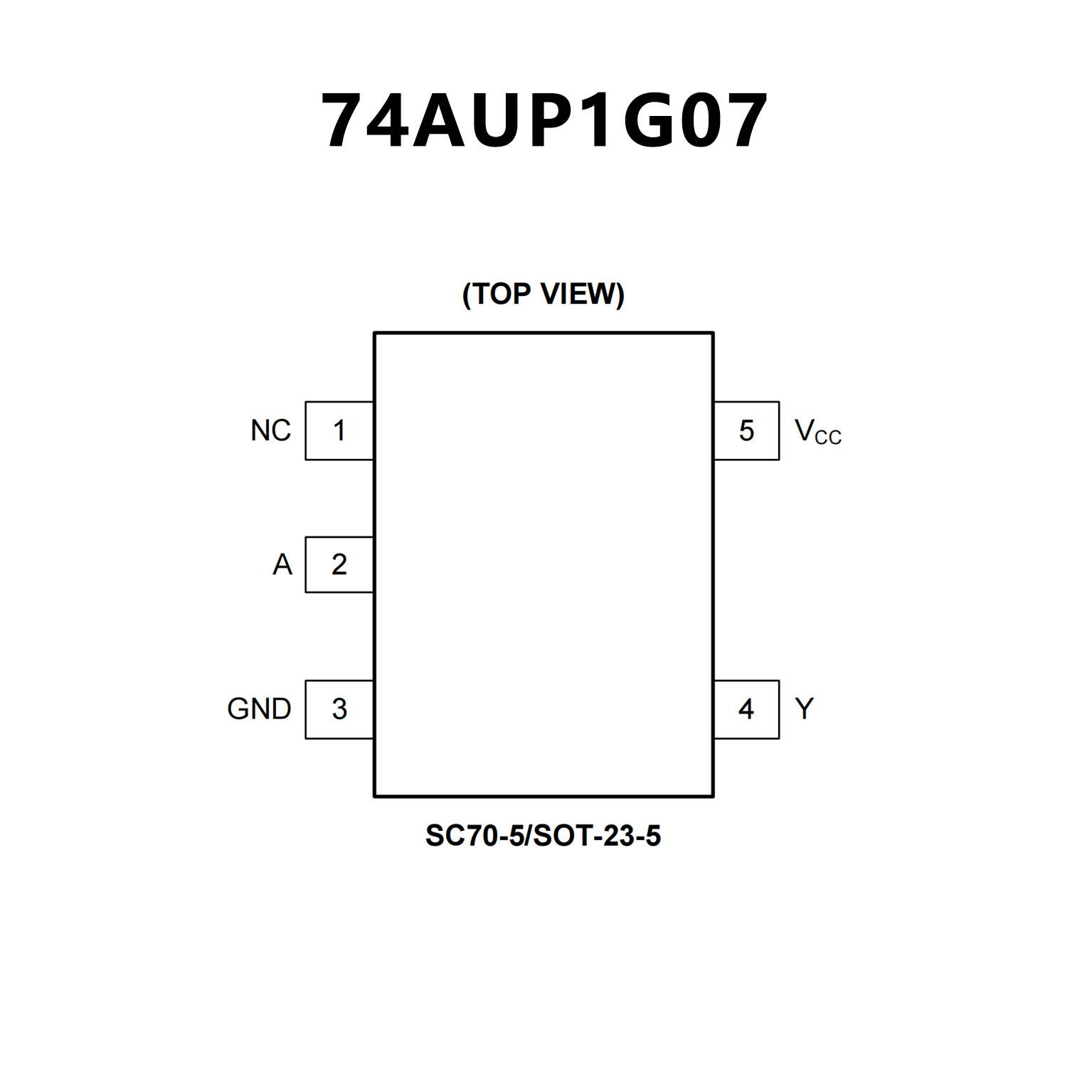

PIN CONFIGUTION
優勢替代
74AUP1G07GW 74AUP1G07GW.pdf

No.13724

FEATURES

? Wide supply voltage range from 0.8 V to 3.6 V

? High noise immunity

? CMOS low power dissipation

? Complies with JEDEC standards:

? JESD8-12 (0.8 V to 1.3 V)

? JESD8-11 (0.9 V to 1.65 V)

? JESD8-7 (1.65 V to 1.95 V)

? JESD8-5 (2.3 V to 2.7 V)

? JESD8C (2.7 V to 3.6 V)

? ESD protection:

? HBM: ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 5000 V

? CDM: ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 1000 V

? MM: JESD22-A115-A exceeds 200 V

? Low static power consumption; ICC = 0.9 μA (maximum)

? Latch-up performance exceeds 100 mA per JESD 78 Class II

? Overvoltage tolerant inputs to 3.6 V

? Low noise overshoot and undershoot < 10 % of VCC

? IOFF circuitry provides partial Power-down mode operation

? Multiple package options

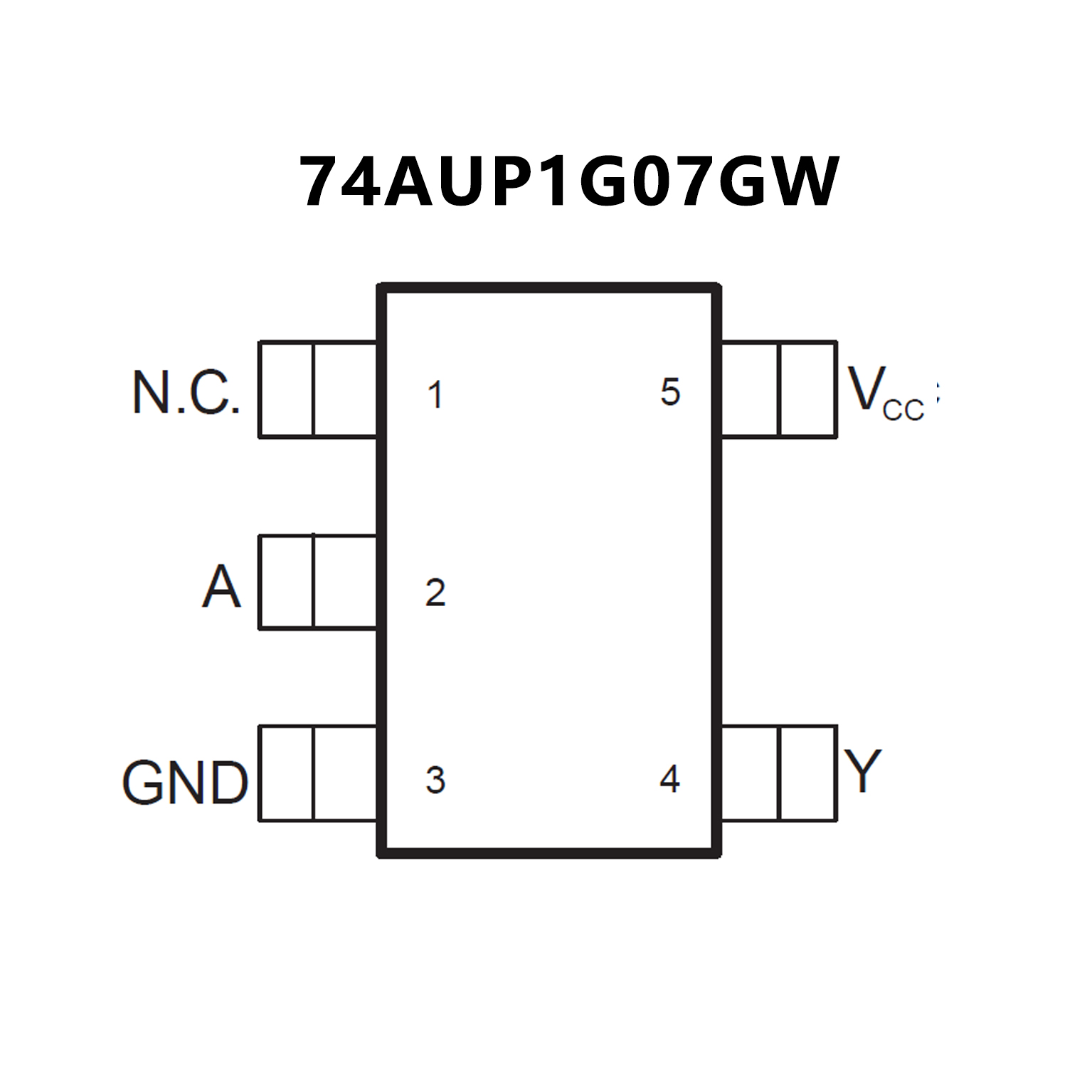

PIN CONFIGUTION
