Low Power Single Buffer/Driver With Open Drain Outputs,Replace SN74AUP1G07
FEATURES

? Wide Supply Voltage Range: 0.8V to 3.6V

? Inputs Accept Voltages Higher than the Supply

  Voltage

? 4mA Output Current

? Low Quiescent Current: ICC = 0.1μA (TYP)

? Low Dynamic Power Dissipation:

  CPD = 2.5pF at VCC = 3.3V (TYP)

? Input with Schmitt-Trigger

? Support Partial Power-Down Mode

? -40℃ to +125℃ Operating Temperature Range

? Available in Green SC70-5, SOT-23-5 and

  UTDFN-1.45×1-6AL Packages













PIN CONFIGUTION
優勢替代
SN74AUP1G07 SN74AUP1G07.pdf

No.13723

FEATURES

? Available in the Ultra Small 0.64 mm2 Package

? (DPW) with 0.5-mm Pitch

? Low Static-Power Consumption

? (ICC = 0.9 μA Maximum)

? Low Dynamic-Power Consumption

? (Cpd = 1 pF Typical at 3.3 V)

? Low Input Capacitance (Ci = 1.5 pF Typical)

? Low Noise – Overshoot and

  Undershoot<10% of VCC

? Ioff Supports Live Insertion, Partial-

  Power-Down Mode, and Back-Drive Protection

? Input Hysteresis Allows Slow Input Transition and

  Better Switching Noise Immunity at the Input

  (Vhys = 250 mV Typ at 3.3 V)

? Wide Operating VCC Range of 0.8 V to 3.6 V

? Optimized for 3.3-V Operation

? 3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation

? tpd = 3.3 ns Maximum at 3.3 V

? Suitable for Point-to-Point Applications

? Latch-Up Performance Exceeds 100 mA

  Per JESD 78, Class II

? ESD Performance Tested Per JESD 22

  2000-V Human-Body Model(A114-B, Class II)

  1000-V Charged-Device Model (C101)

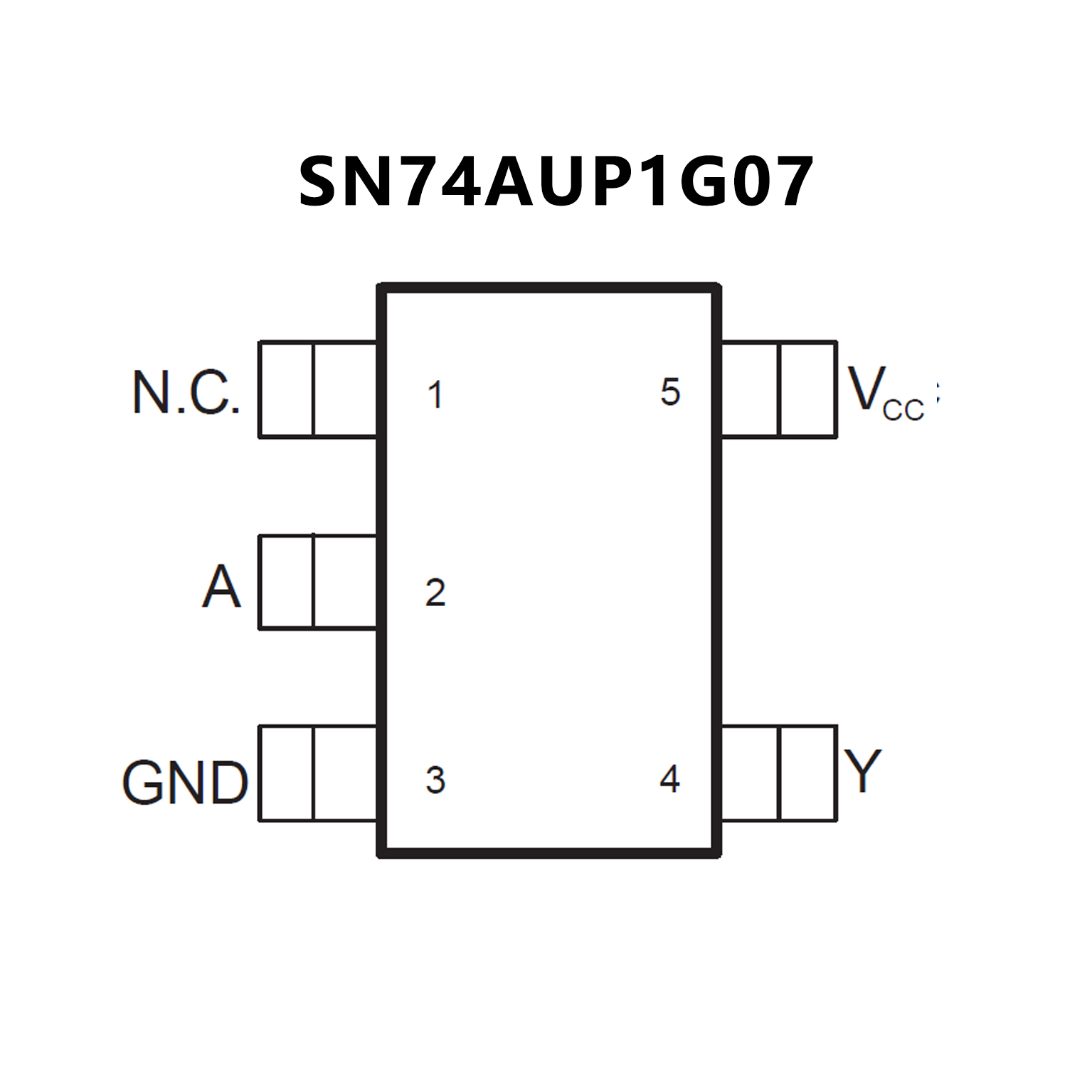

PIN CONFIGUTION
