74AVC8T245Q.pdf? AEC-Q100 Qualified for Automotive Applications
Device Temperature Grade 1
TA = -40℃ to +125℃
? VCCA Supply Voltage Range: 0.8V to 3.6V
? VCCB Supply Voltage Range: 0.8V to 3.6V
? Inputs Accept Voltages up to 3.6V
? +12mA/-12mA Output Current
? Data Rates:
380Mbps (≥ 1.8V to 3.3V Translation)
260Mbps (≥ 1.1V to 3.3V Translation)
260Mbps (≥ 1.1V to 2.5V Translation)
210Mbps (≥ 1.1V to 1.8V Translation)
150Mbps (≥ 1.1V to 1.5V Translation)
100Mbps (≥ 1.1V to 1.2V Translation)
? Outputs in High-Impedance State when VCCA or
VCCB = 0V
? -40℃ to +125℃ Operating Temperature Range

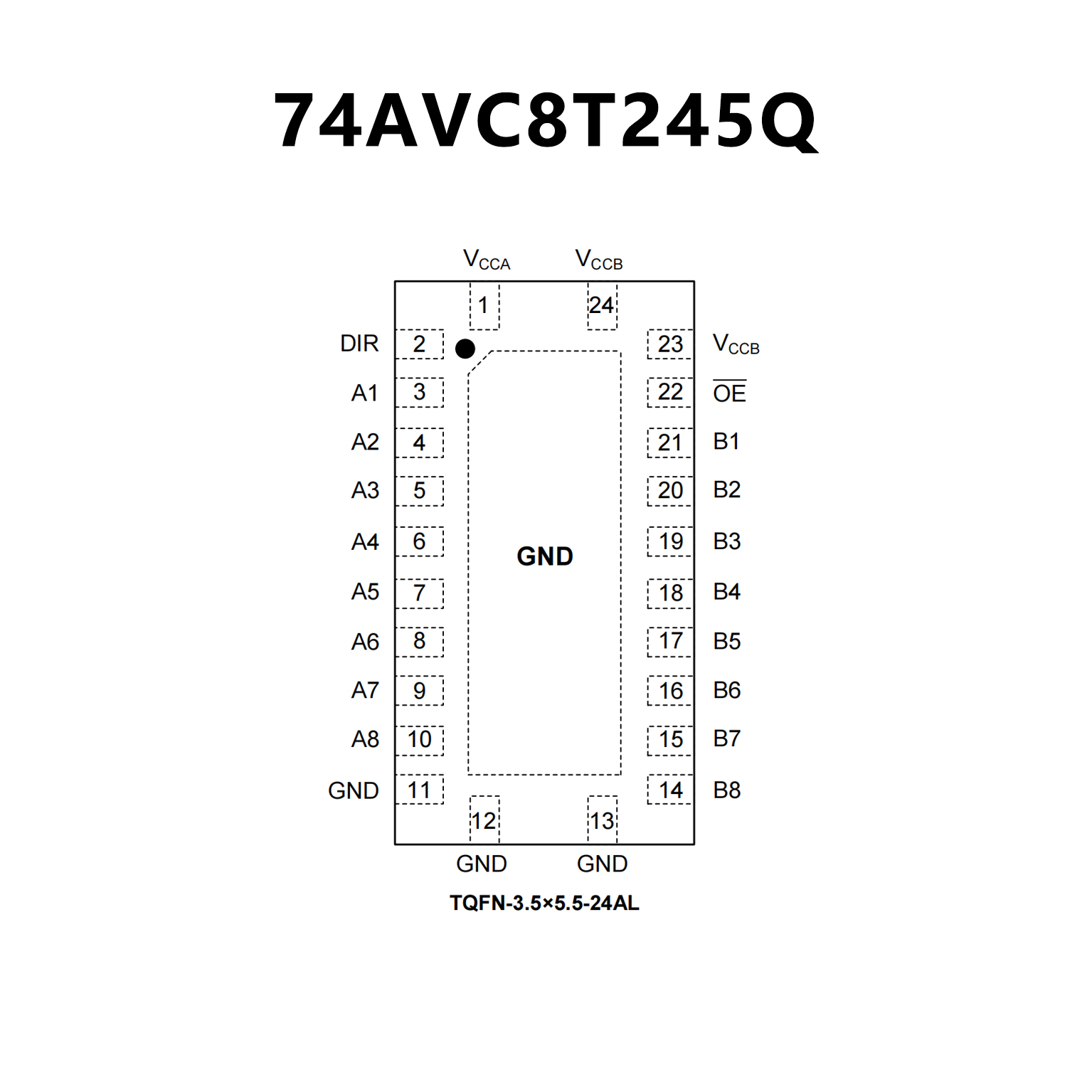

? ;Available in a Green TQFN-3.5×5.5-24AL Package
? Automotive product qualification in
accordance with AEC-Q100 (Grade 1)
? Specified from -40 °C to +85 °C and from -40 °C to +125 °C
? Wide supply voltage range: VCC(A): 0.8
V to 3.6 V; VCC(B): 0.8 V to 3.6 V
? Complies with JEDEC standards:
? JESD8-12 (0.8 V to 1.3 V)
? JESD8-11 (0.9 V to 1.65 V)
? JESD8-7 (1.2 V to 1.95 V)
? JESD8-5 (1.8 V to 2.7 V)
? JESD8-B (2.7 V to 3.6 V)
? ESD protection:
? MIL-STD-883, method 3015 class 3B exceeds 8000 V
? HBM JESD22-A114E class 3B exceeds 8000 V
? MM JESD22-A115-A exceeds 200 V (C = 200 pF, R = 0 Ω)
? Maximum data rates:
? 380 Mbit/s (≥ 1.8 V to 3.3 V translation)
? 260 Mbit/s (≥ 1.1 V to 3.3 V translation)
? 260 Mbit/s (≥ 1.1 V to 2.5 V translation)
? 210 Mbit/s (≥ 1.1 V to 1.8 V translation)
? 150 Mbit/s (≥ 1.1 V to 1.5 V translation)
? 100 Mbit/s (≥ 1.1 V to 1.2 V translation)
? Suspend mode
? Latch-up performance exceeds 100 mA per JESD 78 Class II
? Inputs accept voltages up to 3.6 V
? IOFF circuitry provides partial Power-down mode operation
? Multiple package options

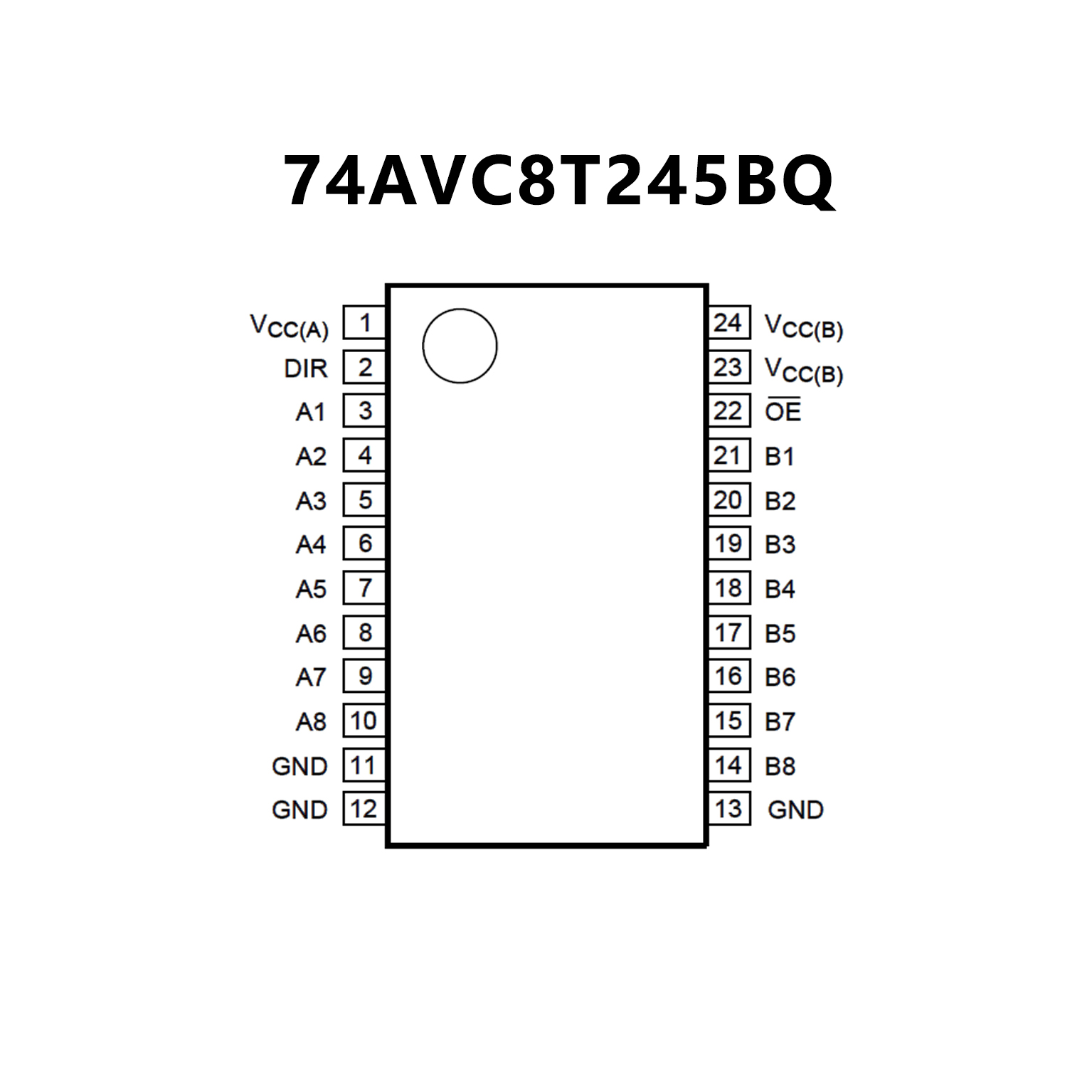

? DHVQFN package with Side-Wettable Flanks
enabling Automatic Optical Inspection (AOI) of solder joints
