Single 2-Input Translating AND Gate,74LV1T08XC5G Replace SN74AHCT1G08.
74LV1T08XC5G
74LV1T08XC5G.pdf
74LV1T08XC5G.pdfFEATURES
? Single Supply Voltage Translator at
1.8V, 2.5V,3.3V and 5.0V
? Up Translation:
1.2V to 1.8V at VCC = 1.8V
1.5V to 2.5V at VCC = 2.5V
1.8V to 3.3V at VCC = 3.3V
3.3V to 5.0V at VCC = 5.0V
? Down Translation:
3.3V to 1.8V at VCC = 1.8V
3.3V to 2.5V at VCC = 2.5V
5.0V to 3.3V at VCC = 3.3V
? 5V Tolerant Inputs
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-5 Package

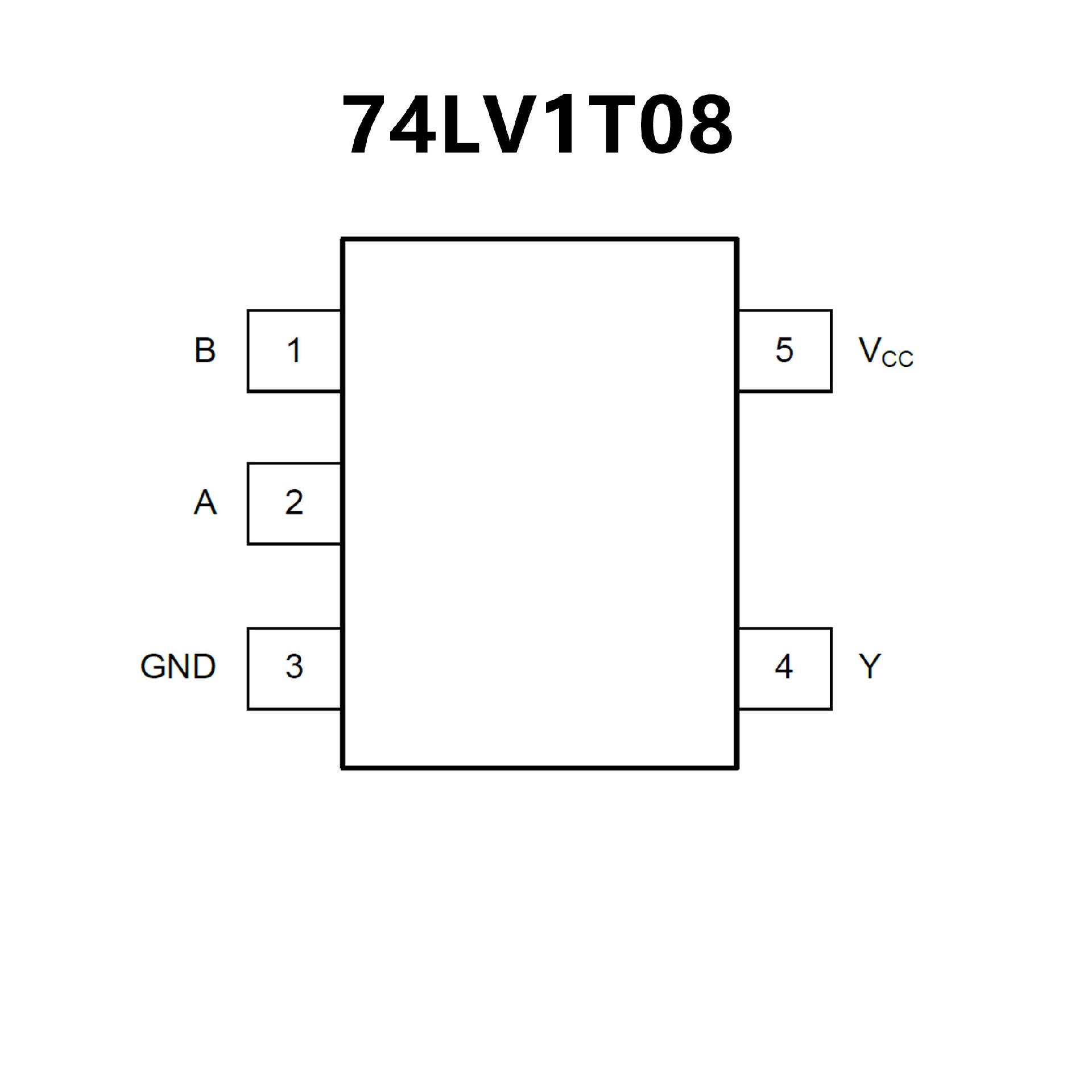

PIN CONFIGUTION
優勢替代
FEATURES
? Operating Range: 4.5 V to 5.5 V
? Maximum tpd of 7.1 ns at 5 V
? Low Power Consumption: Maximum ICC of 10-μA
? ±8-mA Output Drive at 5 V
? Inputs Are TTL-Voltage Compatible
? Latch-Up Performance Exceeds 250 mA
Per JESD 17

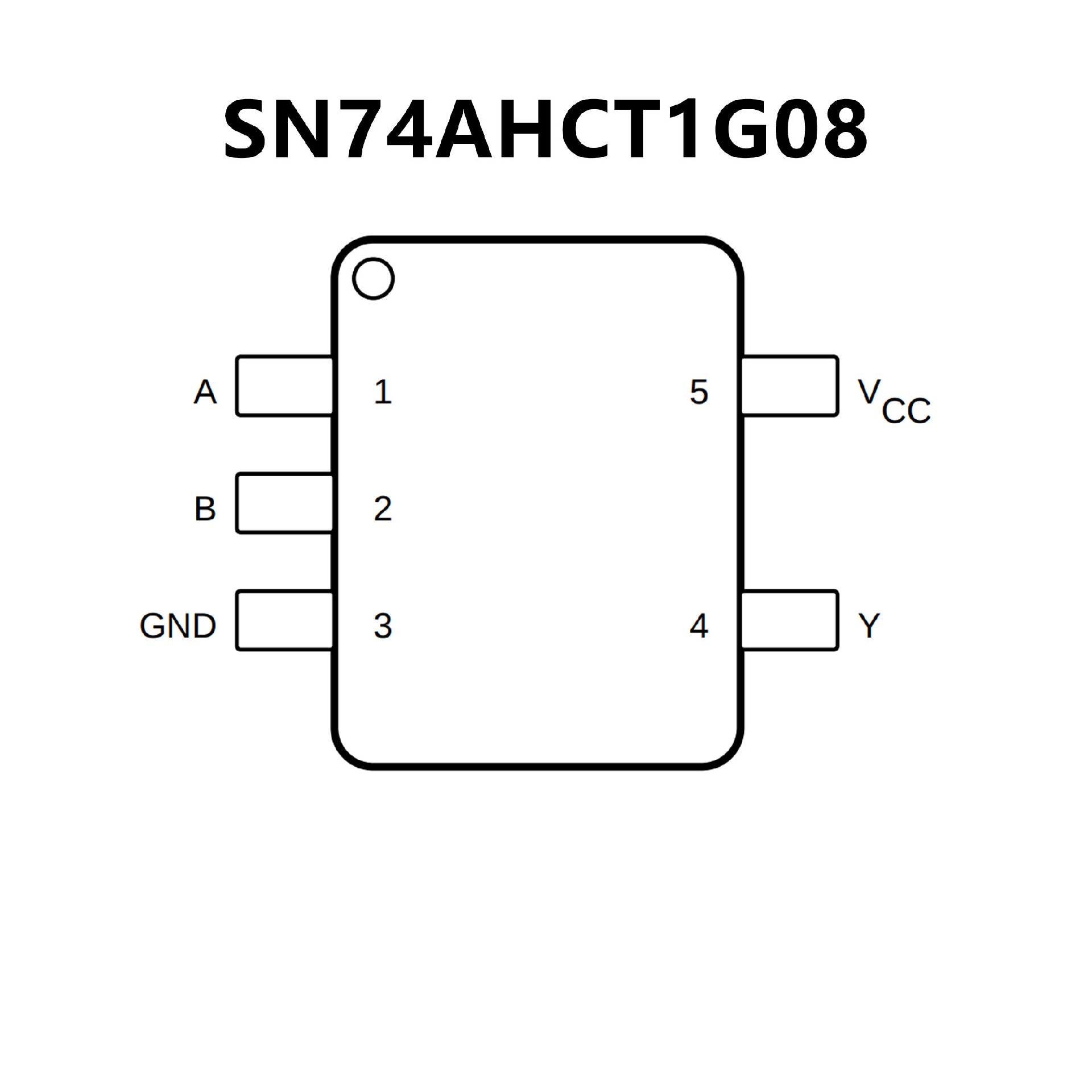

PIN CONFIGUTION
