Hex Inverter,74LVC04-Replace-74HCU04D.
74LVC04
74LVC04.pdf
74LVC04.pdfFEATURES
? 5V Tolerant Inputs for Interfacing with 5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5.5V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

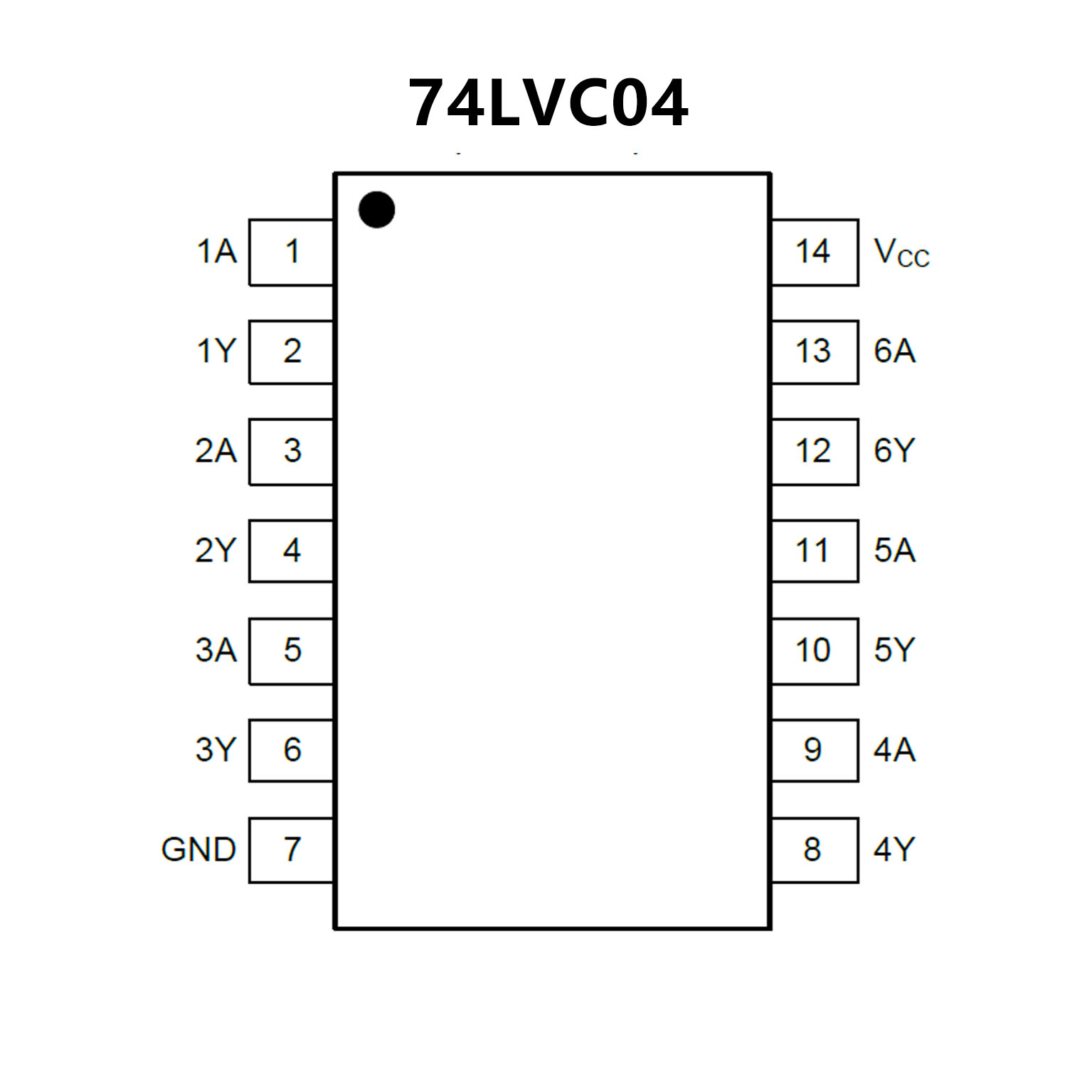

PIN CONFIGUTION
優勢替代
FEATURES
? Wide operating temperature range: Topr = -40 to 125℃ (Note 1)
? High speed: tpd = 4 ns (typ.) at VCC = 5 V
? Low power dissipation: ICC = 1.0 μA (max) Ta = 25℃
? Balanced propagation delays: tPLH ≈ tPHL
? Wide operating voltage range: VCC(opr) = 2.0 to 6.0 V

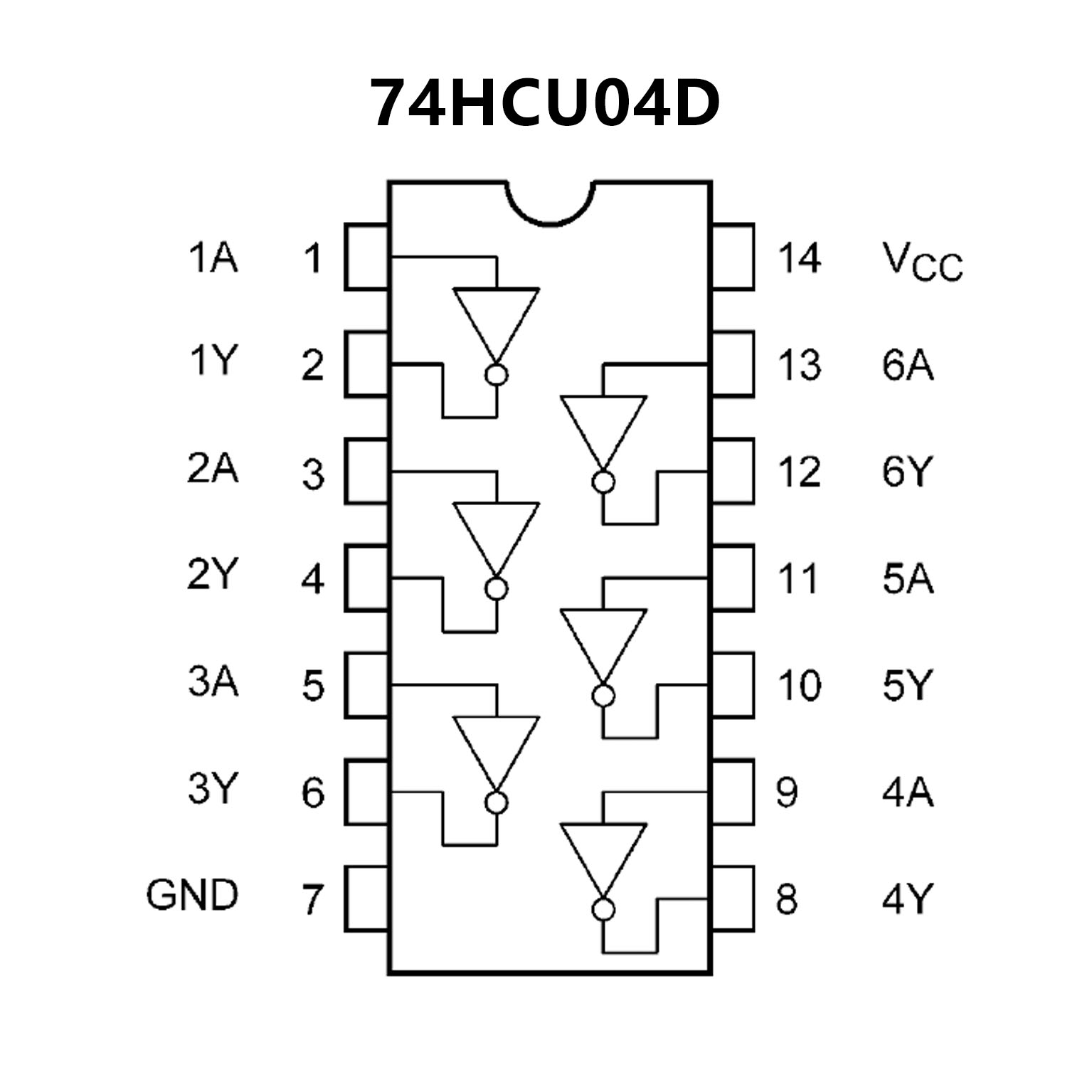

PIN CONFIGUTION
