Hex Inverter,74LVC04XS14GTR-Replace-74LCX06MX.
74LVC04XS14GTR
74LVC04XS14GTR.pdf
74LVC04XS14GTR.pdfFEATURES
? 5V Tolerant Inputs for Interfacing with 5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5.5V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-14 Package

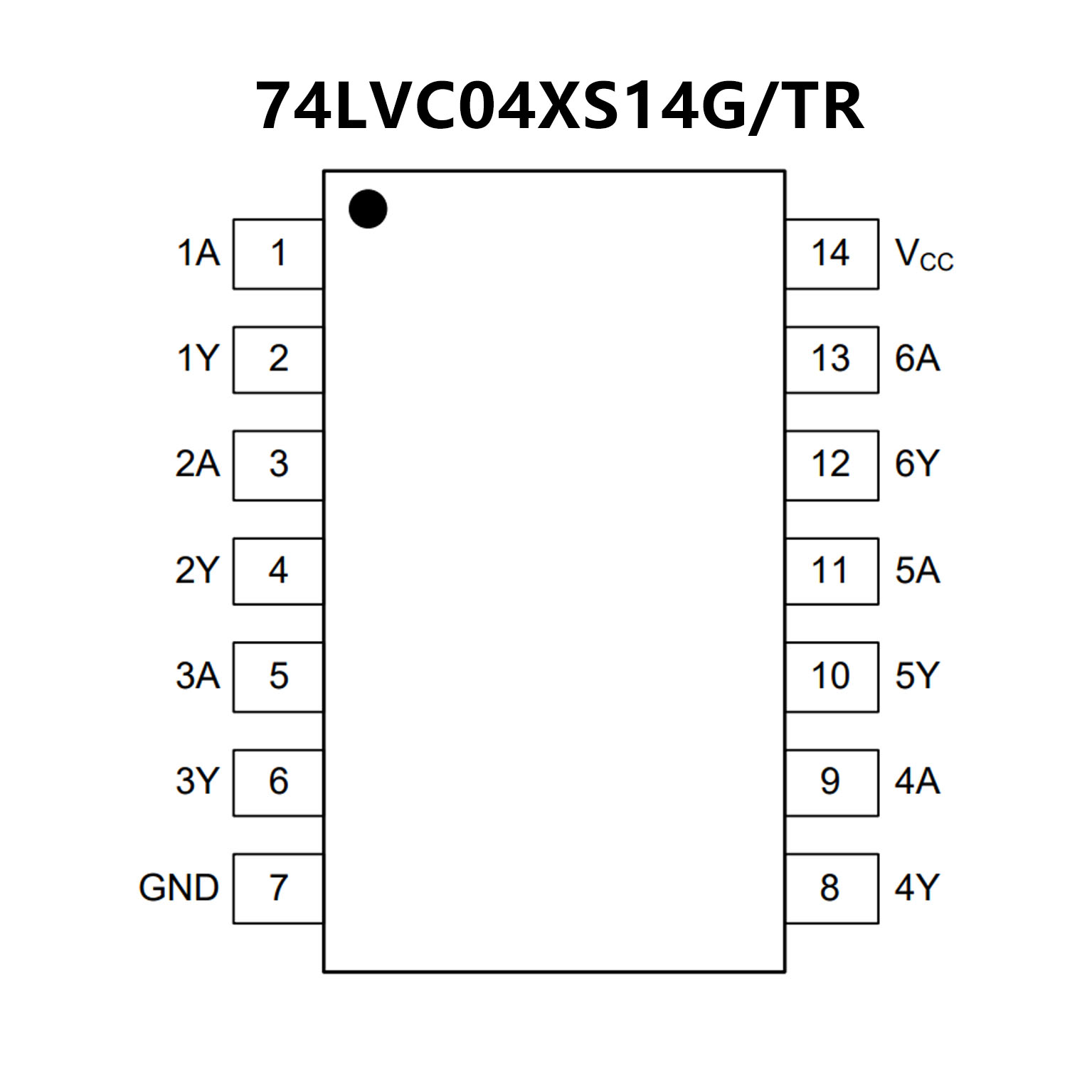

PIN CONFIGUTION
優勢替代
FEATURES
? 5V tolerant inputs
? 2.3V–3.6V VCC specifications provided
? 3.7ns tPD max. (VCC = 3.3V), 10μA ICC max.
? Power down high impedance inputs and outputs
? ±24mA output drive (VCC = 3.0V)
? lmplements proprietary noise/EMI reduction circuitry
? Latch-up performance exceeds 500mA
? ESD performance:
Human body model > 2000V
Machine model > 200V

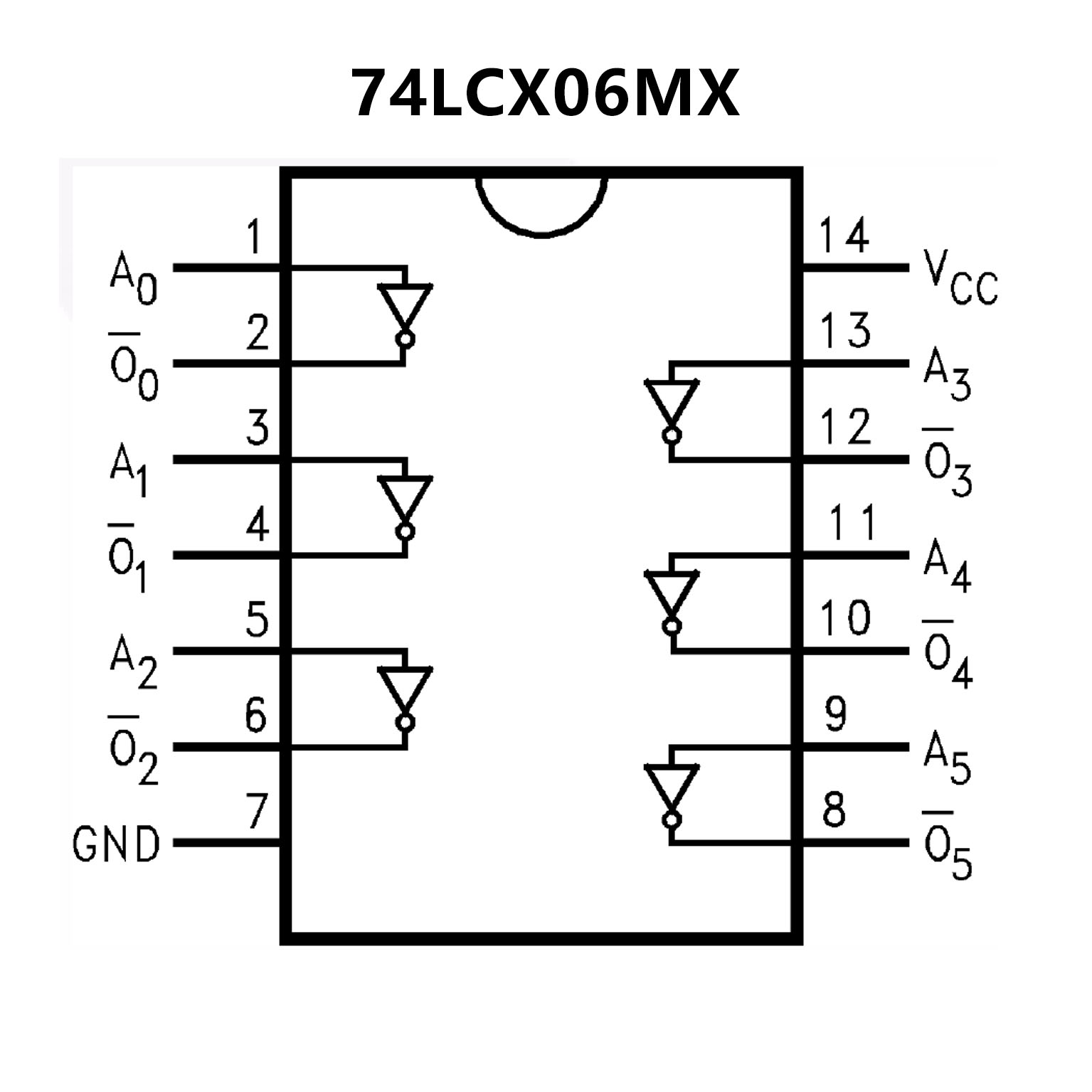

PIN CONFIGUTION
