Digital Integrated Circuits Silicon Monolithic,74LVC08XS14G Replace 74HC08D.
74LVC08XS14G.pdf優勢替代
FEATURES
? High speed: tpd = 6 ns (typ.) at VCC = 5 V
? Low power dissipation: ICC = 1.0 μA (max) at Ta = 25
? Balanced propagation delays: tPLH ≈ tPHL
? Wide operating voltage range: VCC(opr) = 2.0 to 6.0 V

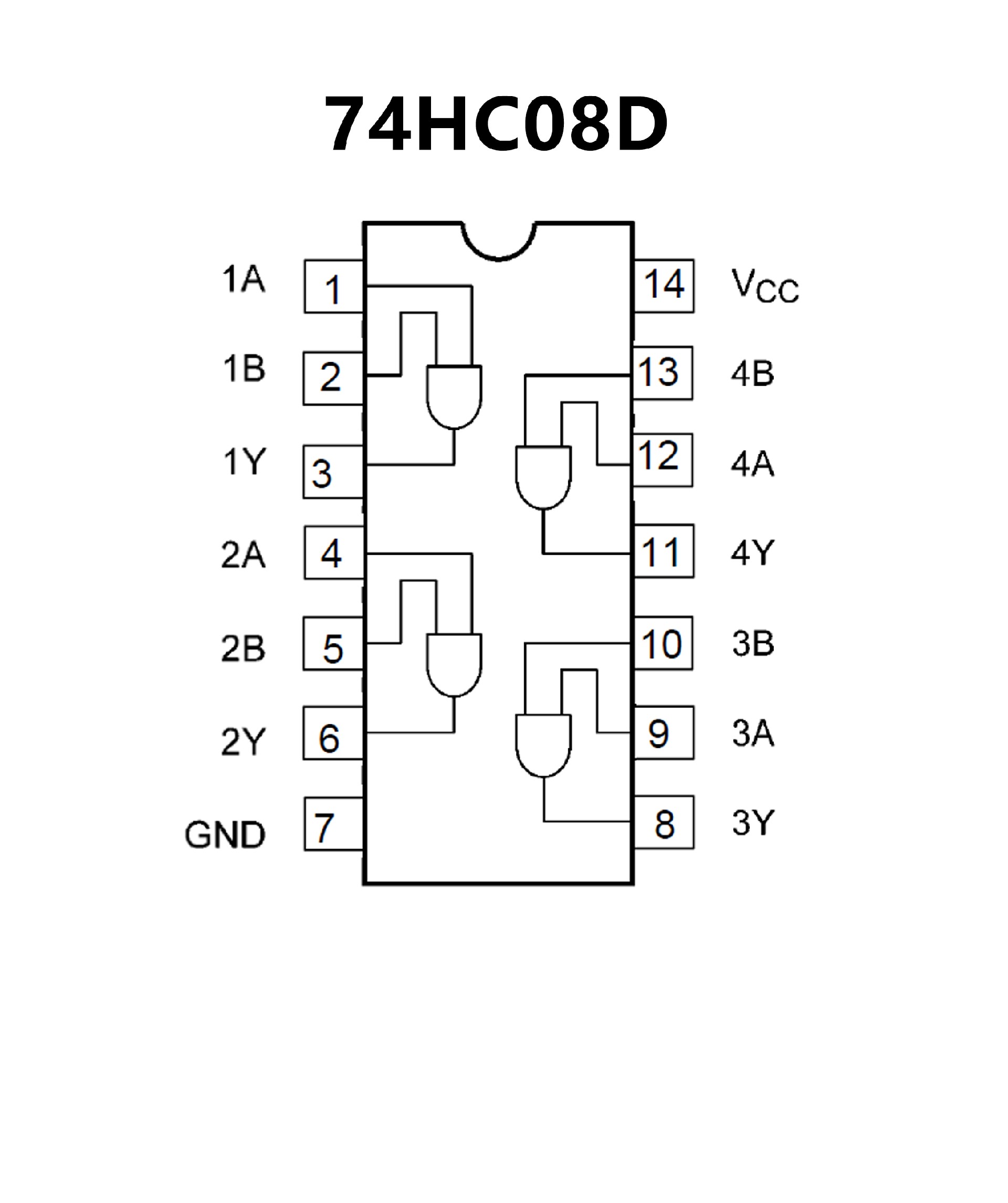

PIN CONFIGUTION
