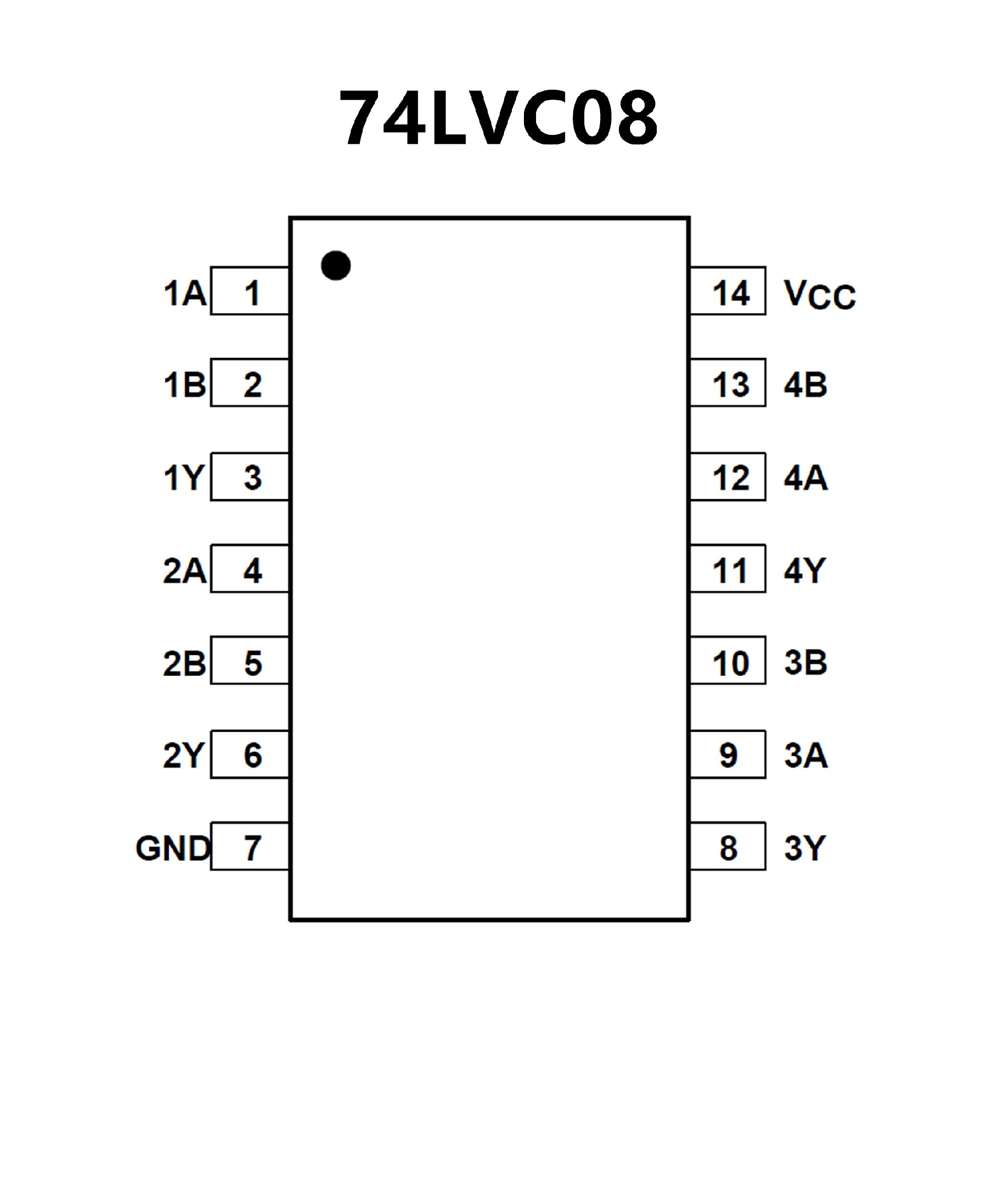

74LVC08XTS14G.pdf? 5V Tolerant Inputs for Interfacing with 5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages
? Latch-Up Performance Exceeds 250 mA
Per JESD 17
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
On Products Compliant to MIL-PRF-38535,
All Parameters Are Tested Unless Otherwise
Noted. On All Other Products, Production
Processing Does Not Necessarily Include
Testing of All Parameters.
? SN74LVC04A Operates From 1.65 V to 3.6 V
? SN54LVC04A Operates From 2.0 V to 3.6 V

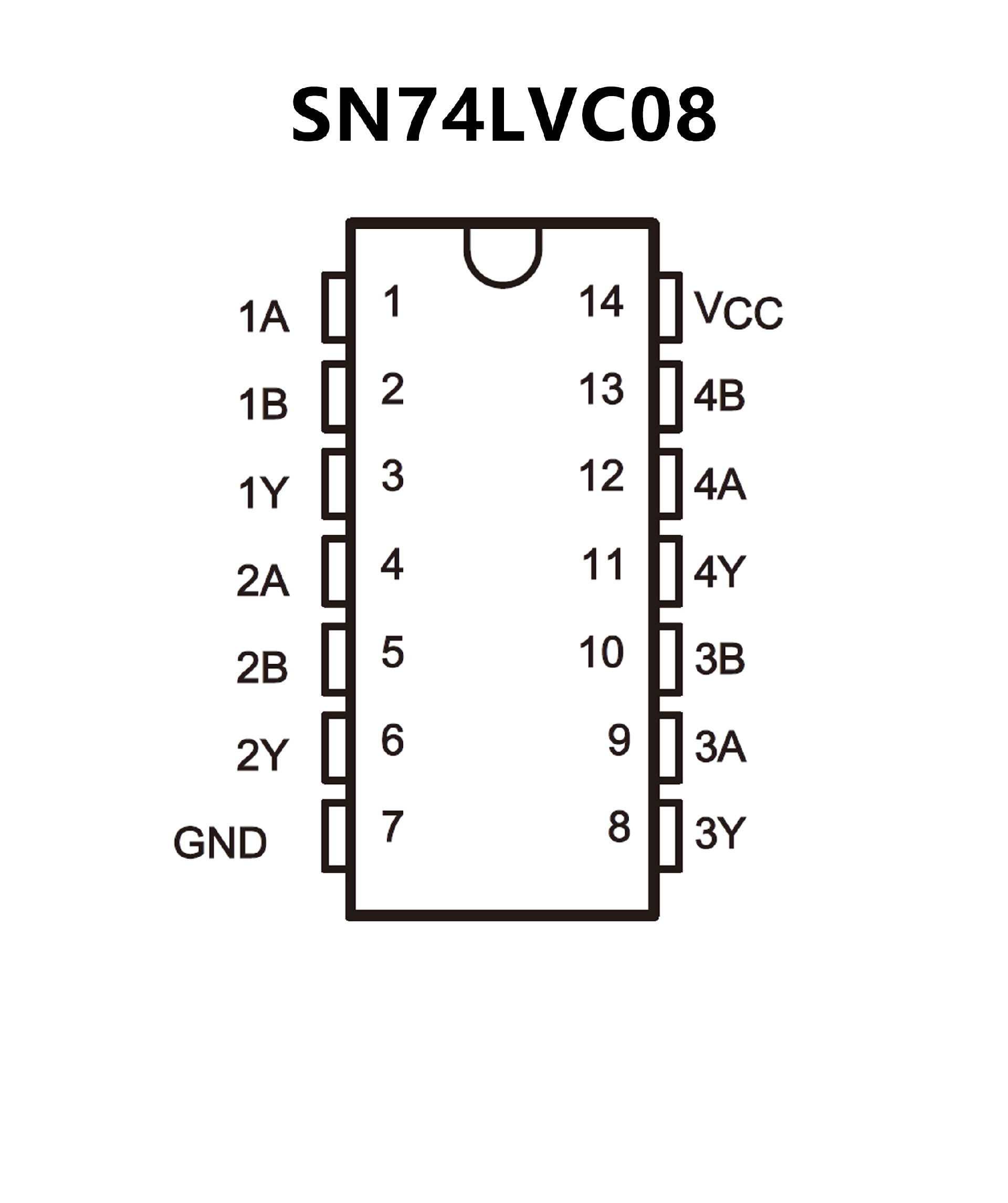

? SNx4LVC08A Specified From –40°C to +85°C
and –40°C to +125°C
? SN54LVC08A Specified From –55°C to +125°C
? Inputs Accept Voltages to 5.5 V
? Max tpd of 4.1 ns at 3.3 V
? Typical VOLP (Output Ground Bounce)
<0.8 V at VCC = 3.3 V, TA = 25°C
? Typical VOHV (Output VOH Undershoot)
>2 V at VCC = 3.3 V, TA = 25°C
