Quadruple Bus Buffer Gate With 3 State Outputs, 74LVC126A Replace SN74LVC126A
74LVC126A.pdf優勢替代
FEATURES
? Operates From 1.65 V to 3.6 V
? Specified From –40°C to +125°C
? Inputs Accept Voltages up to 5.5 V
? Maximum tpd of 4.7 ns at 3.3 V
? Typical VOLP (Output Ground Bounce),
<0.8 V at VCC = 3.3 V, TA = 25°C
? Typical VOHV (Output VOH Undershoot),
? 2 V at VCC = 3.3 V, TA = 25°C
? Latch-Up Performance Exceeds 250 mA Per JESD 17

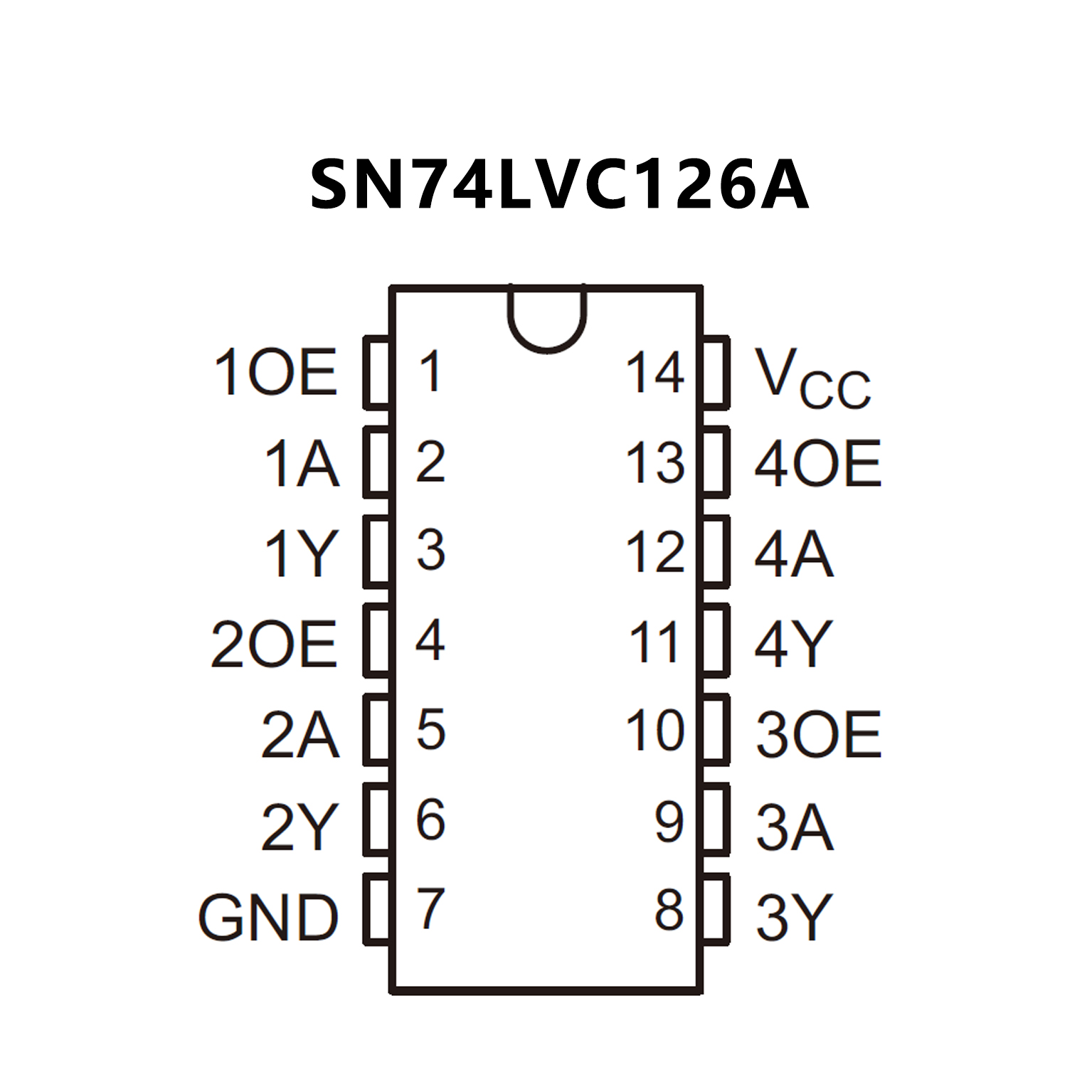

PIN CONFIGUTION
