3-Line to 8-Line Inverting Decoder/Demultiplexer,74LVC138XTRG16GTR-Replace-74LVC138ABQ.
74LVC138
74LVC138.pdf
74LVC138.pdfFEATURES
? 5V Tolerant Inputs for Interfacing with 5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Demultiplexing Capability
? Multiple Input Enable for Easy Expansion
? Ideal for Memory Chip Select Decoding
? Mutually Exclusive Outputs
? Output Drive Capability: 50Ω Transmission Lines at +125℃
? -40℃ to +125℃ Operating Temperature Range
? Additionally Specified from -10℃ to +85℃ at VCC = 1.14V
? Available in a Green TQFN-2.5×3.5-16L Package

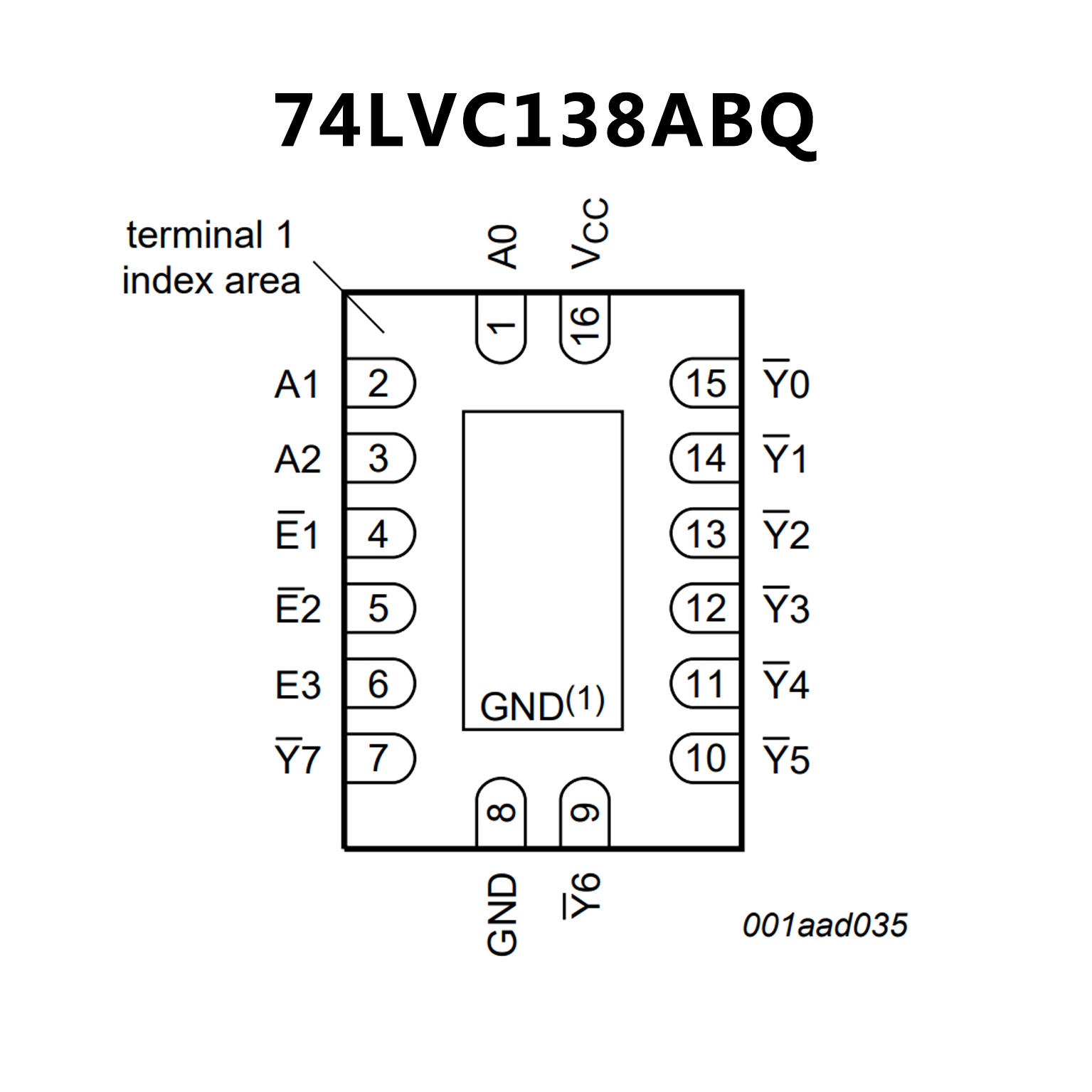

PIN CONFIGUTION
優勢替代
FEATURES
? Overvoltage tolerant inputs to 5.5 V
? Wide supply voltage range from 1.2 V to 3.6 V
? CMOS low power consumption
? Direct interface with TTL levels
? Demultiplexing capability
? Multiple input enable for easy expansion
? Ideal for memory chip select decoding
? Mutually exclusive outputs
? Output drive capability 50 ? transmission lines at 125 °C
? Complies with JEDEC standard:
? JESD8-7A (1.65 V to 1.95 V)
? JESD8-5A (2.3 V to 2.7 V)
? JESD8-C/JESD36 (2.7 V to 3.6 V)
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-B exceeds 200 V
? CDM JESD22-C101E exceeds 1000 V
? Specified from -40 °C to +85 °C and from -40 °C to +125 °C

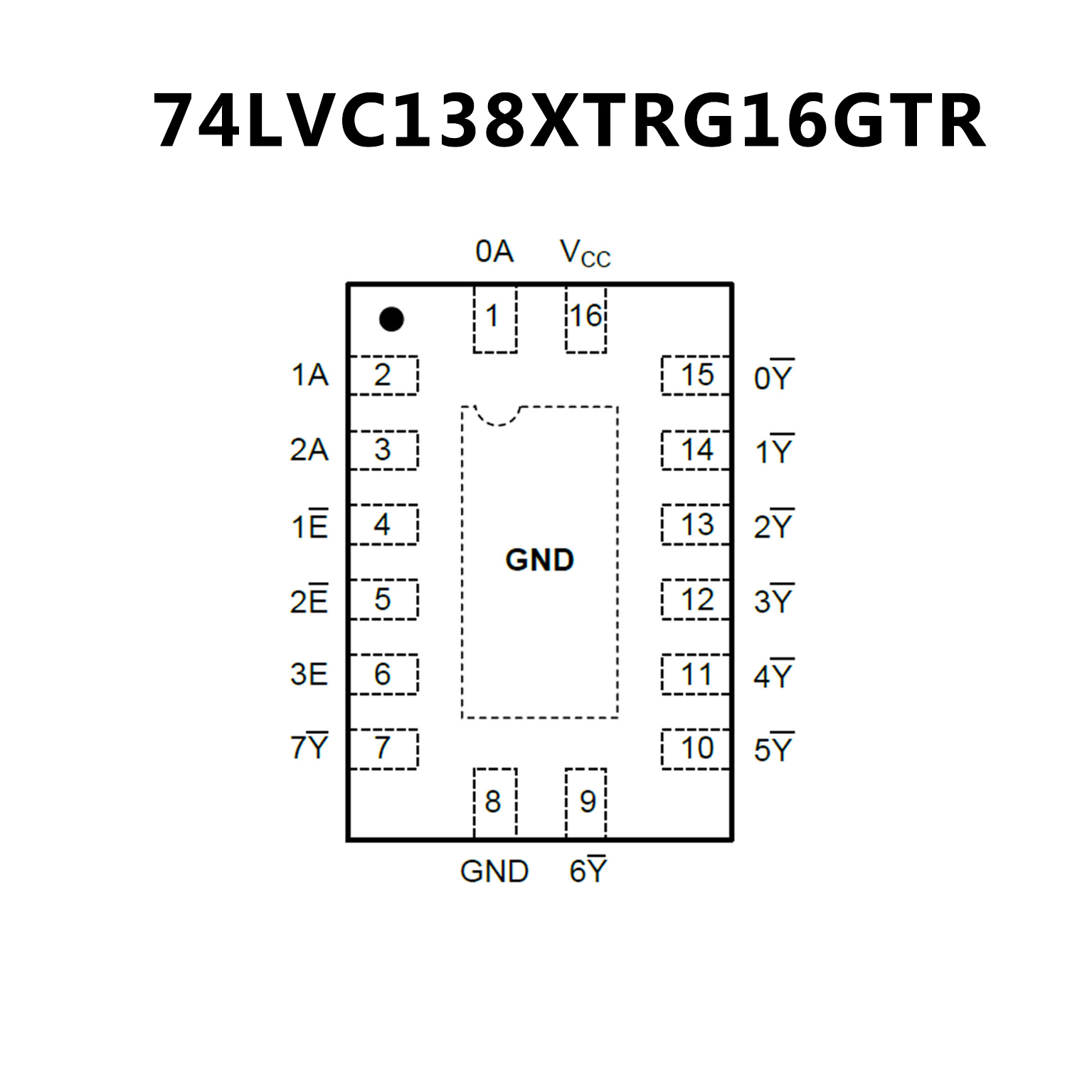

PIN CONFIGUTION
