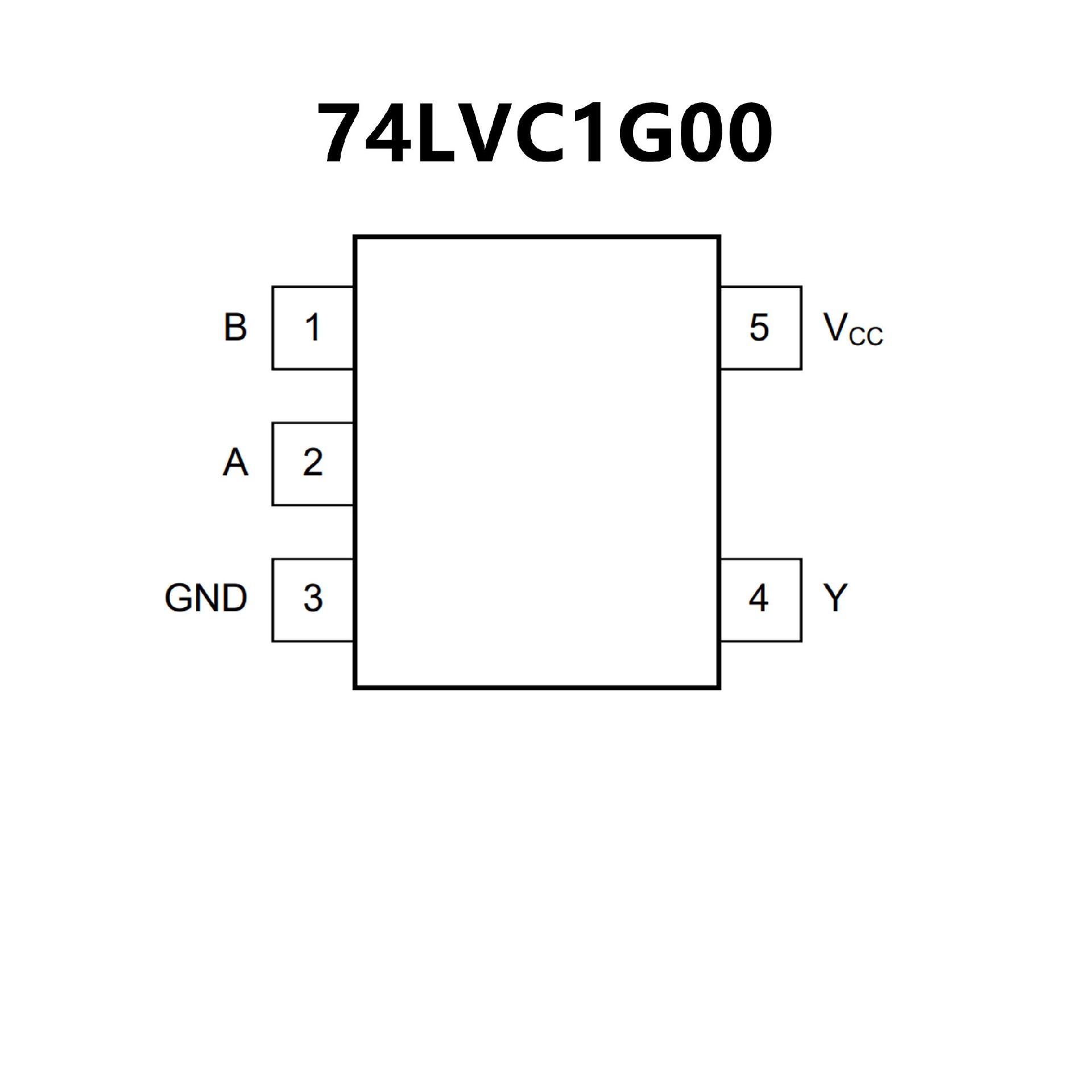

74LVC1G00.pdf? Wide Supply Voltage Range: 1.65V to 5.5V
? High Noise Immunity
? ±24mA Output Drive at VCC = 3.0V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SC70-5 Package

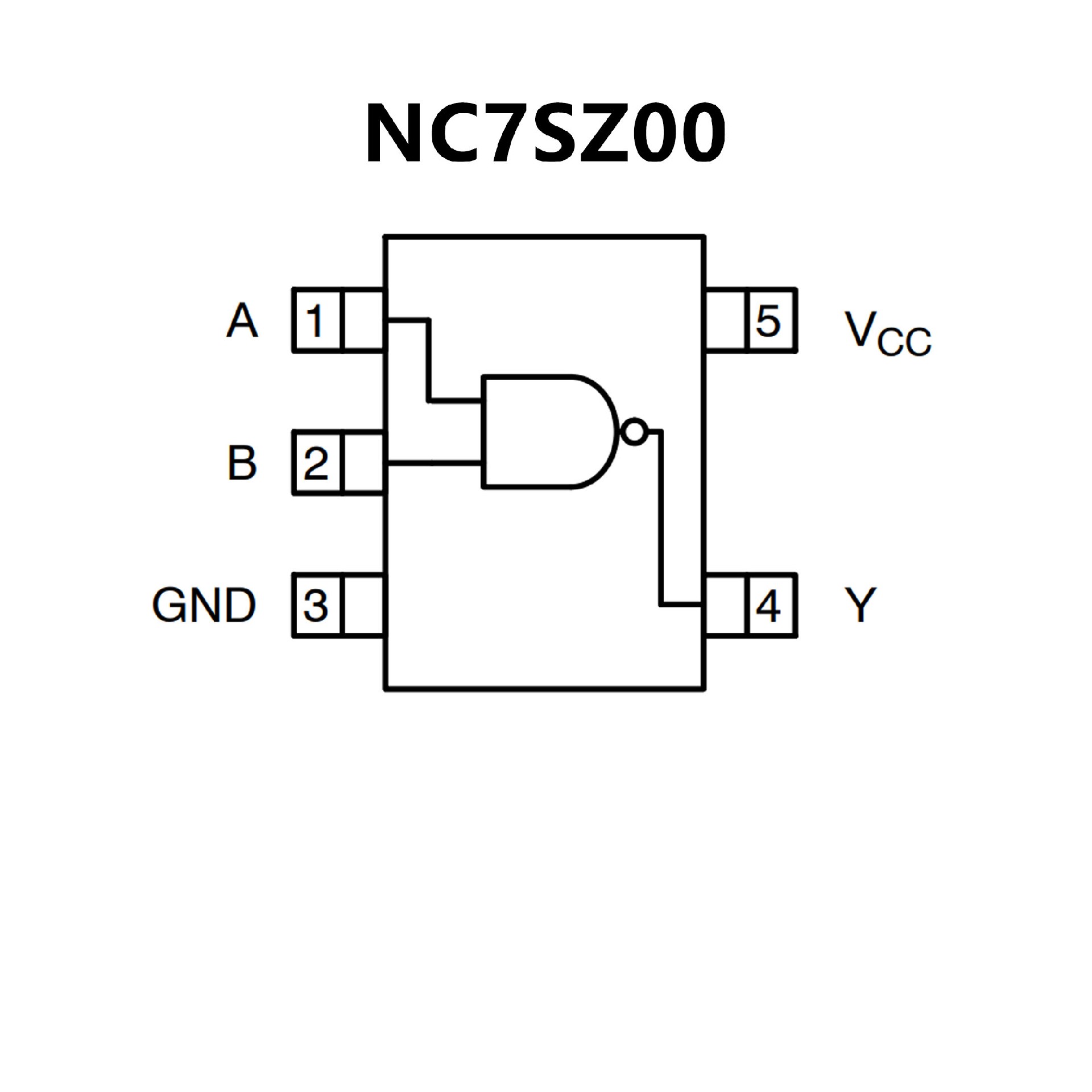

? Ultra?High Speed: tPD = 2.4 ns
(Typical) into 50 pF at 5 V VCC
? High Output Drive: ±24 mA at 3 V VCC
? Broad VCC Operating Range: 1.65 V to 5.5 V
? Matches Performance of LCX Operated at 3.3 V VCC
? Power Down High?Impedance Inputs / Outputs
? Over?Voltage Tolerance Inputs
Facilitate 5 V to 3 V Translation
? Proprietary Noise / EMI Reduction Circuitry
? Ultra?Small MicroPak? Packages
? Space?Saving SC?74A and SC?88A Packages
? These Devices are Pb?Free, Halogen
Free/BFR Free and are RoHS Compliant
