Single Buffer/Driver With Open Drain Output，Replace SN74LVC1G07
74LVC1G07.pdf優勢替代
FEATURES
? Available in the Ultra Small 0.64-mm2
Package (DPW) With 0.5-mm Pitch
? Supports 5-V VCC Operation
? Input and Open-Drain Output Accept Voltages up to 5.5 V
? Can Translate Up or Down
? Max tpd of 4.2 ns at 3.3 V
? Low Power Consumption, 10-μA Max ICC
? ±24-mA Output Drive at 3.3 V
Ioff Supports Live Insertion, Partial-Power
Down Mode, and Back-Drive Protection
Latch-Up Performance Exceeds 100 mA
Per JESD 78, Class II
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)

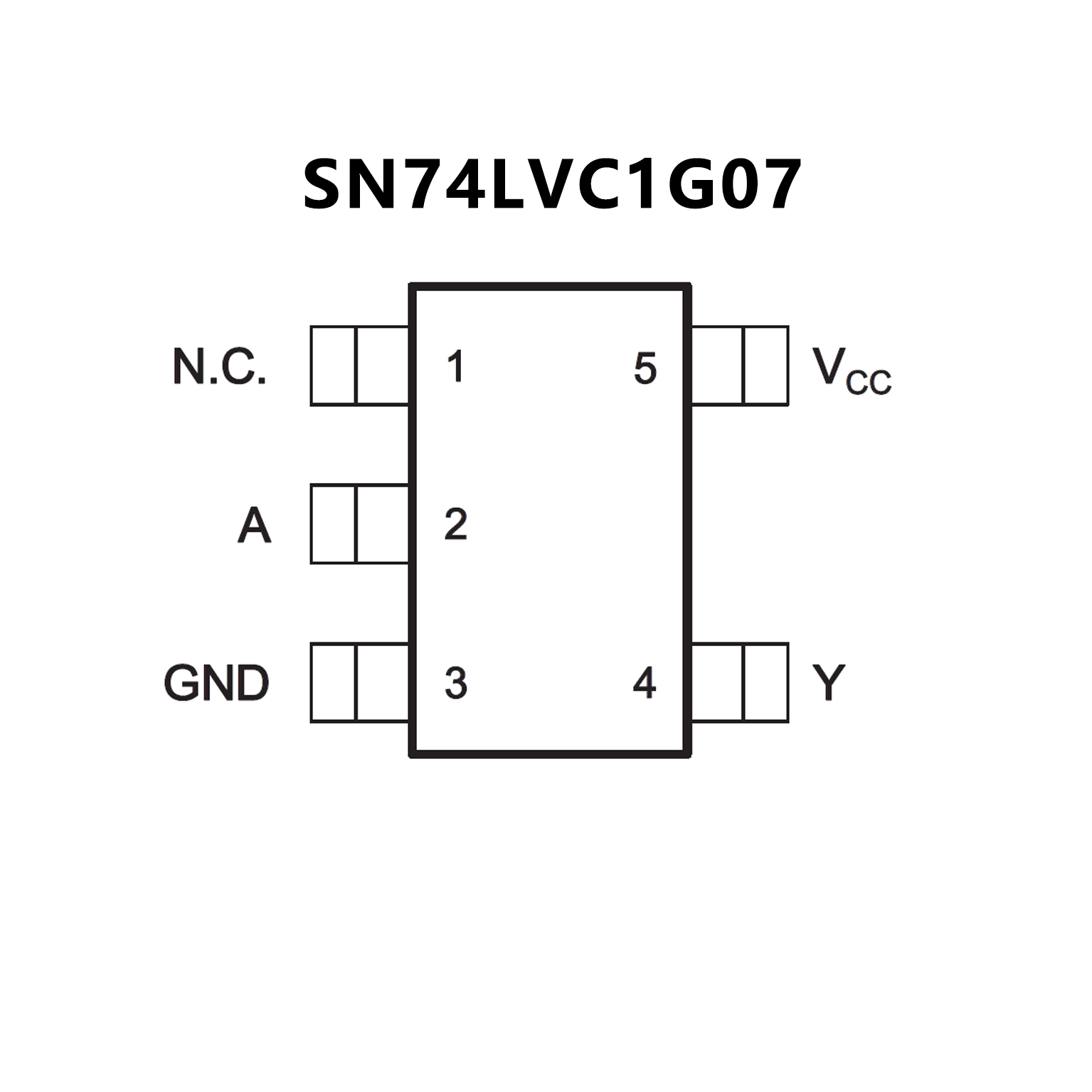

PIN CONFIGUTION
