Single 2 Input Exclusive OR Gate, 74LVC1G86 Replace SN74LVC1G86.
74LVC1G86.pdf優勢替代
FEATURES
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
1000-V Charged-Device Model (C101)
? Qualified from –40°C to +125°C
? Supports 5-V VCC Operation
? Inputs Are Over Voltage Tolerant up to 5.5 V
? Supports Down Translation to VCC
? Maximum tpd of 4 ns at 3.3 V and 15-pF load
? Low Power Consumption, 10-μA Maximum ICC At 85°C
? ±24-mA Output Drive at 3.3 V
? Ioff Supports Partial-Power-Down
Mode, and Back-Drive Protection
? Available in the Texas Instruments
NanoFree? Package
? Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II

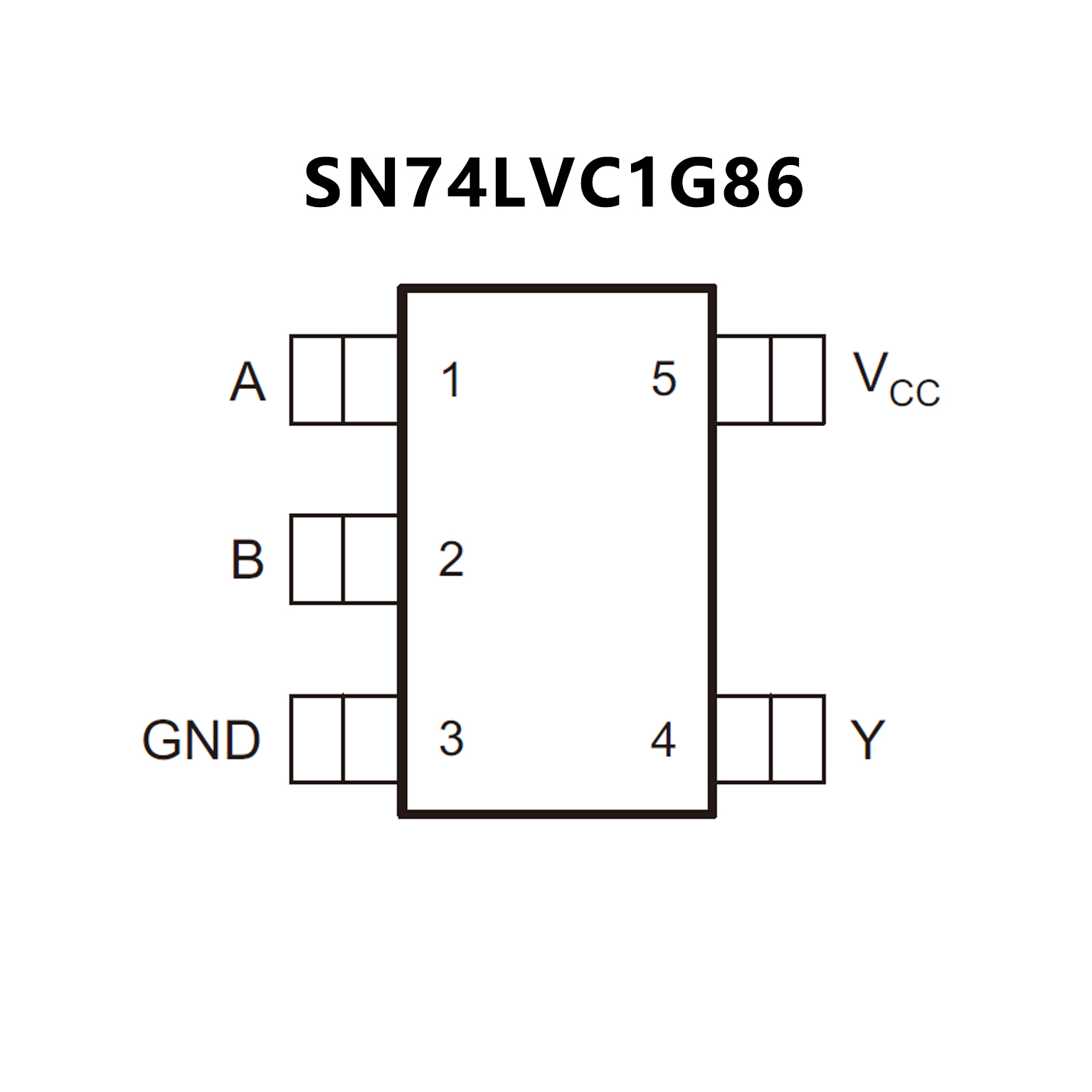

PIN CONFIGUTION
