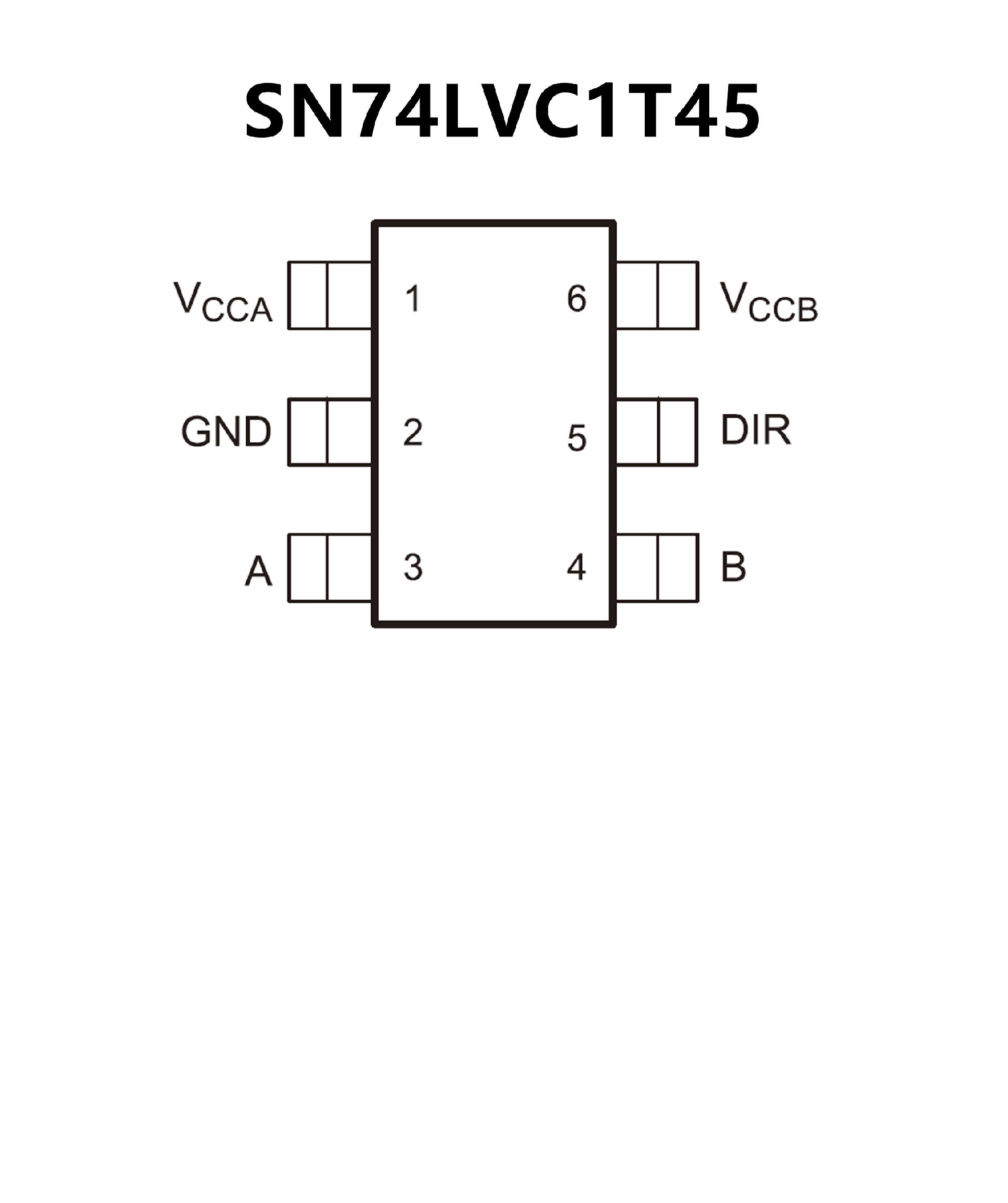

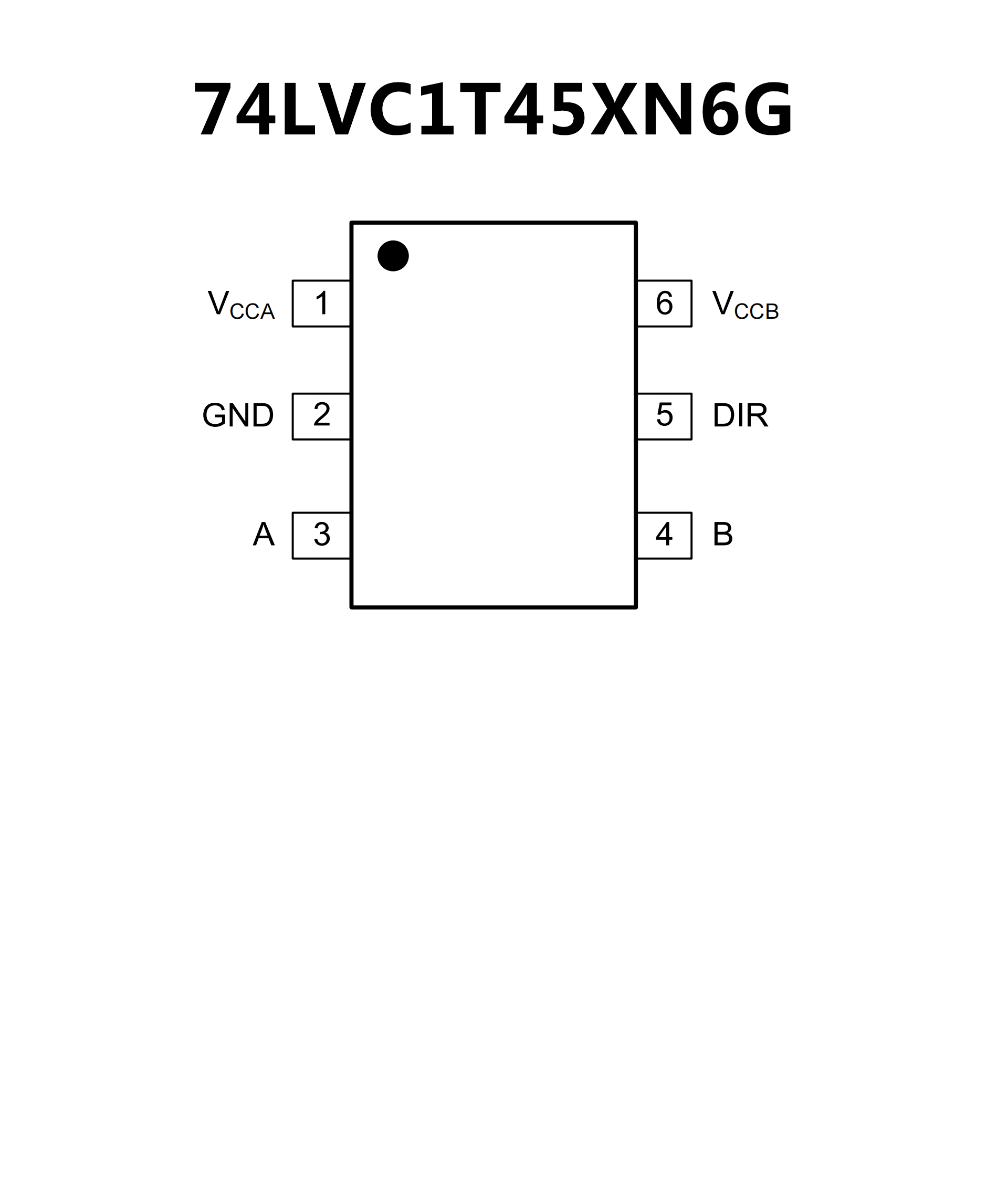

74LVC1T45.pdf
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
? Available in the Texas Instruments NanoFree?
Package
? Fully Configurable Dual-Rail Design Allows Each
Port to Operate Over the Full 1.65-V to 5.5-V
Power-Supply Range
? VCC Isolation Feature – If Either VCC Input Is at
GND, Both Ports Are in the High-Impedance State
? DIR Input Circuit Referenced to VCCA
? Low Power Consumption, 4-μA Max ICC
? ±24-mA Output Drive at 3.3 V
? Ioff Supports Partial-Power-Down Mode Operation
? Max Data Rates
420 Mbps (3.3-V to 5-V Translation)
210 Mbps (Translate to 3.3 V)
140 Mbps (Translate to 2.5 V)
75 Mbps (Translate to 1.8 V)
? Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
