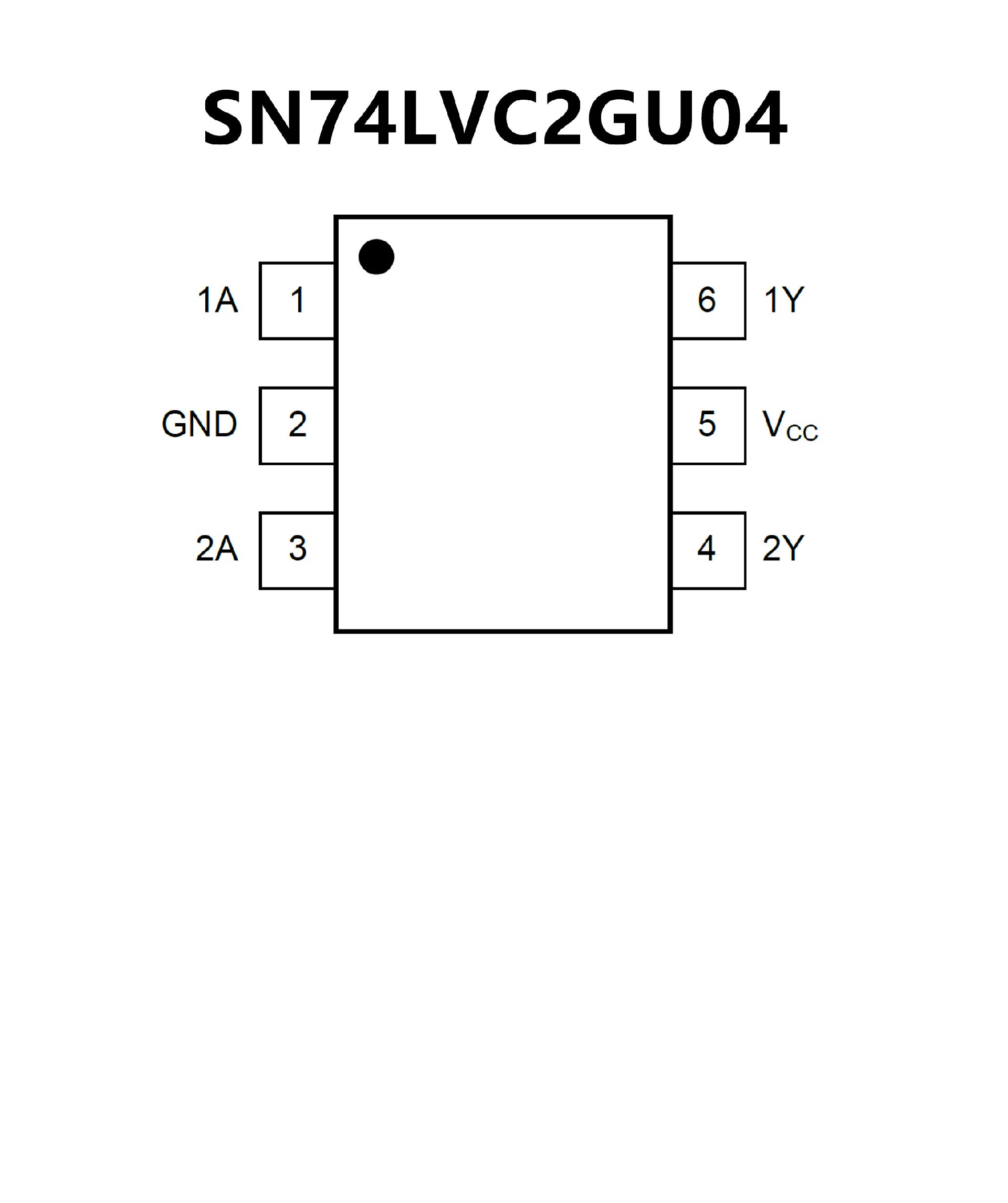

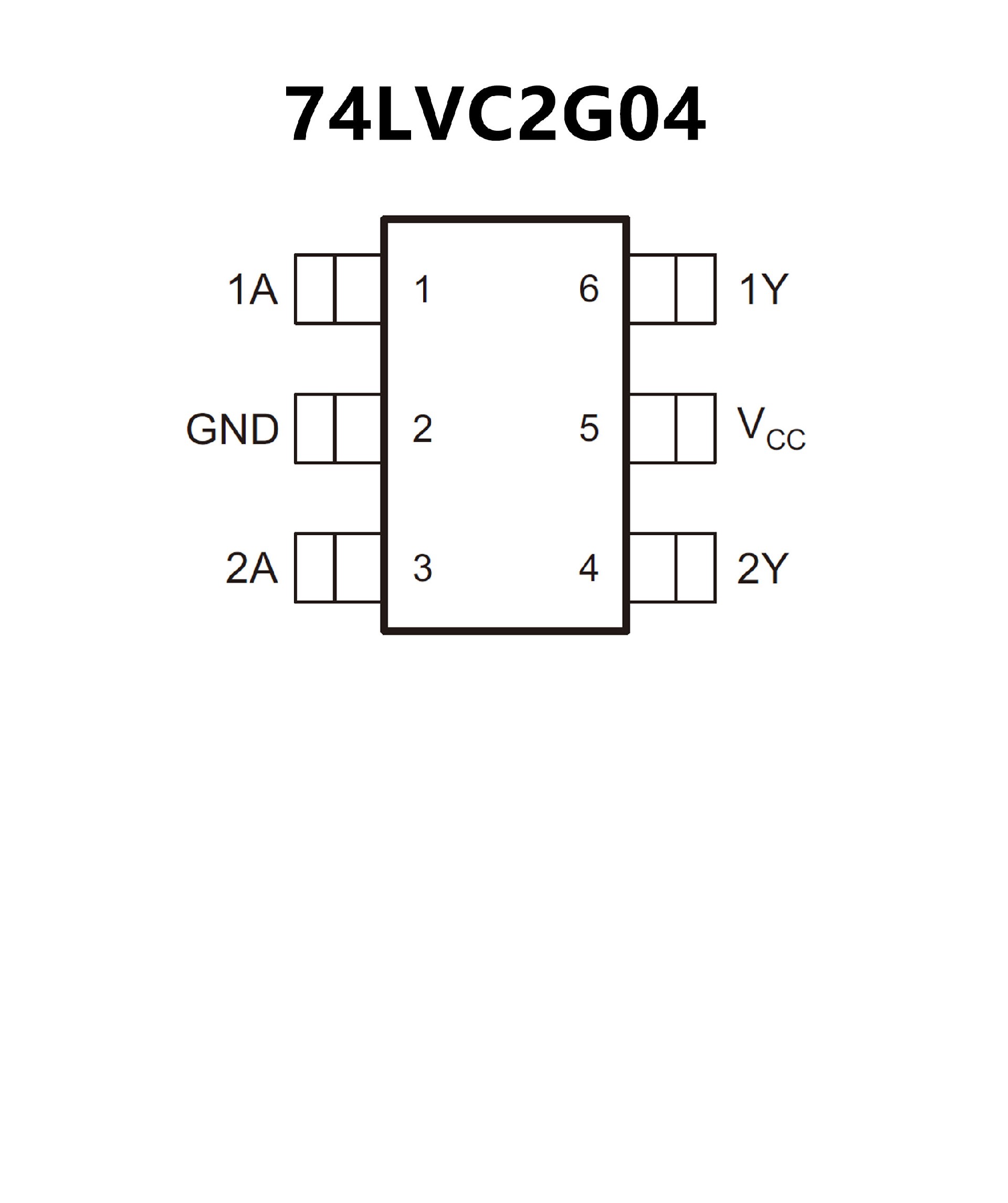

74LVC2G04.pdf? 5V Tolerant Inputs for Interfacing with 5V Logic
? Wide Supply Voltage Range: 1.65V to 5.5V
? High Noise Immunity
? ±24mA Output Drive at VCC = 3.0V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-6 Package
? Available in the Texas Instruments NanoFree?
Package operation.
Supports 5-V VCC Operation
? Inputs Accept Voltages to 5.5 V
? Max tpd of 3.7 ns at 3.3 V
? Low Power Consumption, 10-μA Max I
? ±24-mA Output Drive at 3.3 V
? Typical VOLP (Output Ground Bounce)
<0.8 V at VCC = 3.3 V, TA = 25°C
? Typical VOHV (Output VOH Undershoot)
>2 V at VCC = 3.3 V, TA = 25°C
? Ioff Supports Live Insertion, Partial-Power-
Down Mode, and Back-Drive Protection
? Can Be Used as a Down Translator to
Translate Inputs From a Max of 5.5 V Down to
the VCC Level
? Unbuffered Outputs
? Latch-Up Performance Exceeds 100 mA Per
JESD 78, Class II
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
