74LVC2T45XMS8G.pdf? VCCA Supply Voltage Range: 1.65V to 5.5V
? VCCB Supply Voltage Range: 1.65V to 5.5V
? DIR Input Circuit Referenced to VCCA
? +32mA/-32mA Output Current
? Data Rates
420Mbps (3.3V to 5V Translation)
210Mbps (Translate to 3.3V)75Mbps (Translate to 1.8V)
? Outputs in High-Impedance State when VCCA or VCCB = 0V
? -40℃ to +125℃ Operating Temperature Range
? Available in Green MSOP-8 and XTDFN-1.35×1-8L Packages

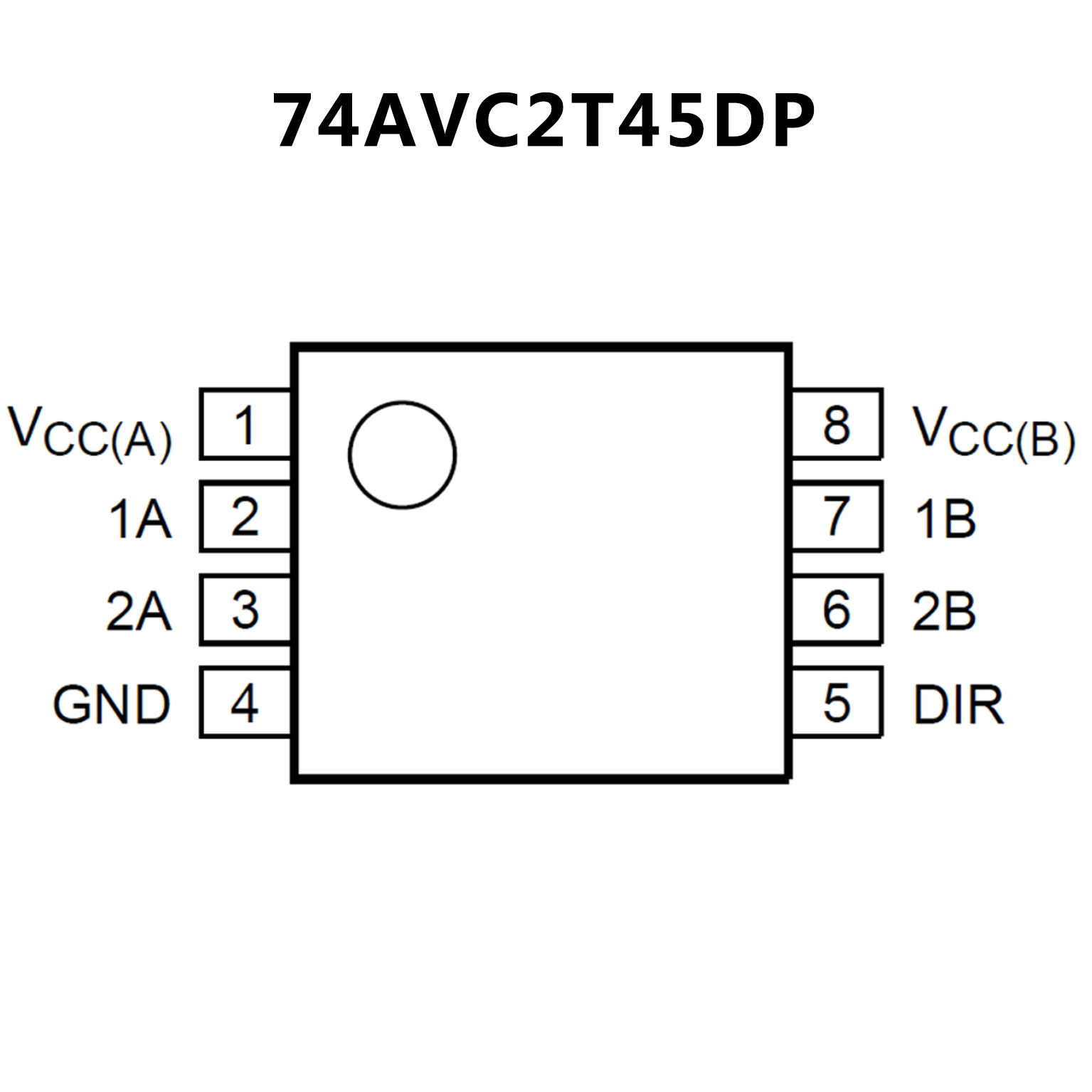

? Wide supply voltage range:
? VCC(A): 0.8 V to 3.6 V
? VCC(B): 0.8 V to 3.6 V
? High noise immunity
? Complies with JEDEC standards:
? JESD8-12 (0.8 V to 1.3 V)
? JESD8-11 (0.9 V to 1.65 V)
? JESD8-7 (1.2 V to 1.95 V)
? JESD8-5 (1.8 V to 2.7 V)
? JESD8-B (2.7 V to 3.6 V)
? ESD protection:
? HBM JESD22-A114F Class 3B exceeds 8000 V
? MM JESD22-A115-A exceeds 200 V
? CDM JESD22-C101C exceeds 1000 V
? Maximum data rates:
? 500 Mbit/s (1.8 V to 3.3 V translation)
? 320 Mbit/s (<1.8 V to 3.3 V translation)
? 320 Mbit/s (translate to 2.5 V or 1.8 V)
? 280 Mbit/s (translate to 1.5 V)
? 240 Mbit/s (translate to 1.2 V)
? Suspend mode
? Latch-up performance exceeds 100 mA per JESD 78 Class II
? Inputs accept voltages up to 3.6 V
? Low noise overshoot and undershoot < 10 % of VCC
? IOFF circuitry provides partial Power-down mode operation
? Multiple package options
? Specified from -40 °C to +85 °C and -40 °C to +125 °C
