74LVC2T45.pdf? VCCA Supply Voltage Range: 1.65V to 5.5V
? VCCB Supply Voltage Range: 1.65V to 5.5V
? DIR Input Circuit Referenced to VCCA
? +32mA/-32mA Output Current
? Data Rates
420Mbps (3.3V to 5V Translation)
210Mbps (Translate to 3.3V)75Mbps (Translate to 1.8V)
? Outputs in High-Impedance State when VCCA or VCCB = 0V
? -40℃ to +125℃ Operating Temperature Range

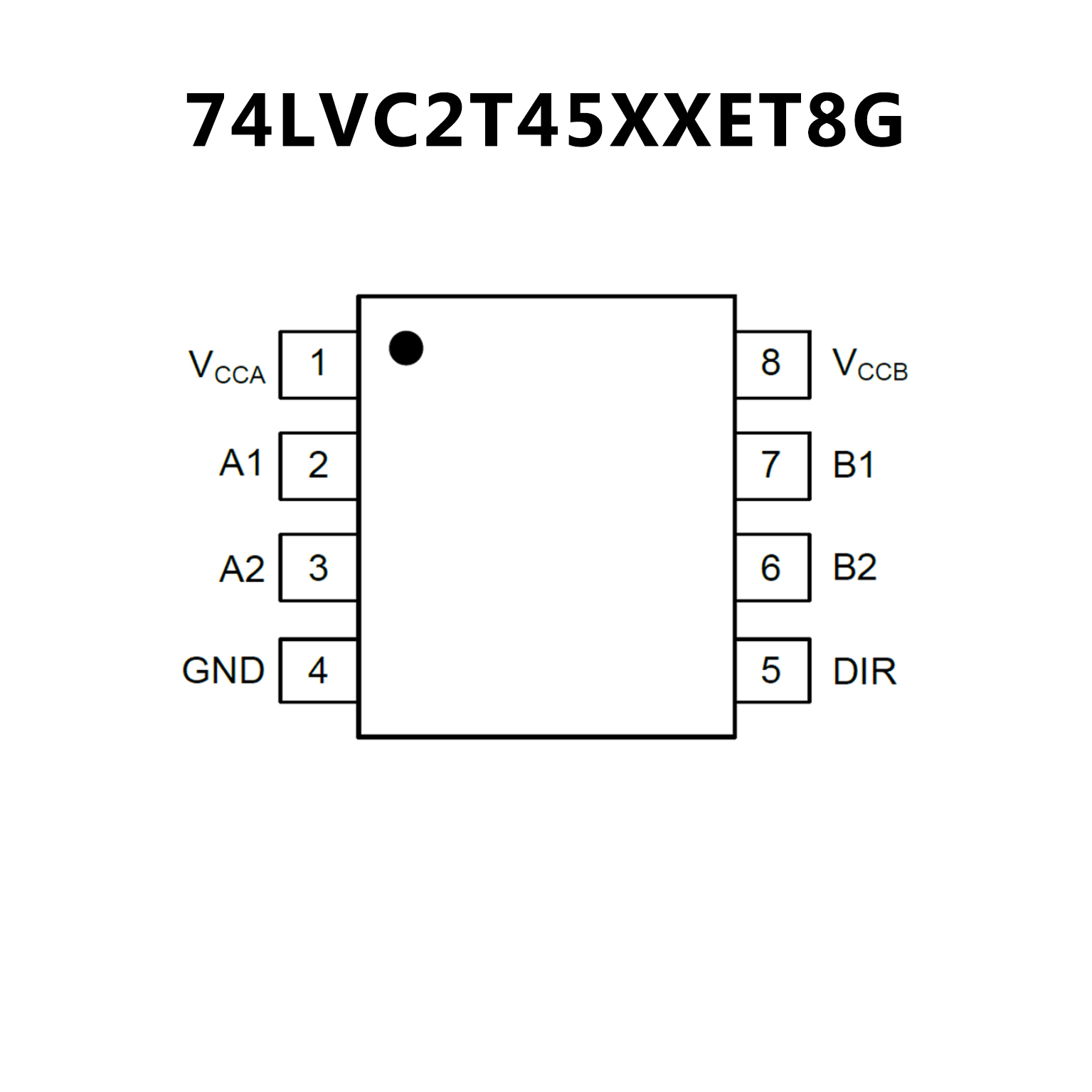

? Available in Green MSOP-8 and XTDFN-1.35×1-8L Packages
? Wide supply voltage range:
? VCC(A): 1.2 V to 5.5 V
? VCC(B): 1.2 V to 5.5 V
? High noise immunity
? Complies with JEDEC standards:
? JESD8-7 (1.2 V to 1.95 V)
? JESD8-5 (1.8 V to 2.7 V)
? JESD8C (2.7 V to 3.6 V)
? JESD36 (4.5 V to 5.5 V)
? ESD protection:
? HBM JESD22-A114F Class 3A exceeds 4000 V
? MM JESD22-A115-A exceeds 200 V
? CDM JESD22-C101E exceeds 1000 V
? Maximum data rates:
? 420 Mbps (3.3 V to 5.0 V translation)
? 210 Mbps (translate to 3.3 V))
? 140 Mbps (translate to 2.5 V)
? 75 Mbps (translate to 1.8 V)
? 60 Mbps (translate to 1.5 V)
? Suspend mode
? Latch-up performance exceeds 100 mA per JESD 78 Class II
? ±24 mA output drive (VCC = 3.0 V)
? Inputs accept voltages up to 5.5 V
? Low power consumption: 16 μA maximum ICC
? IOFF circuitry provides partial Power-down mode operation

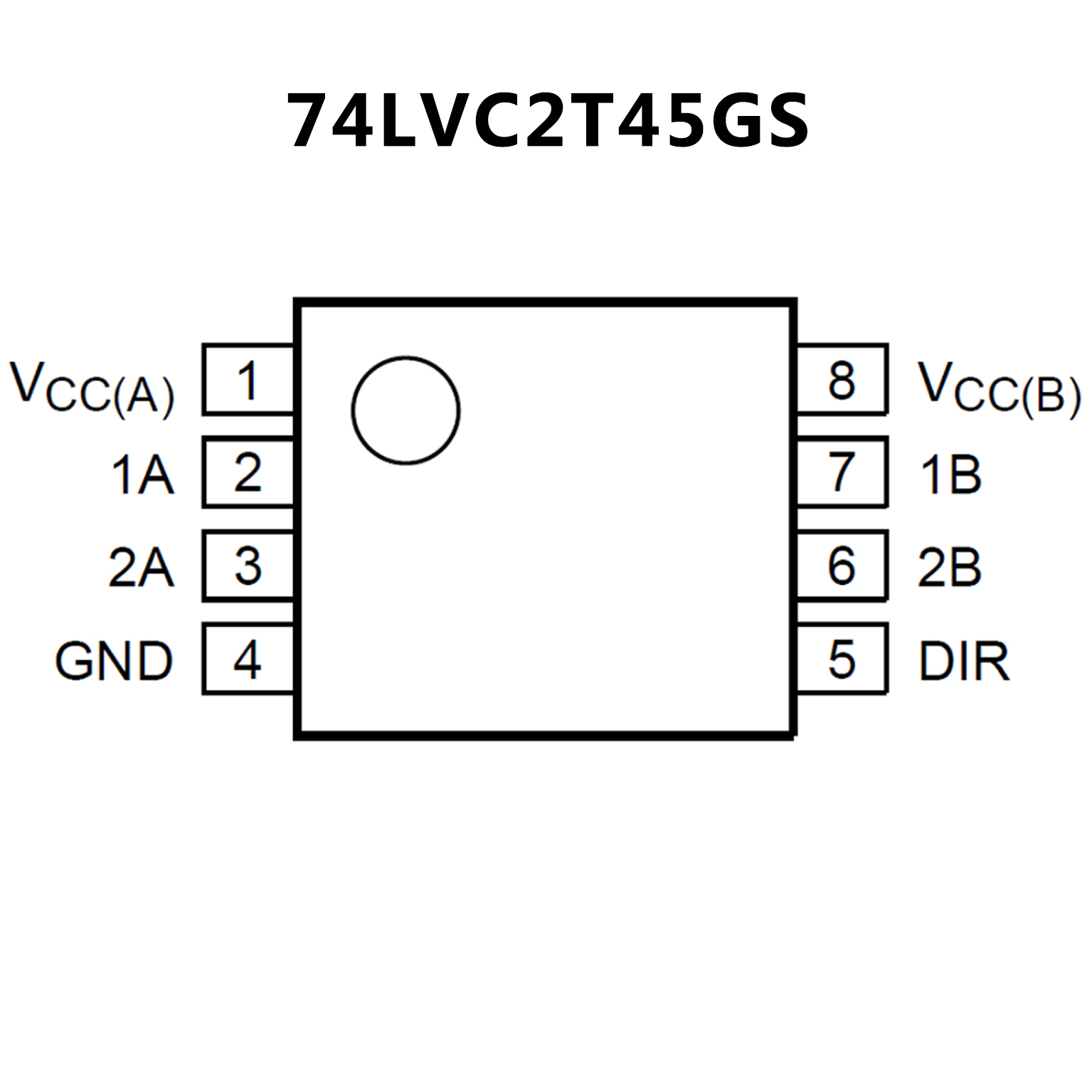

? Multiple package options
? Specified from -40 °C to +85 °C and -40 °C to +125 °C
