Quad 2-Input OR Gate,74LVC32XTS14GTR-Replace-74LVC32APW-118.
74LVC32XTS14GTR
74LVC32XTS14GTR.pdf
74LVC32XTS14GTR.pdfFEATURES
? 5V Tolerant Inputs for Interfacing with 5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-14 and TSSOP-14 Packages

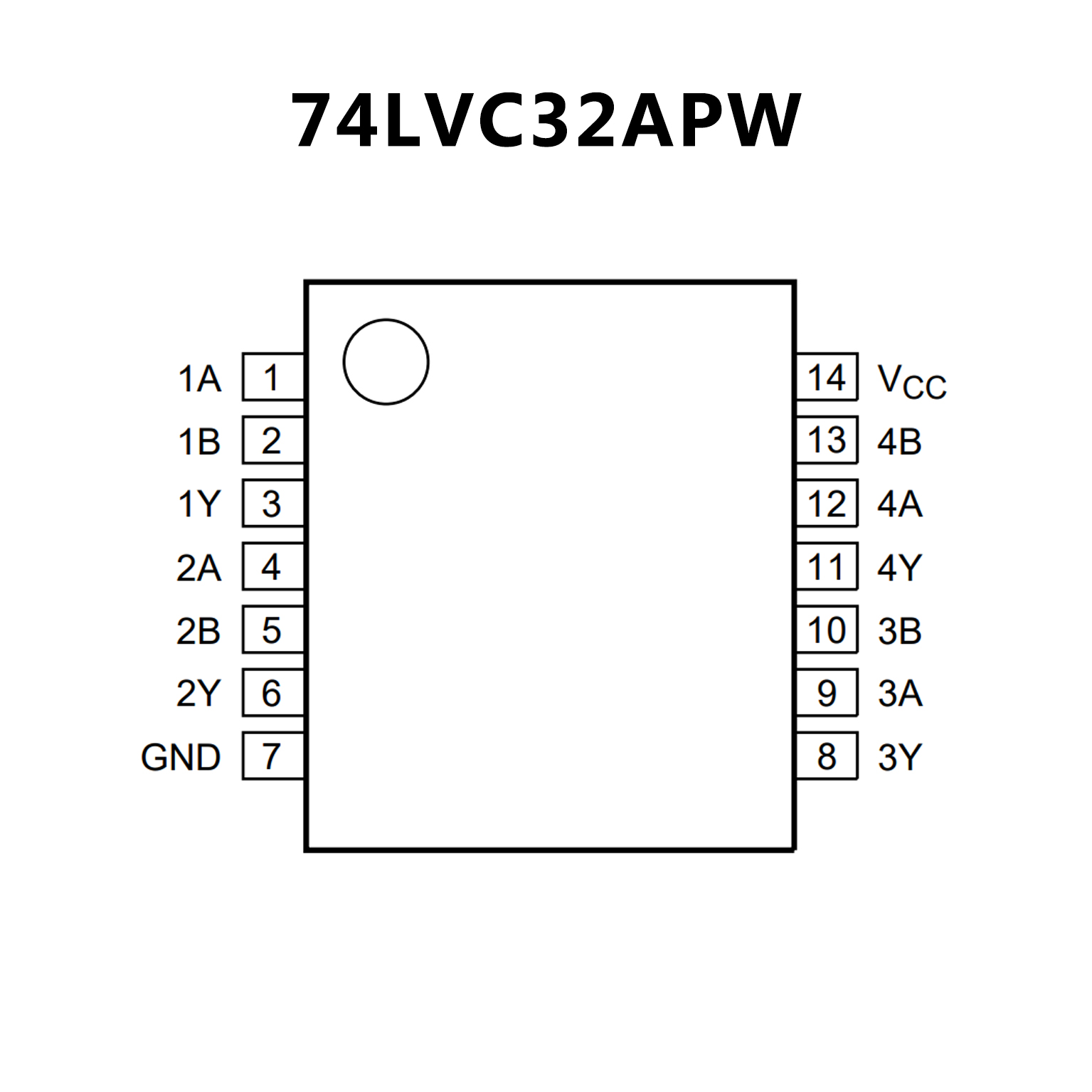

PIN CONFIGUTION
優勢替代
FEATURES
? Wide supply voltage range from 1.2 V to 3.6 V
? Overvoltage tolerant inputs to 5.5 V
? CMOS low power dissipation
? Direct interface with TTL levels
? Complies with JEDEC standard:
? JESD8-7A (1.65 V to 1.95 V)
? JESD8-5A (2.3 V to 2.7 V)
? JESD8-C/JESD36 (2.7 V to 3.6 V)
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-B exceeds 200 V
? CDM JESD22-C101E exceeds 1000 V
? Specified from -40°C to +85°C and -40°C to +125°C

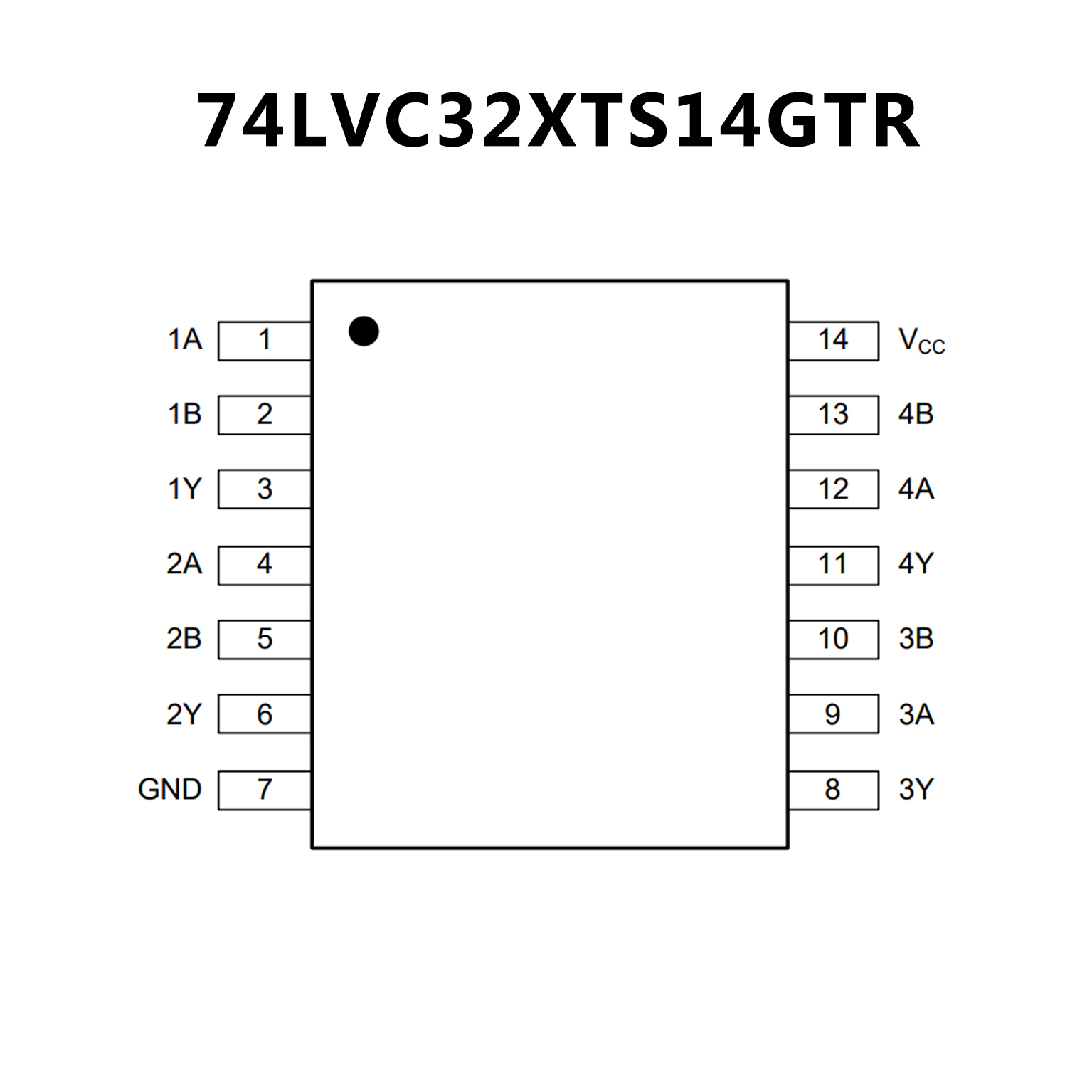

PIN CONFIGUTION
