Dual D-Type Positive Edge-Triggered Flip-Flop with Set and Reset,74LVC74XTS14G Replace SN74AHC74.
74LVC74XTS14G
74LVC74XTS14G.pdf
74LVC74XTS14G.pdfFEATURES
? 5V Tolerant Inputs for Interfacing with 5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-14 Package

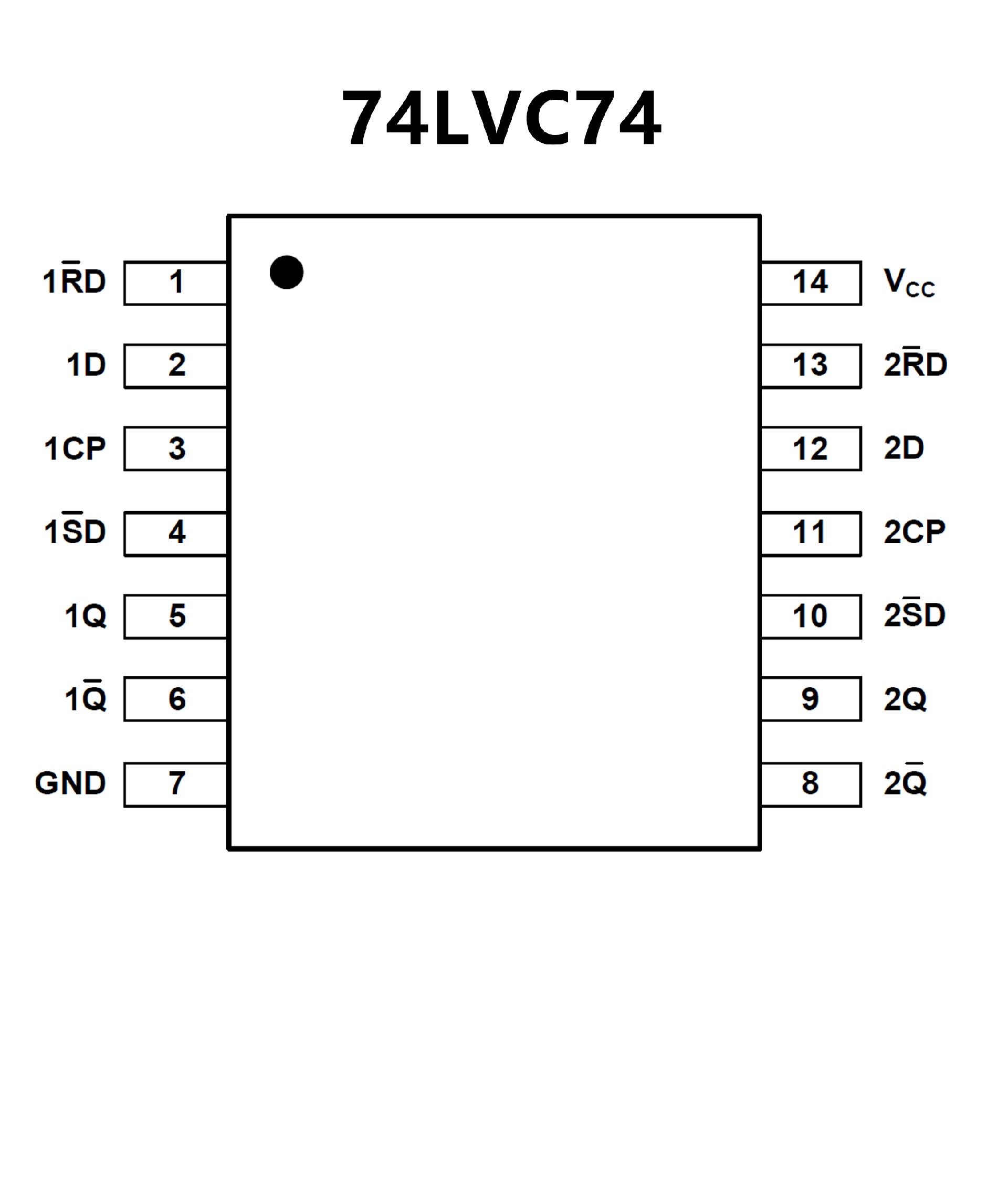

PIN CONFIGUTION
優勢替代
FEATURES
? Operating Range 2-V to 5.5-V VCC
? Latch-Up Performance Exceeds 250 mA Per JESD 17
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)

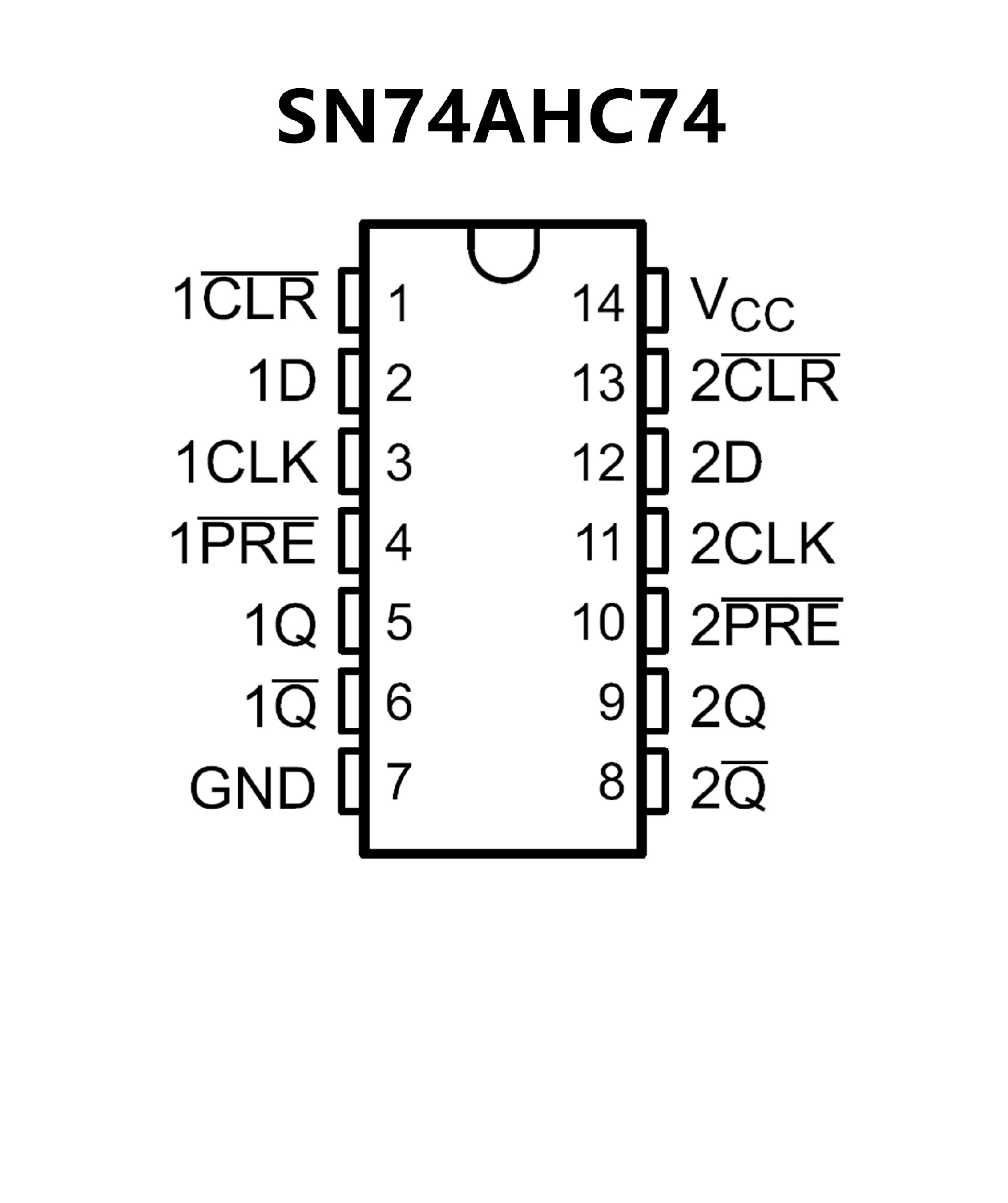

PIN CONFIGUTION
