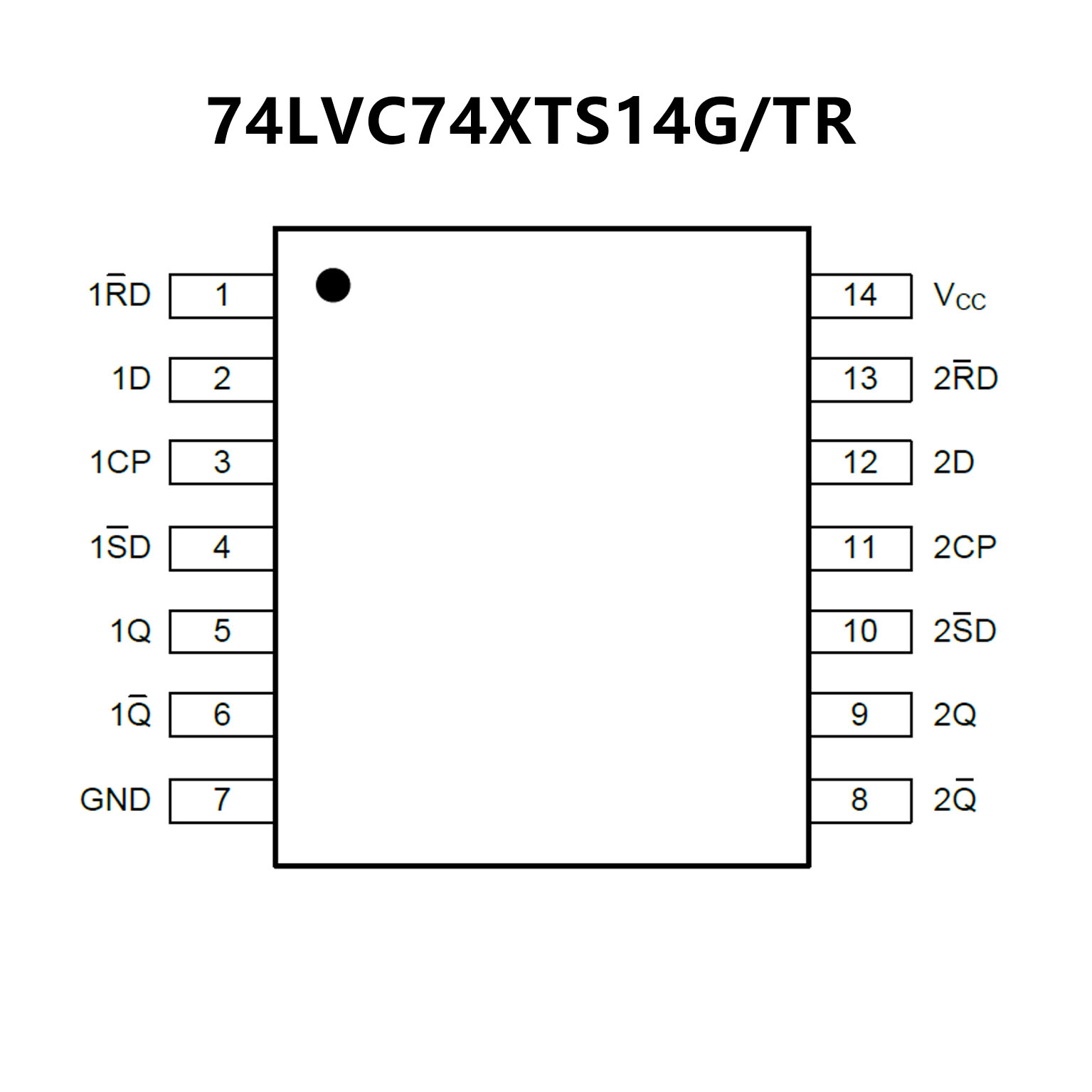

74LVC74XTS14GTR.pdf? 5V Tolerant Inputs for Interfacing with 5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low Power Consumption
? Direct Interface with TTL Levels
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TSSOP-14 Package

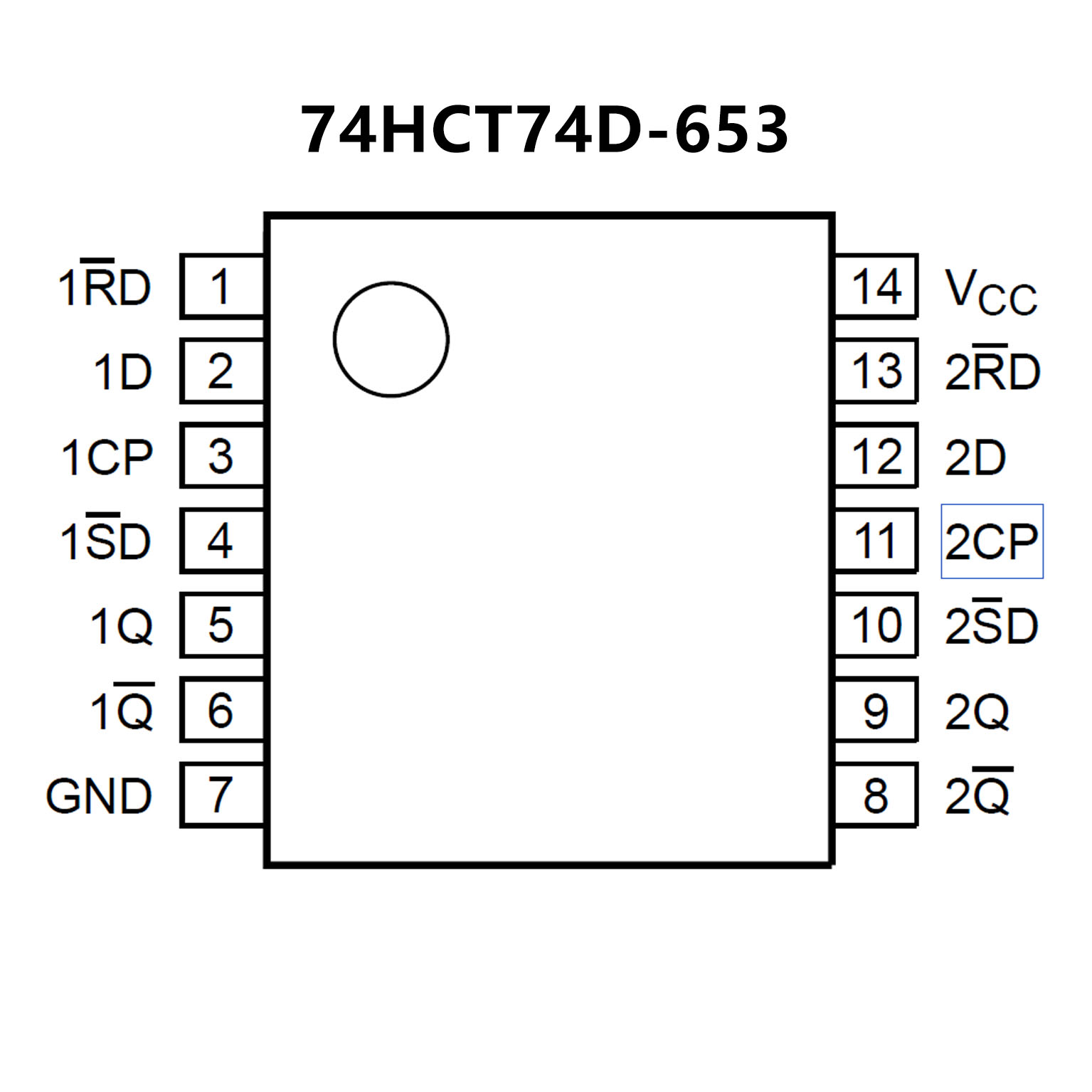

? Wide supply voltage range from 2.0 to 6.0 V
? CMOS low power dissipation
? High noise immunity
? Input levels:
? For 74HC74: CMOS level
? For 74HCT74: TTL level
? Symmetrical output impedance
? High noise immunity
? Balanced propagation delays
? Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
? Complies with JEDEC standards:
? JESD8C (2.7 V to 3.6 V)
? JESD7A (2.0 V to 6.0 V)
? ESD protection:
? HBM JESD22-A114F exceeds 2000 V
? MM JESD22-A115-A exceeds 200 V
? Multiple package options
? Specified from -40 °C to +85 °C and from -40 °C to +125 °C
