Octal Buffer/Line Driverwith 3-State Outputs,74LVCN244 Replace MM74HCT244.
74LVCN244
74LVCN244.pdf
74LVCN244.pdfFEATURES
? 5V Tolerant Inputs/Outputs for Interfacing with5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low-Power Consumption
? Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5.5V
? High-Impedance When VCC = 0V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-20 Package

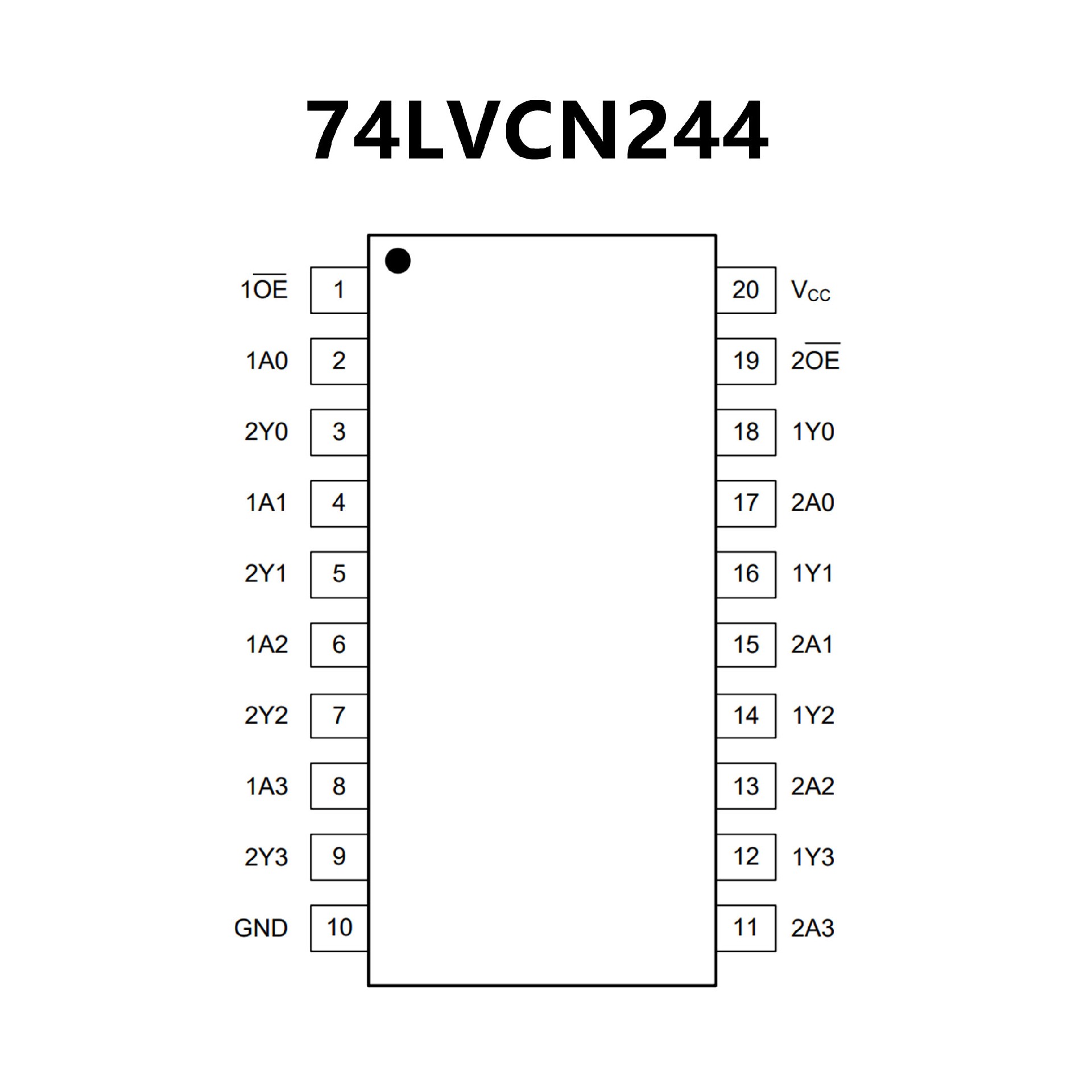

PIN CONFIGUTION
優勢替代
FEATURES
? TTL input compatible
? Typical propagation delay: 14 ns
? 3-STATE outputs for connection to system buses
? Low quiescent current: 80 PA
? High output drive current: 6 mA (min)

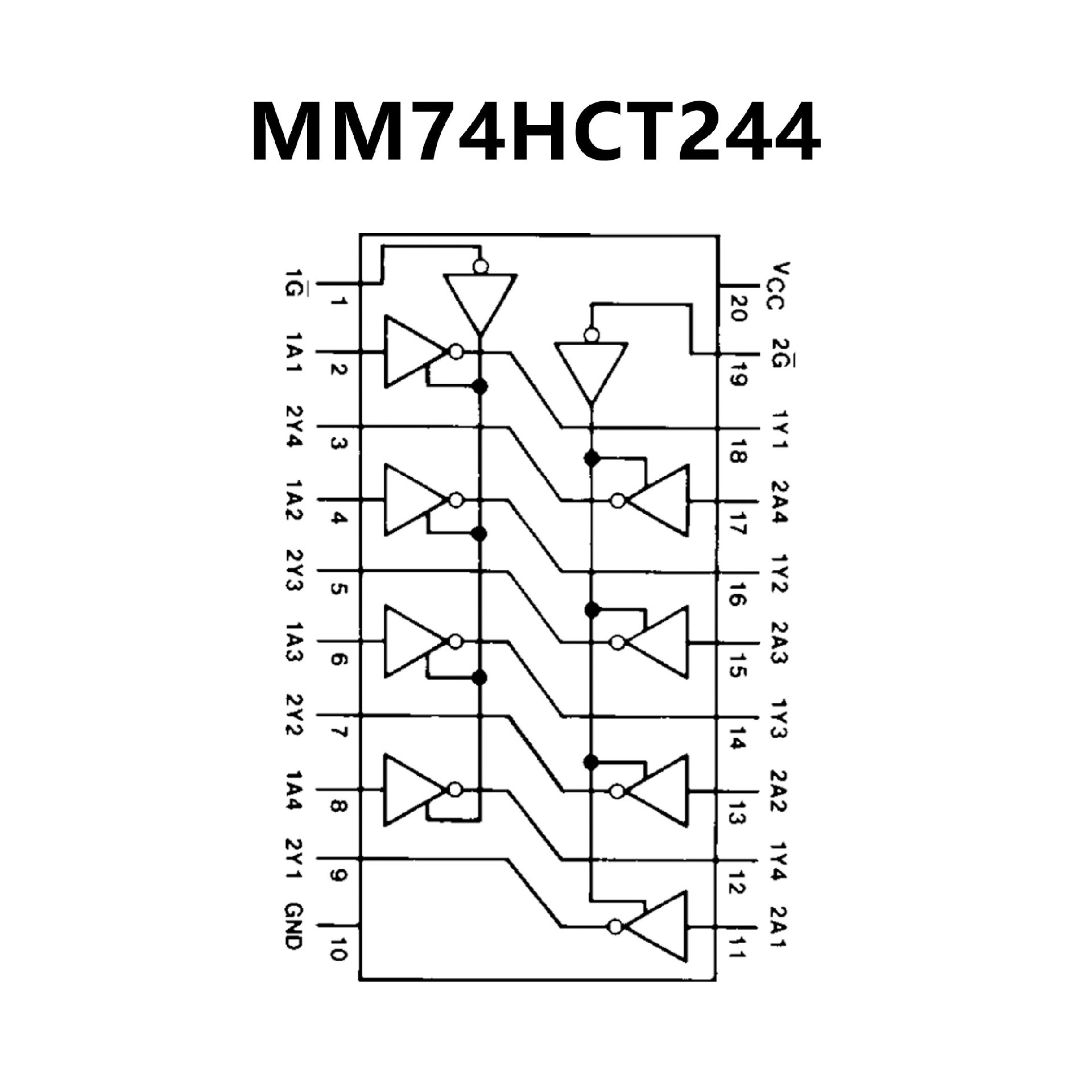

PIN CONFIGUTION
