74LVCN244.pdf? 5V Tolerant Inputs/Outputs for Interfacing with
5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low-Power Consumption
? Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5.5V
? High-Impedance When VCC = 0V
? -40℃ to +125℃ Operating Temperature Range

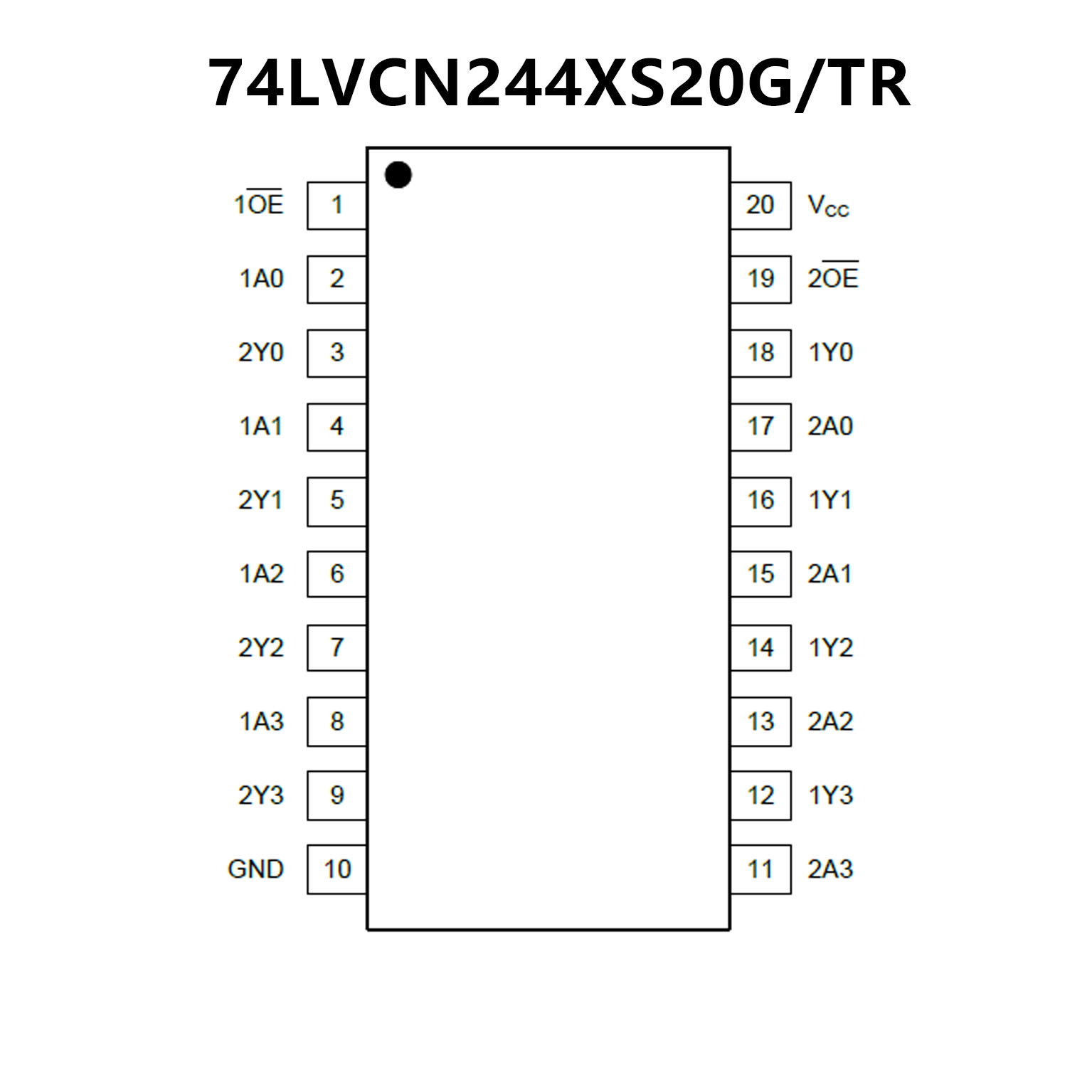

? Available in a Green SOIC-20 Package
? 5v tolerant inputs and outputs
? high speed :
TPD = 6.5 ns (max.) At Vcc = 3V
? power down protection on inputs and outputs
? symmetrical output impedance:
IOH|=IOL = 24ma (MIN) at VCC = 3V
? pci bus levels guaranteed at 24 ma
? balanced propagation delays: tPLH ? t PHL
? operating voltage range:
Vcc(OPR) = 2.0Vto 3.6V(1.5v data retention)

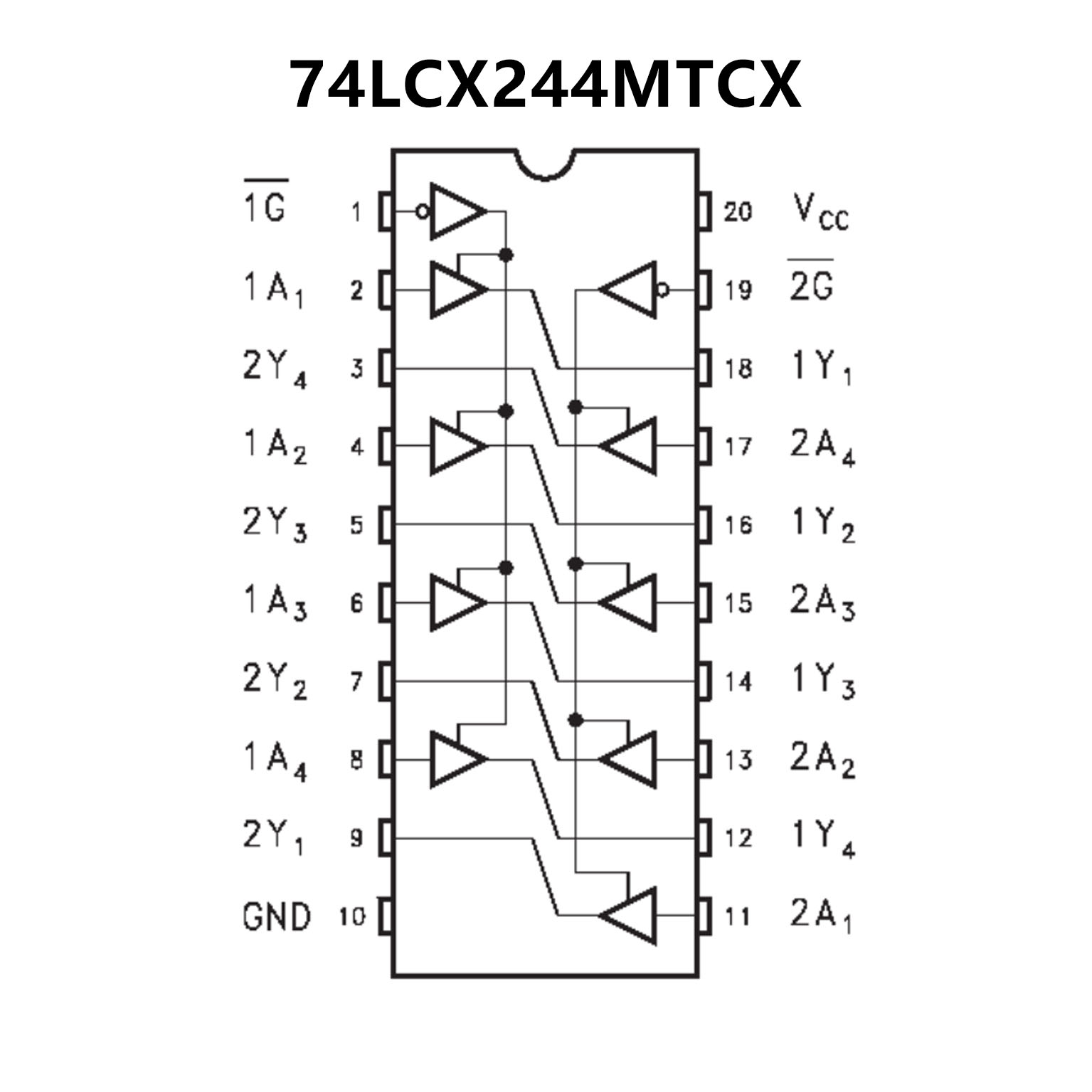

? pin and function compatible with 74 series 244
? latch-up performance exceeds 500ma (jesd 17)
? esd performance:
hbm > 2000V(mil std 883 method 3015); mm > 200V
