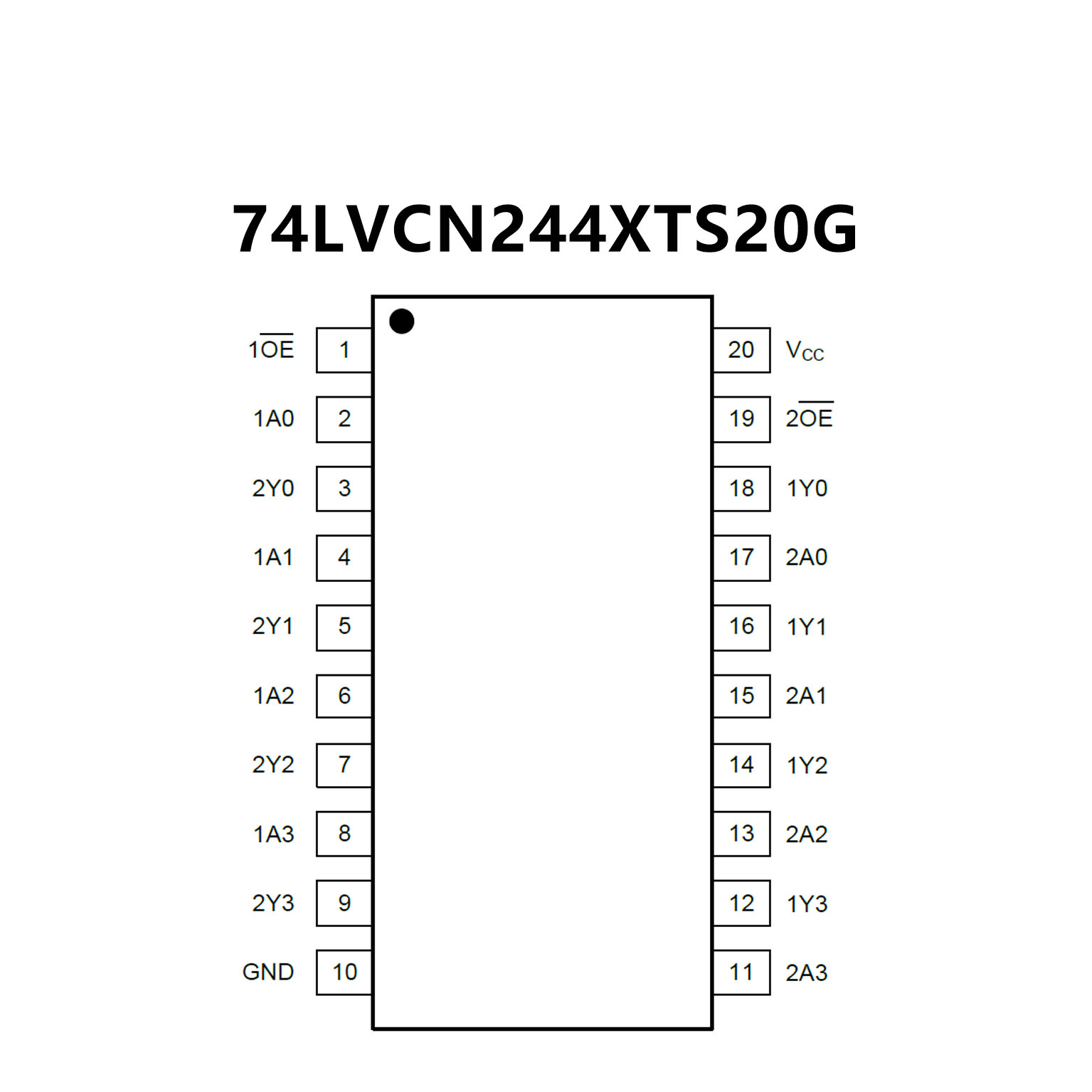

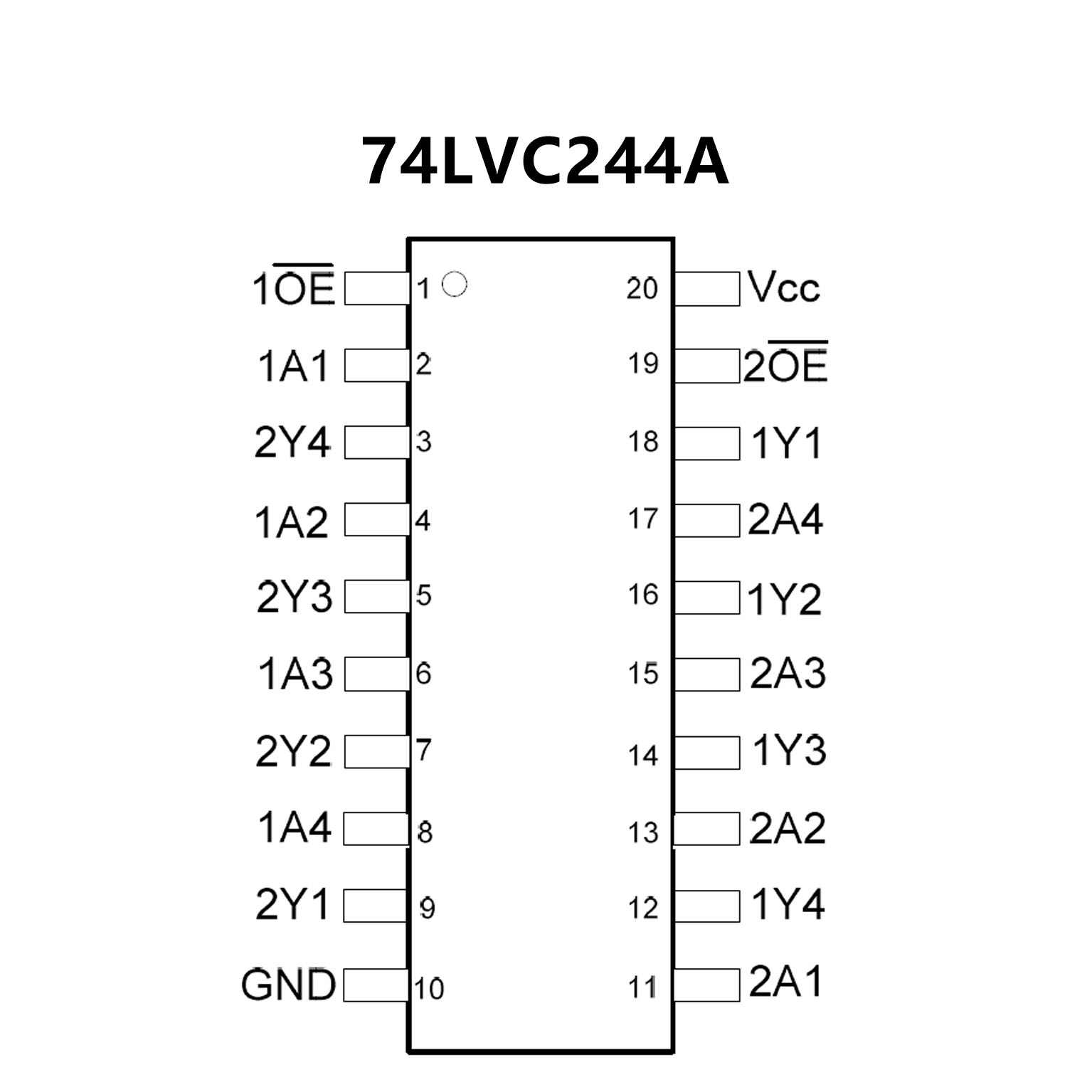

74LVCN244XTS20G.pdf? 5V Tolerant Inputs/Outputs for Interfacing with
5V Logic
? Wide Supply Voltage Range: 1.2V to 3.6V
? CMOS Low-Power Consumption
? Direct Interface with TTL Levels
? Inputs Accept Voltages up to 5.5V
? High-Impedance When VCC = 0V
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOIC-20 Package
? Supply Voltage Range from 1.65V to 3.6V
? Sinks or Sources 24ma at VCC = 3V
? CMOS Low Power Consumption
? IOFF Supports Partial - Power Down Operation
? Inputs or Outputs Accept up to 5.5V
? Inputs can be Driven by 3.3V or 5V Allowing for
Mixed Voltage Applications
? Schmitt Trigger Action at All Inputs
? Typical VOLP (Quiet Output Ground Bounce)
Less than 0.8V with VCC = 3.3V and TA = +25°C
? Typical VOHV (Quiet Output Dynamic VOH)
Greater than 2.0V with VCC = 3.3V and TA = +25°C
? ESD Protection Tested per JESD 22
Exceeds 200-V Machine Model (A115)
Exceeds 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
? Latch-Up Exceeds 250mA per JESD 78, Class
? All devices are:
Totally Lead-Free & Fully RoHS compliant (Notes 1 & 2)
Halogen and Antimony Free. “Green” Device (Note 3)
