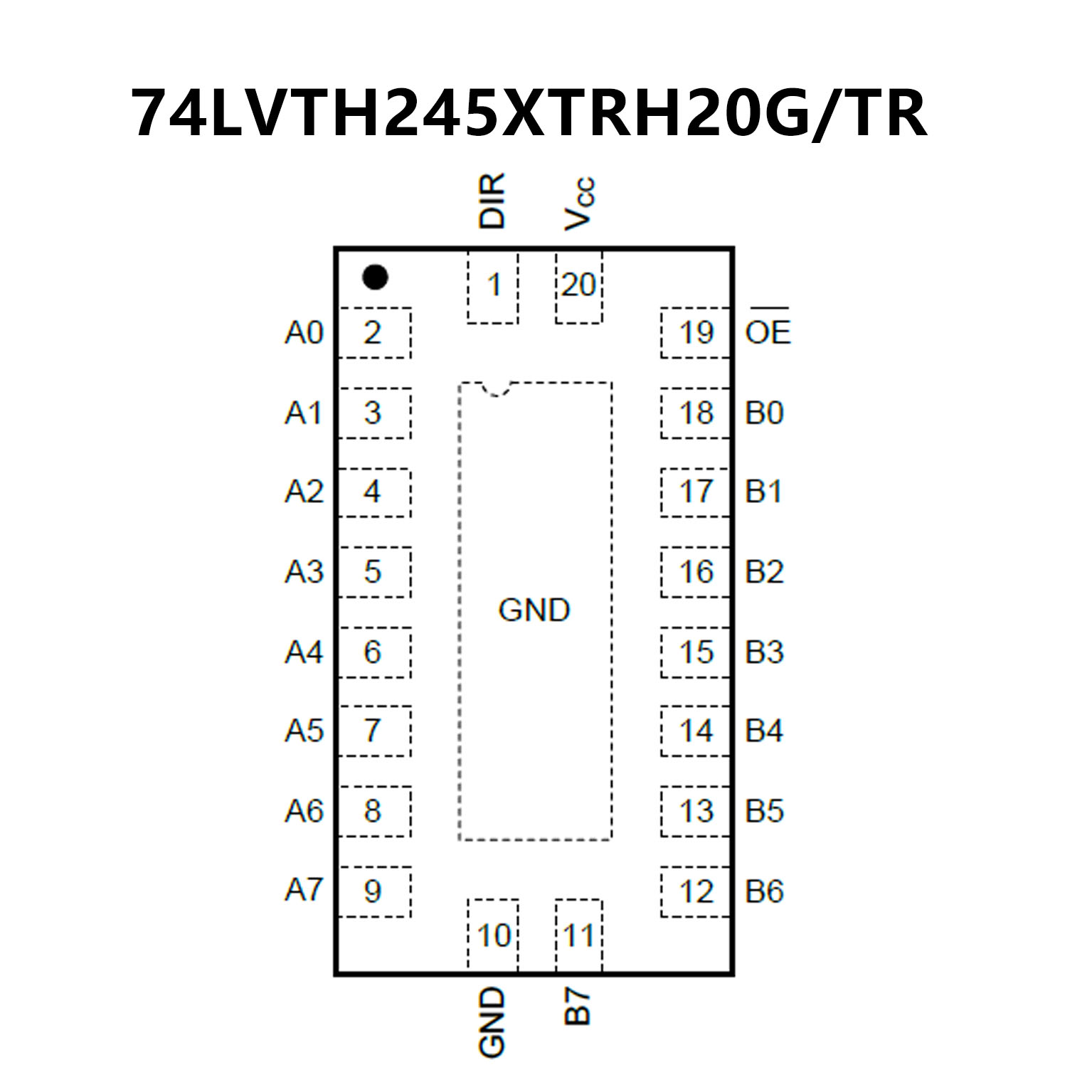

74LVTH245.pdf? Wide Operating Voltage Range: 2.7V to 3.6V
? Input and Output Interface Capability to 5V
System Environment
? +64mA-32mA Output Current
? 3-State Outputs Drive Bus Lines Directly
? Power-up and IOFF 3-State
? Bus Hold-on Data Inputs with No Need for
External Pull-upPull-down Resistors
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TQFN-4.5×2.5-20L Package

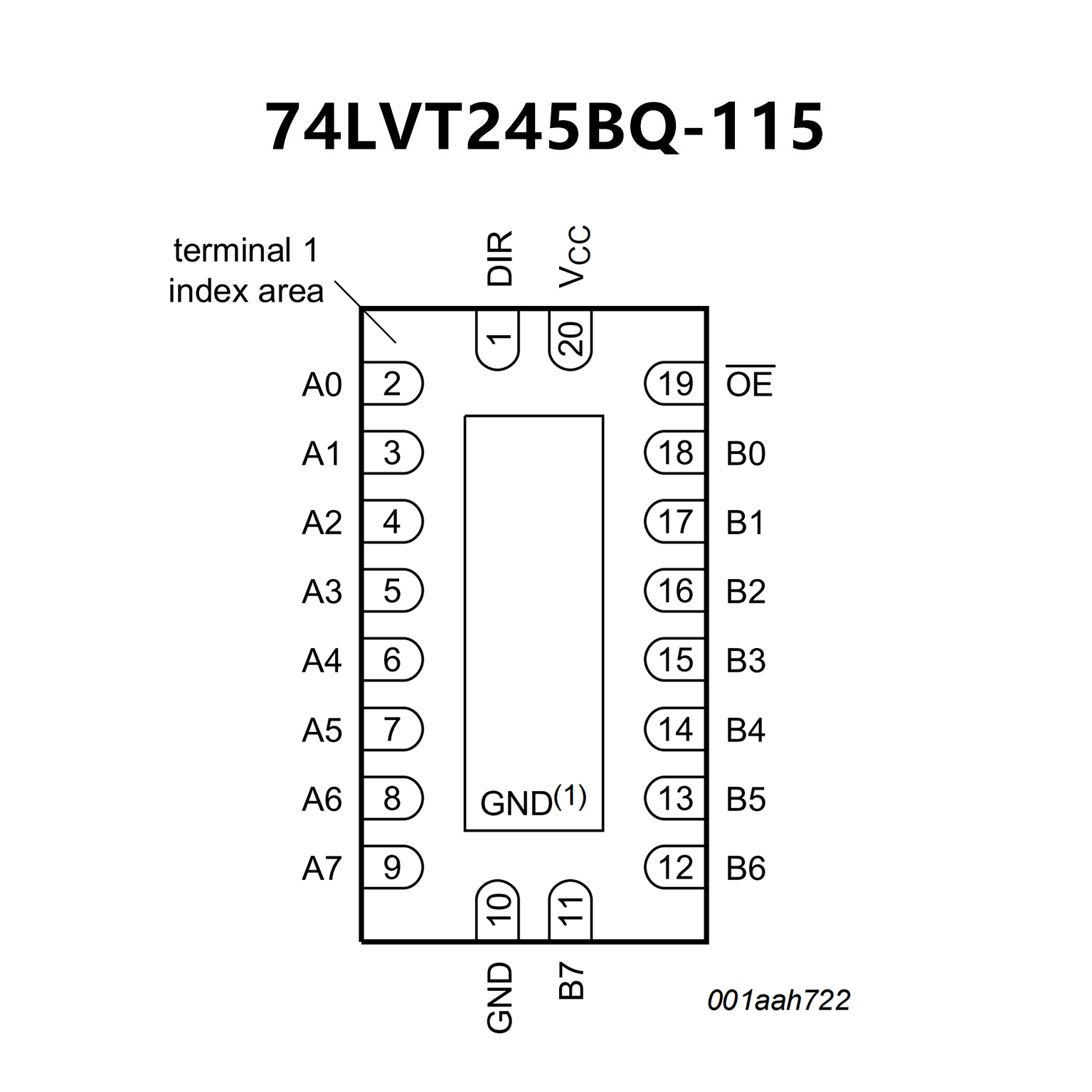

? Wide supply voltage range from 2.7 to 3.6 V
? 3-state buffers
? Octal bidirectional bus interface
? Overvoltage tolerant inputs to 5.5 V
? Direct interface with TTL levels
? BiCMOS high speed and output drive
? Output capability: +64 mA-32 mA
? Latch-up protection exceeds 500 mA per JESD78 class II level A
? Bus-hold data inputs eliminate the need for external
pull-up resistors for unused inputs
? No bus current loading when output is tied to 5 V bus
? Live insertionextraction permitted
? Power-up 3-state
? IOFF circuitry provides partial Power-down mode operation
? Complies with JEDEC standards JESD8C (2.7 V to 3.6 V)
? ESD protection:
HBM JESD22-A114E exceeds 2000 V
MM JESD22-A115-A exceeds 200 V
? Specified from -40 °C to 85 °C
