600mA, Low Quiescent Current, Fast Transient Low Dropout Linear Regulator, ACP1224 P2P AP7365.
ACP1224.pdf優勢替代
FEATURES
? 600mA Low Dropout Regulator with EN
? Very low IQ: 35μA
? Wide input voltage range: 2V to 6V
? Wide adjustable output: 0.8V to 5.0V
? Fixed output options: 0.8V to 3.9V (0.1V step size
possible)
? High PSRR: 65dB at 1kHz
? Fast start-up time: 200μs
? Stable with low ESR, 1μF ceramic output capacitor
? Excellent Load/Line Transient Response
? Low dropout: 300mV at 600mA
? Current limit and short circuit protection
? Thermal shutdown protection
? Ambient temperature range: -40oC to 85oC
? SOT25, SOT89/R-3L, SOT223/R-3L, DFN2020-6:
Available in “Green” Molding Compound (No Br, Sb)
? Lead Free Finish/ RoHS Compliant (Note 1)

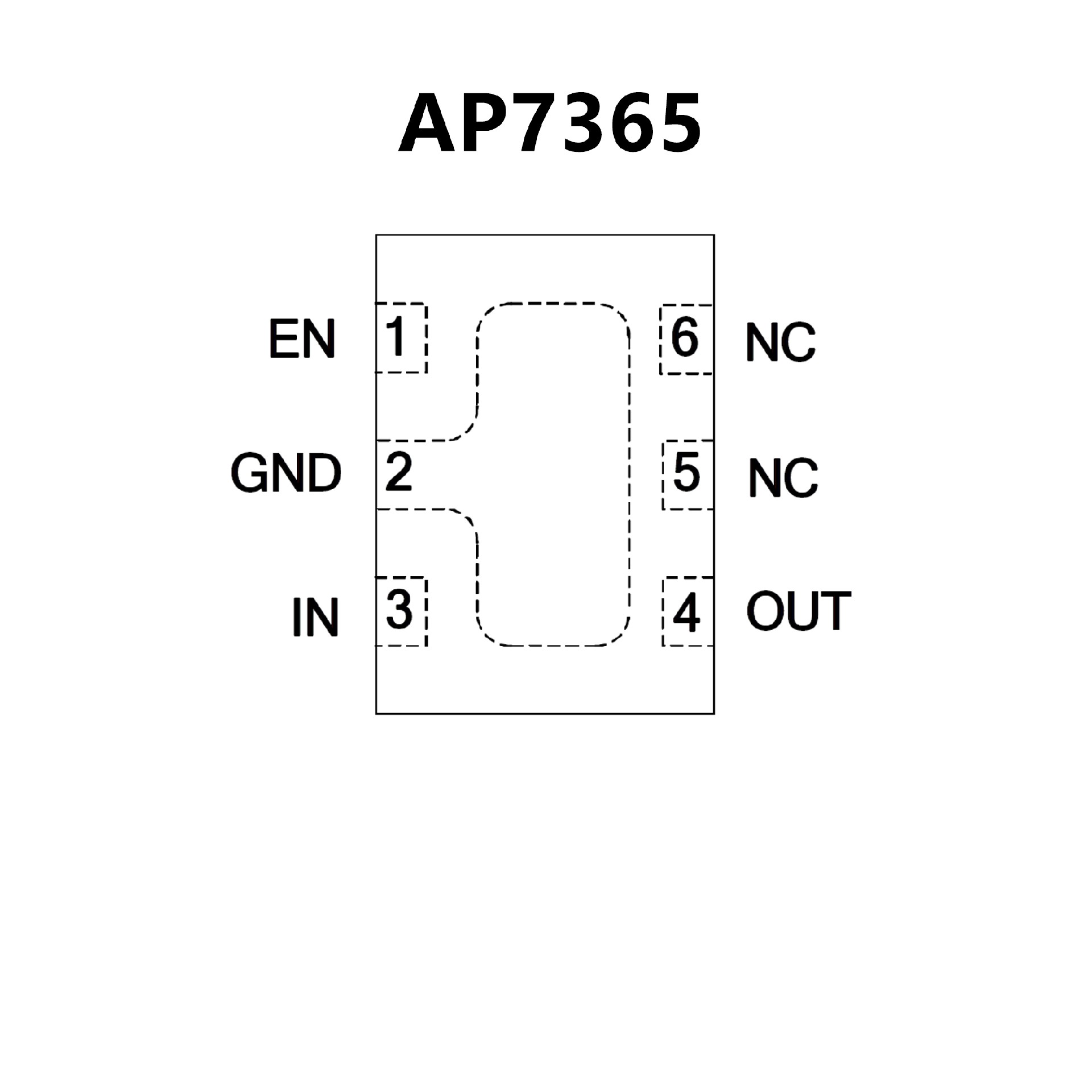

PIN CONFIGUTION
