Current Limited IC, VIN 2.4V~5.5V, ILIM 1.5A, Active High, SOT23-5, ACP1252A Replace MP62055.
ACP1252A
ACP1252A.pdf
ACP1252A.pdfFEATURES
? 2.7V to 5.5V Input Voltage Range
? 2.1A Accurate Current Limiting Threshold
? Fast Transient Response:
? Max 1A quiescent current with shutdown
? Low 90m Typical RDS(ON)
? Reverse Current Blocking
? Thermal Shutdown and Over-current Protection
? Fault report with 8ms typical blanking time
? -40 to 85°C Operation Temperature range
? Available in SOT23-5L and DFN2018-6L package

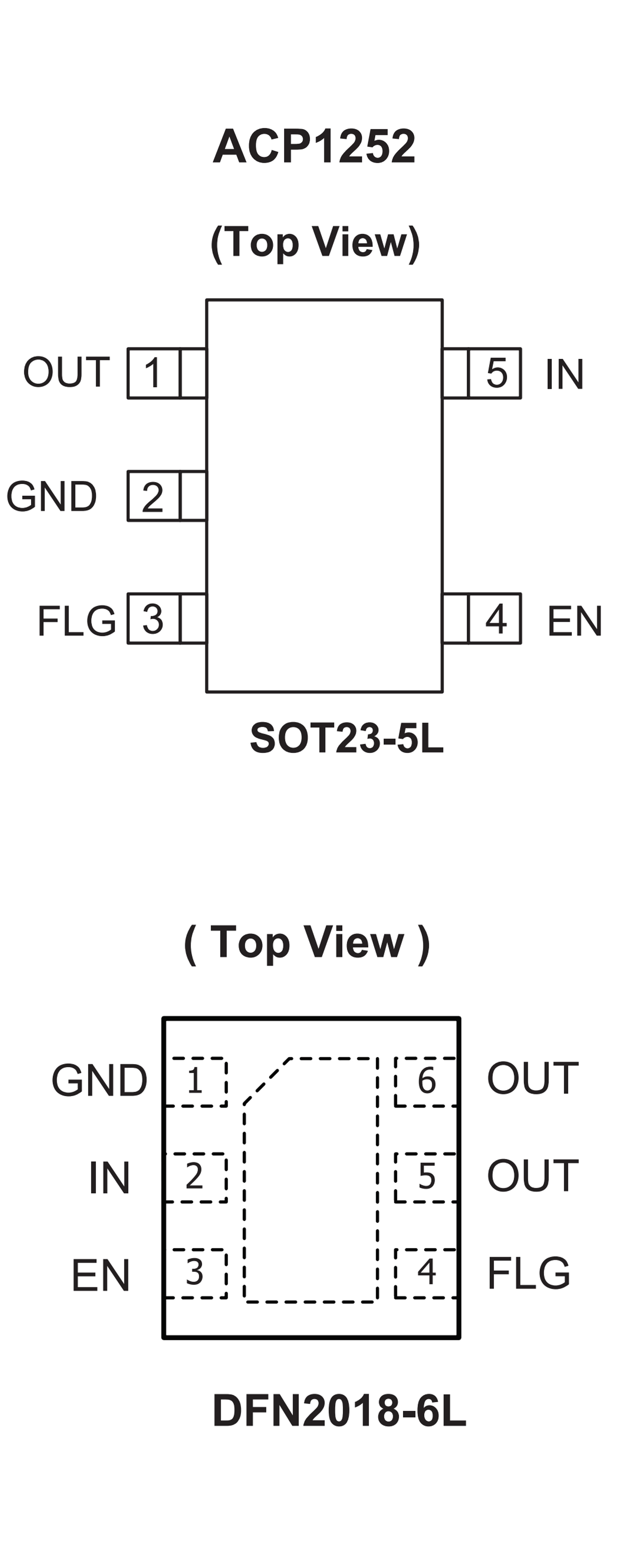

PIN CONFIGUTION
優勢替代
FEATURES
? 500mA Continuous Current
? Accurate Current Limit
? 2.7V to 5.5V Supply Range
? 90uA Quiescent Current
? 115m? MOSFET
? Thermal-Shutdown Protection
? Under-Voltage Lockout
? 8ms FLAG Deglitch Time
? No FLAG Glitch During Power Up
? Reverse Current Blocking
? TSOT23-5 Package
? UL File # E322138

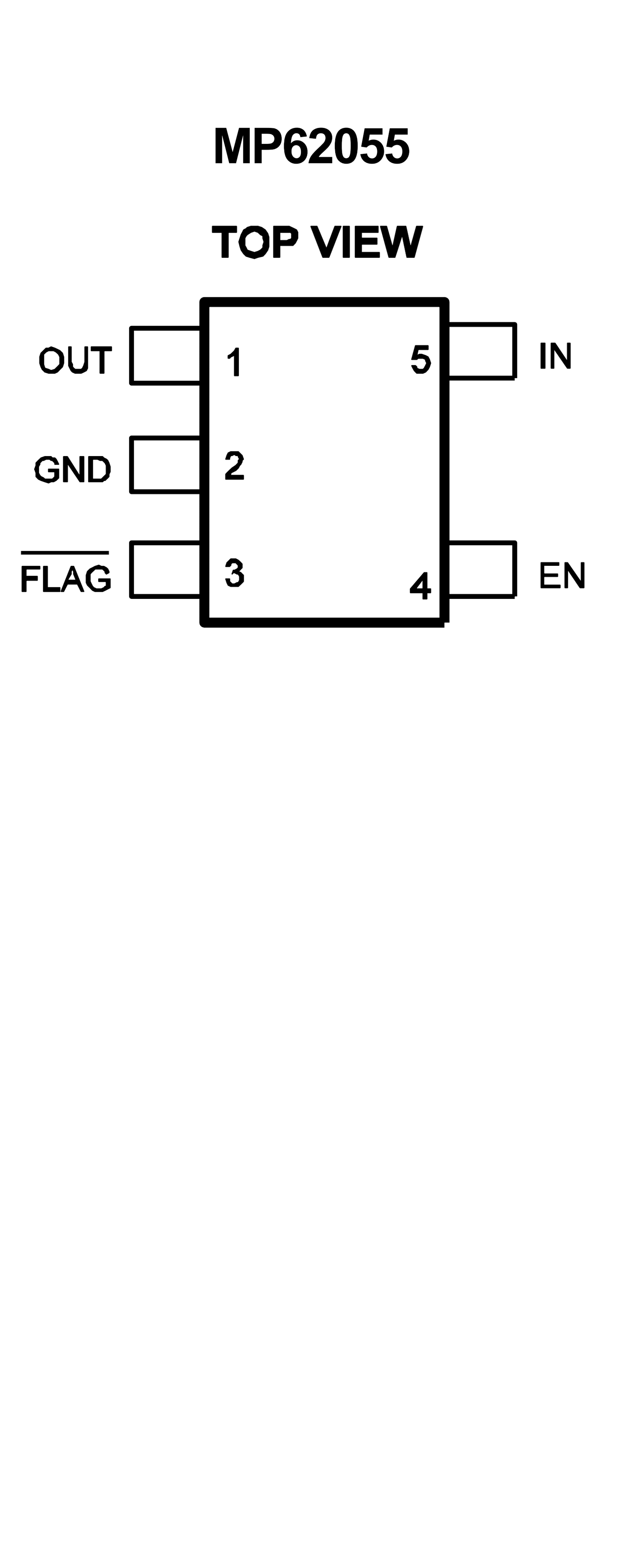

PIN CONFIGUTION
