2A Synchronous Buck DC/DC Converter,ACP2826 Replace ZPT7108.
ACP2826
ACP2826.pdf
ACP2826.pdfFEATURES
? Operating Voltage Range: 2.4V ~ 6V
? Adjustable Output with 0.6V Reference Voltage
? Guaranteed 2A Output Current
? Automatic PFM Mode at Light Load
? Low dropout 100% Duty Operation
? High 1MHz Operating Frequency
? Maximum 1μA Shutdown Current
? Internal Soft Start Function
? Excellent Line and Load Transient Response
? Short Circuit Protection
? Input Over Voltage Protection
? Under Voltage Lockout Protection
? Thermal Shutdown Protection

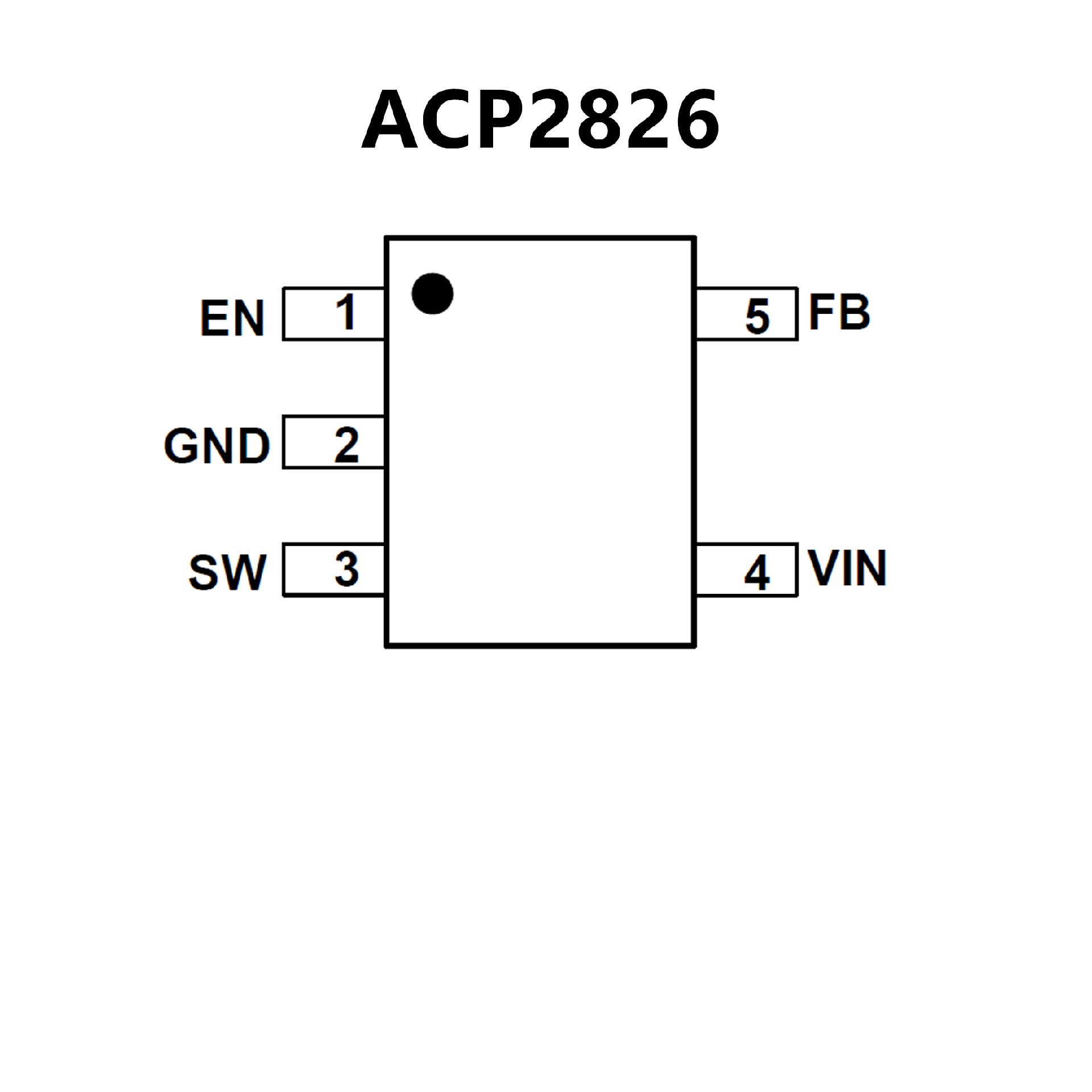

PIN CONFIGUTION
