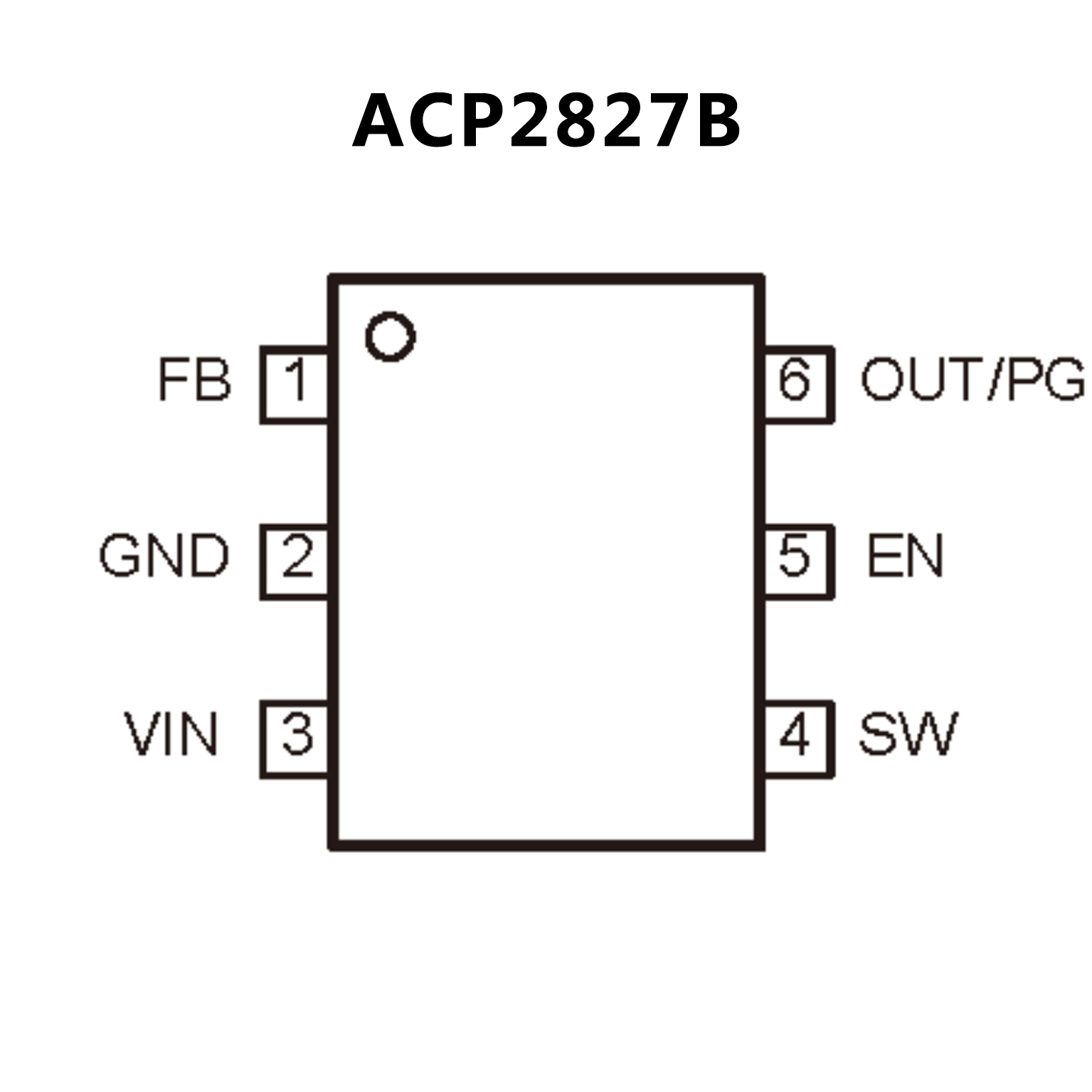

ACP2827B.pdf? VIN : 2.3V to 5.5V
? Output Voltage (VOUT) : 0.6V to 3.6V
? 1A Continuous Output Current
? 0.6V ± 2% Reference Voltage
? 15μA Low Quiescent Current
? 2.2MHz Switching Frequency (VIN = 5V, VOUT= 1.8V)
? Up to 89% Efficiency at 5mA Light Load
? Programmable PFM/PWM Mode Through EN Pin
? Power Good Indicator(ACP2827B)
? Under Voltage Lockout (UVLO)
? VIN Over Voltage Protection (OVP)
? Peak Current Limit
? Valley Current Limit
? Thermal Shutdown
? Forced PWM to Reduce Output Voltage Ripple
? Up to 95% Efficiency
? Low RDS(ON) Switches 100 mΩ / 60 mΩ
? 2.5-V to 5.5-V Input Voltage Range
? Adjustable Output Voltage from 0.6 V to VIN
? 100% Duty Cycle for Lowest Dropout
? 1.5-MHz Typical Switching Frequency
? Power Good Output
? Over Current Protection
? Internal Soft Startup
? Thermal Shutdown Protection
? Available in SOT563 Package
