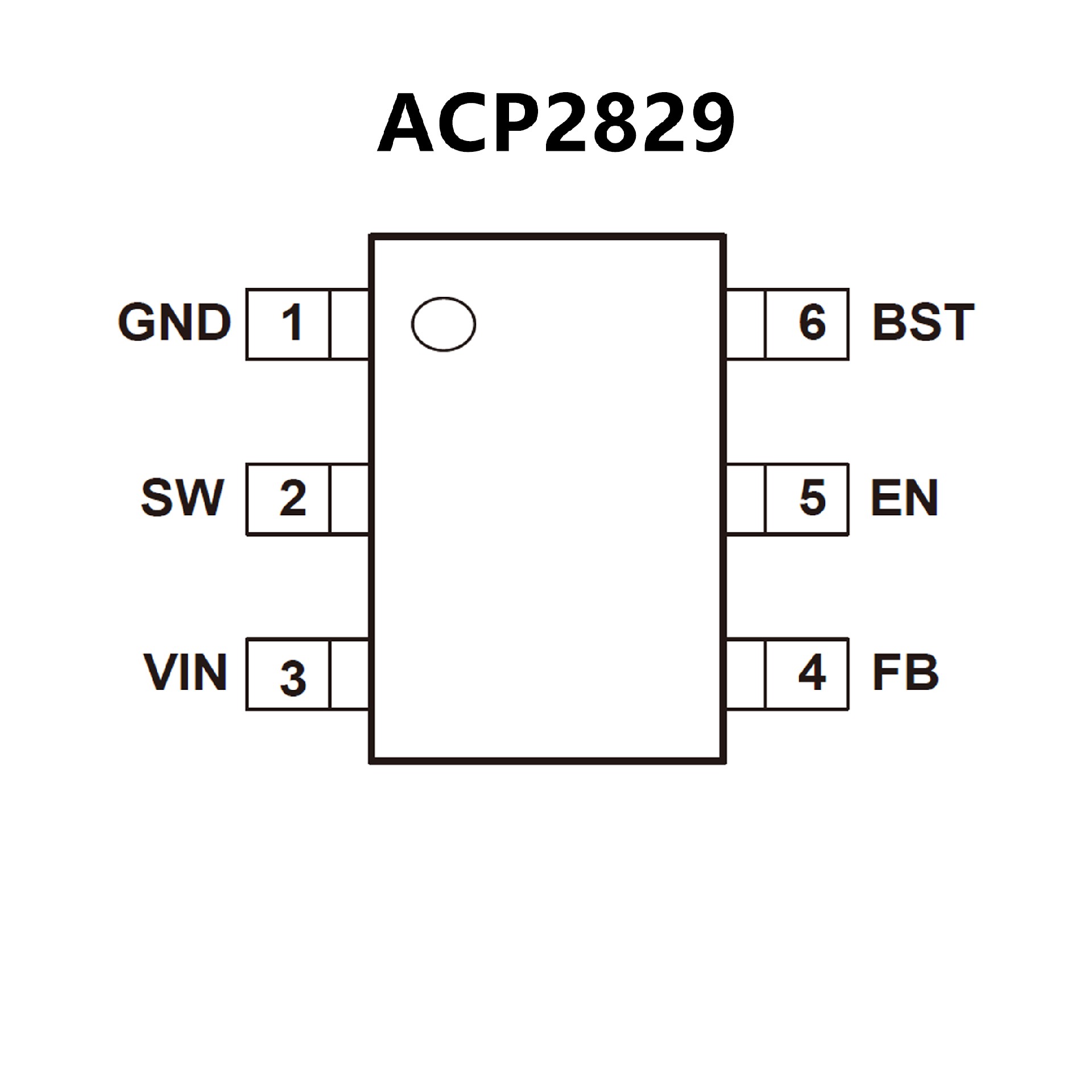

ACP2829.pdf? VIN : 4.2V to 18V
? Output Voltage (VOUT) : 0.8V to 7V
? 2A Continuous Output Current
? 0.8V ± 1% Reference Voltage
? 150μA Low Quiescent Current
? 750KHz Switching Frequency (VIN = 12V, VOUT= 5V)
? Typically 85% Efficiency at 5mA Light Load
? Proprietary Gate Driver Design for Best EMI
Reduction
? Under Voltage Lockout (UVLO)
? Cycle-by-Cycle Valley Current Limit
? Thermal Shutdown
? Low RDS(ON) Integrated Power MOSFET
(145mΩ/90mΩ)
? Internal Compensation Function

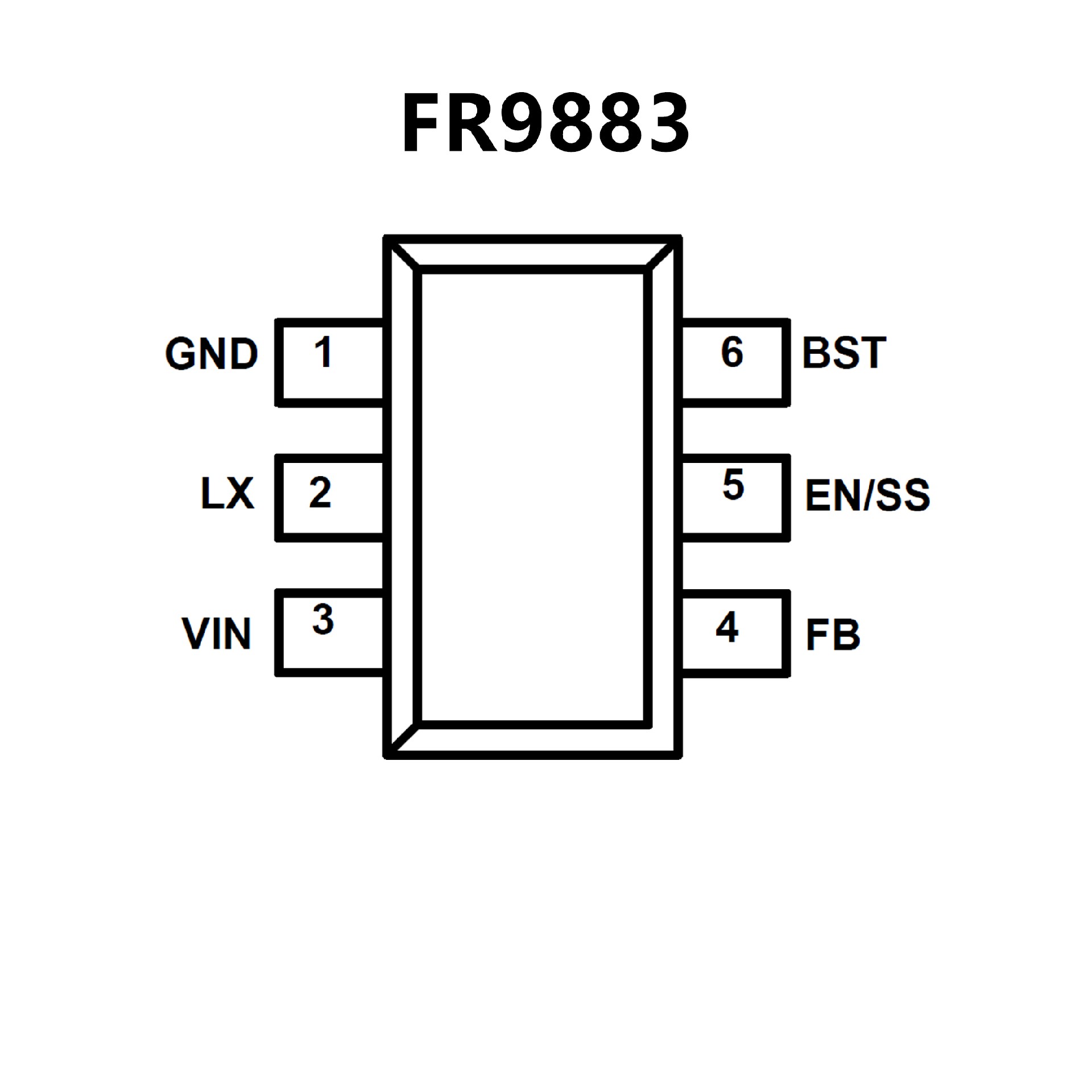

? Wide Input Voltage Range: 4.5V to 18V
? 0.8V Reference Voltage
? 2A Output Current
? 500kHz Switching Frequency
? Soft-Start Time Depends on EN/SS Resistor
Adjustment
? Input Under Voltage Lockout
? Cycle-by-Cycle Current Limit
? Hiccup Short Circuit Protection
? Over-Temperature Protection with Auto
Recovery
? SOT-23-6 Package
