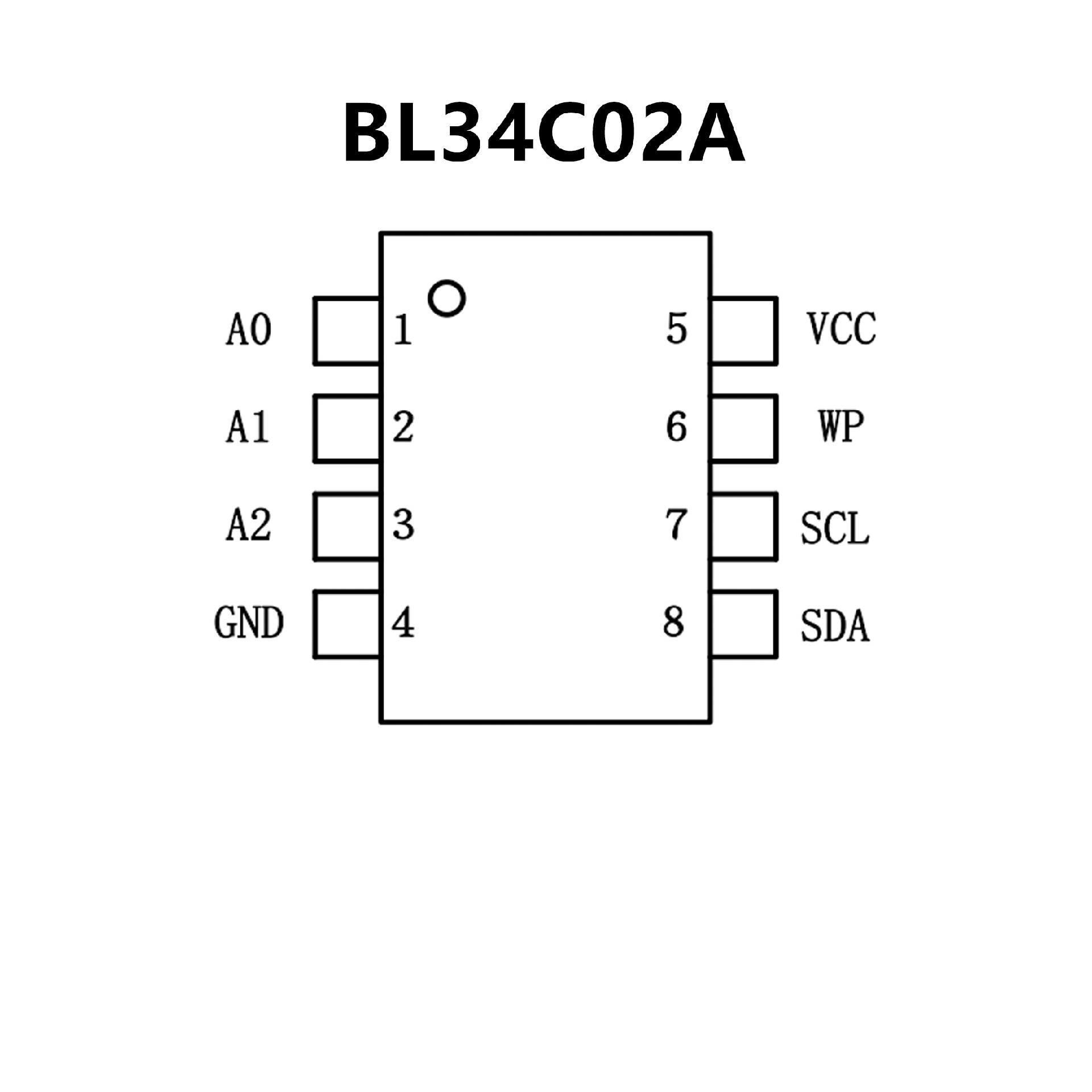

BL34C02A.pdf? Compatible with SMBus serial interface:
Up to 400 KHz transfer rate
? Memory array:
2 Kbits organized as two 128-byte blocks
? Software data protection for lower 128-byte
block
? Write:
Byte Write within 3 ms
16 bytes Page Write within 3 ms
? Schmitt Trigger, Filtered Inputs for Noise
Suppression
? Single supply voltage:
1.7 V to 3.6 V
? High-reliability
Endurance: 1 Million Write Cycles
Data Retention: 100 Years
? Enhanced ESD/latch-up protection
HBM 6000V
? Supports Standard and Fast I2C Protocol
? 1.7 V to 5.5 V Supply Voltage Range
? 16?Byte Page Write Buffer
? Hardware Write Protection for Entire Memory
? Software Write Protection for Lower 128 Bytes
? Schmitt Triggers and Noise Suppression Filters on I2C Bus Inputs
(SCL and SDA)
? Low power CMOS Technology
? 1,000,000 Program/Erase Cycles
? 100 Year Data Retention
? Industrial and Extended Temperature Range
? This Device is Pb?Free, Halogen Free/BFR Free and
RoHS
Compliant*
