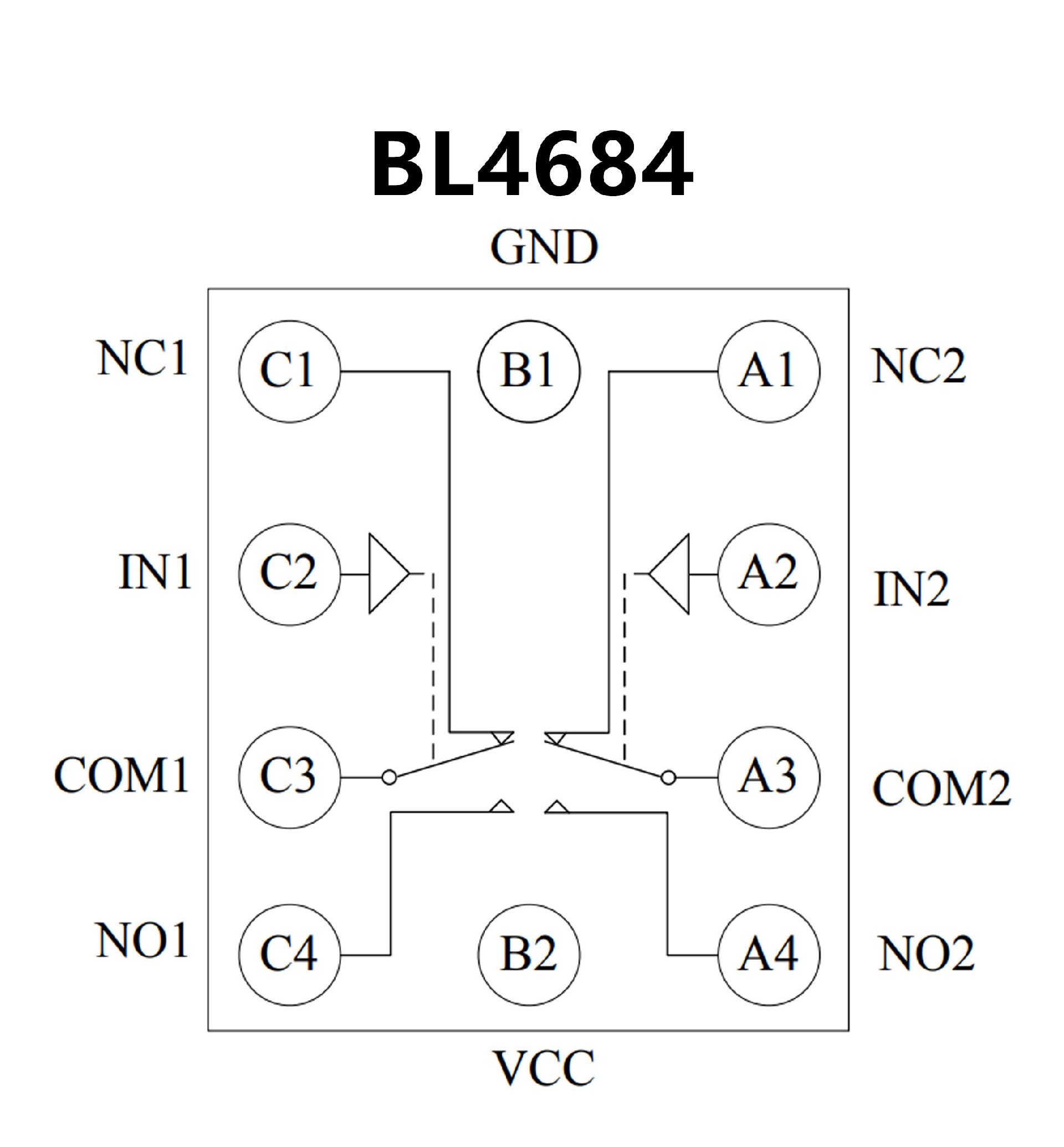

BL4684.pdf? Wide Power Supply Range:1.65V to 5.5V
? Low On-Resistance: RON(NC) = 0.4Ω
(VCC=2.7V) RON(NO) = 0.5Ω(VCC=2.7V)
? Low On-Resistance Flatness: RONF(NC) = 0.15Ω max
(VCC=2.7V) RONF(NO) = 0.25Ω max (VCC=2.7V)
? Rail-to-Rail Signal Range
? High Off-Isolation: -60dB (f=100 kHz)
? Crosstalk Rejection: -67dB
? Low Total Harmonic Distortion: 0.05%
? Lead(Pb) Free CSP-10 Packaging
? 12-Bump, 0.5mm-Pitch UCSP
? NC Switch RON

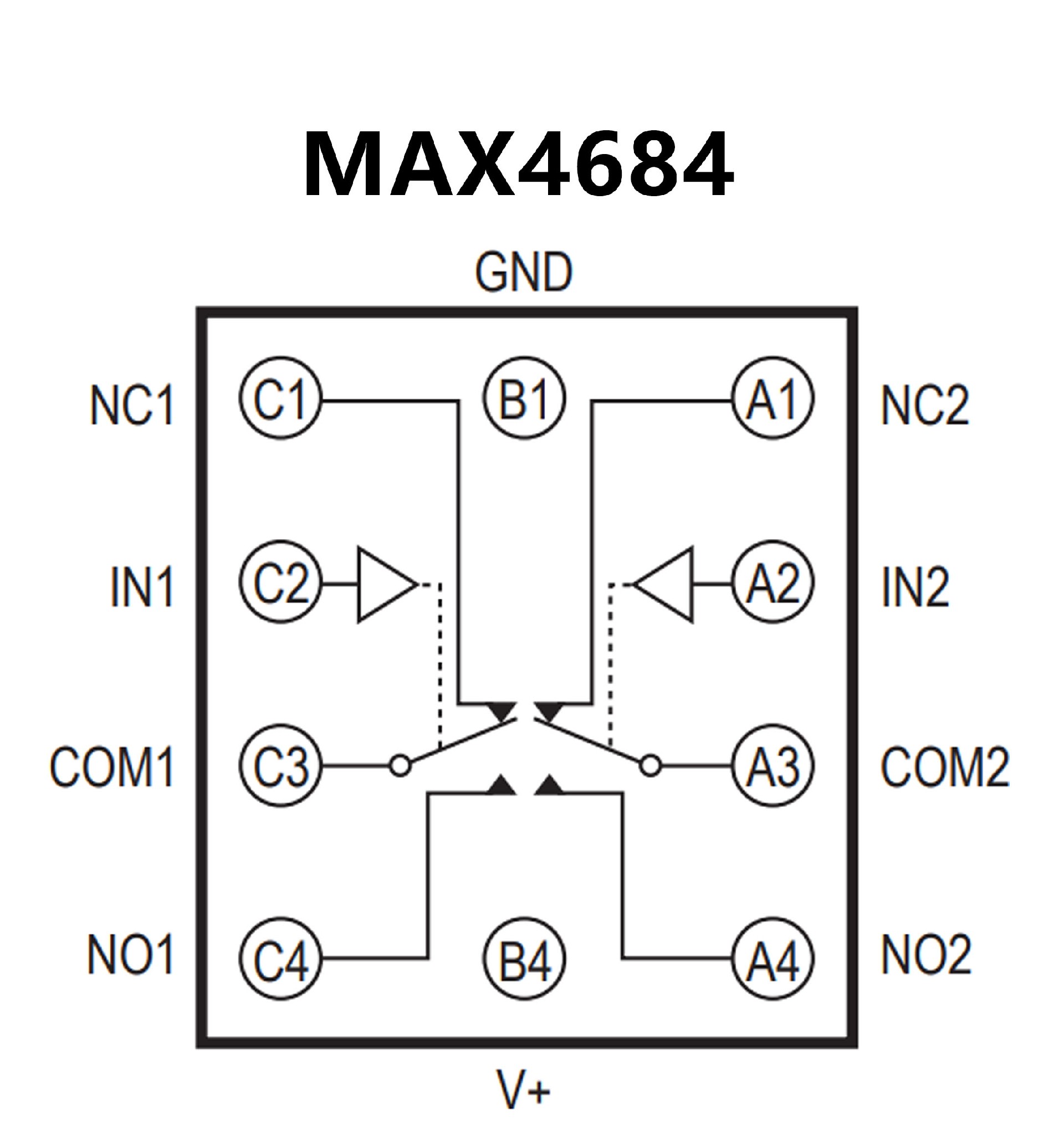

? 0.5Ω max (+2.7V Supply) (MAX4684)
? 0.8Ω max (+2.7V Supply) (MAX4685)
? NO Switch RON
? 0.8Ω max (+2.7V Supply)
? RON Match Between Channels
? 0.06Ω (max)
? RON Flatness Over Signal Range
? 0.15Ω (max)
? +1.8V to +5.5V Single-Supply Operation
? Rail-to-Rail Signal Handling
? 1.8V Logic Compatibility
? Low Crosstalk: -68dB (100kHz)
? High Off-Isolation: -64dB (100kHz)
? THD: 0.03%
? 50nA (max) Supply Current
? Low Leakage Currents
? 1nA (max) at TA = +25°C
