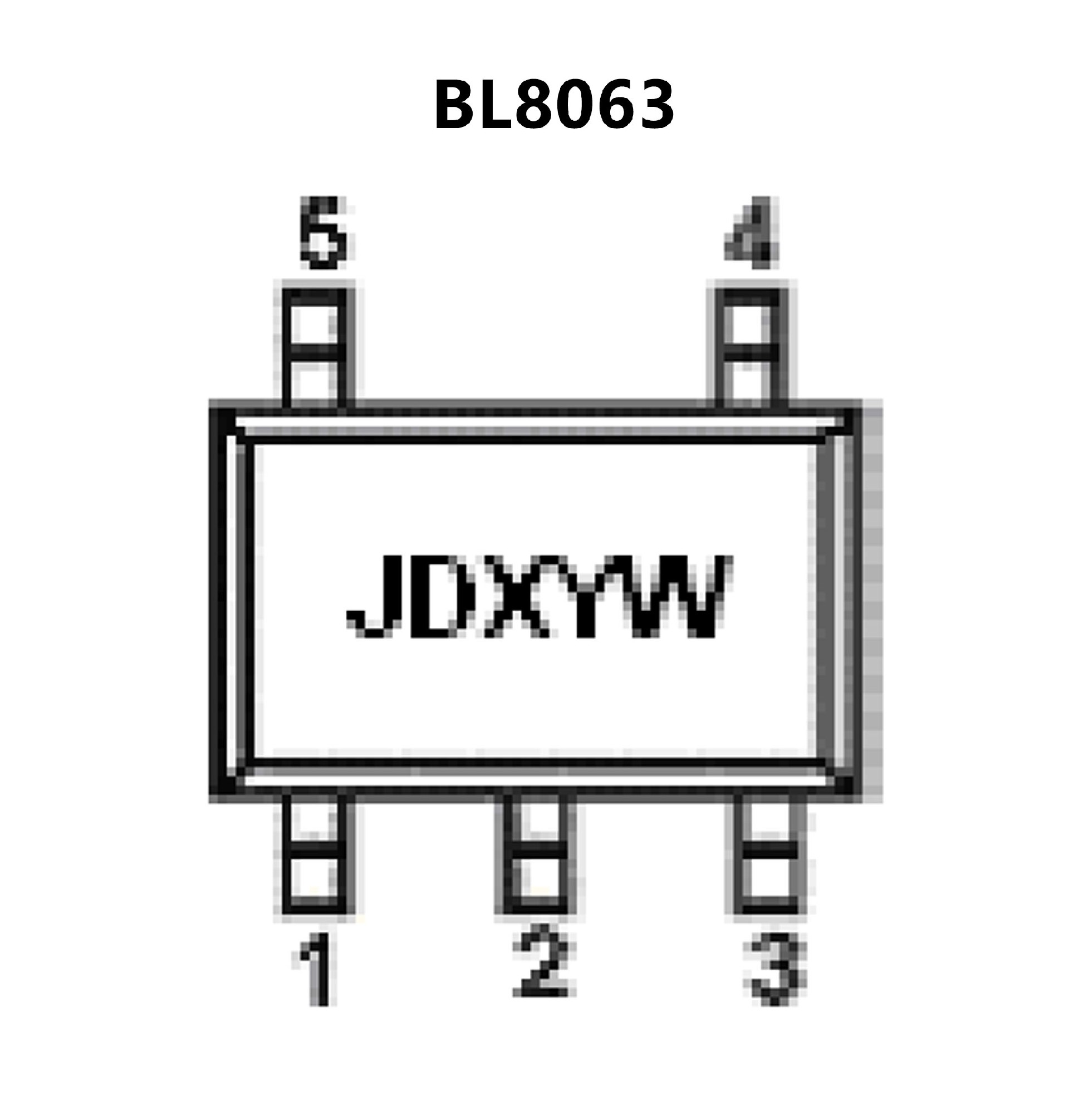

BL8063.pdf? Input voltage range: 2 – 6V
? Output voltage range: 1.0V~4.5V
(customizedon command every 0.1V step)
? Low power consumption: 35uA (Typ.)
? Low output noise (47uVRMS)
? Shutdown mode: 0.1uA
? Low dropout voltage: 300mV@300mA (Typ.)
? High ripple rejection:70dB@1KHz (Typ.)
? Low temperature coefficient: ±100ppm/℃
? Excellent line regulation: 0.05%/V
? Build-in chip enable circuit
? Highly accurate: ±2%
? Output current limit
? Fold-back output short circuit protection

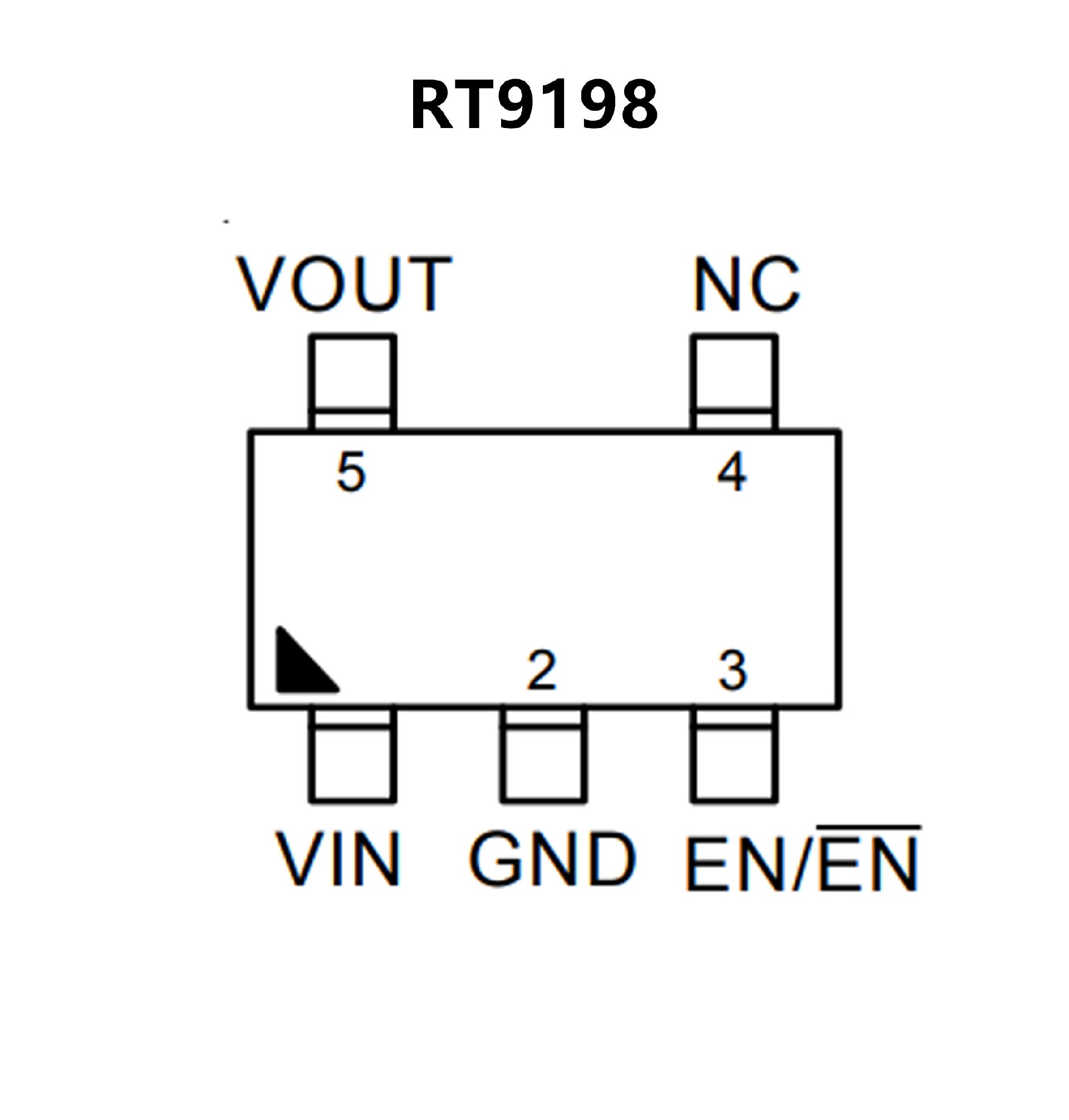

? Low-Noise for RF Application
? Fast Response in Line/Load Transient
? Quick Start-Up (Typically 50μs)
? < 0.01μA Standby Current When Shutdown
? Low Dropout : 220mV @ 300mA
? Wide Operating Voltage Ranges : 2.5V to 5.5V
? TTL-Logic-Controlled Shutdown Input
? Low Temperature Coefficient
? Current Limiting Protection
? Thermal Shutdown Protection
? Only 1μF Output Capacitor Required for Stability
? High Power Supply Rejection Ratio
? Custom Voltage Available
? RoHS Compliant and 100% Lead (Pb)-Free
