High-Precision Low Voltage Detector,BL8506 Replace R3111.
BL8506
BL8506.pdf
BL8506.pdfFEATURES
? High-precision detection Voltage：±2%
? Detection Voltage：0.9V~6.0V (in 0.1V
steps)
? Precise hysteresis：4% typ.
? Operating Voltage range：0.7V~10V
? Ultra-low current consumption：
500nAtyp. (at VDD＝3.0V)
? Two Output Forms ：CMOS(Active Low)
and N-channel open-drain(Active Low)

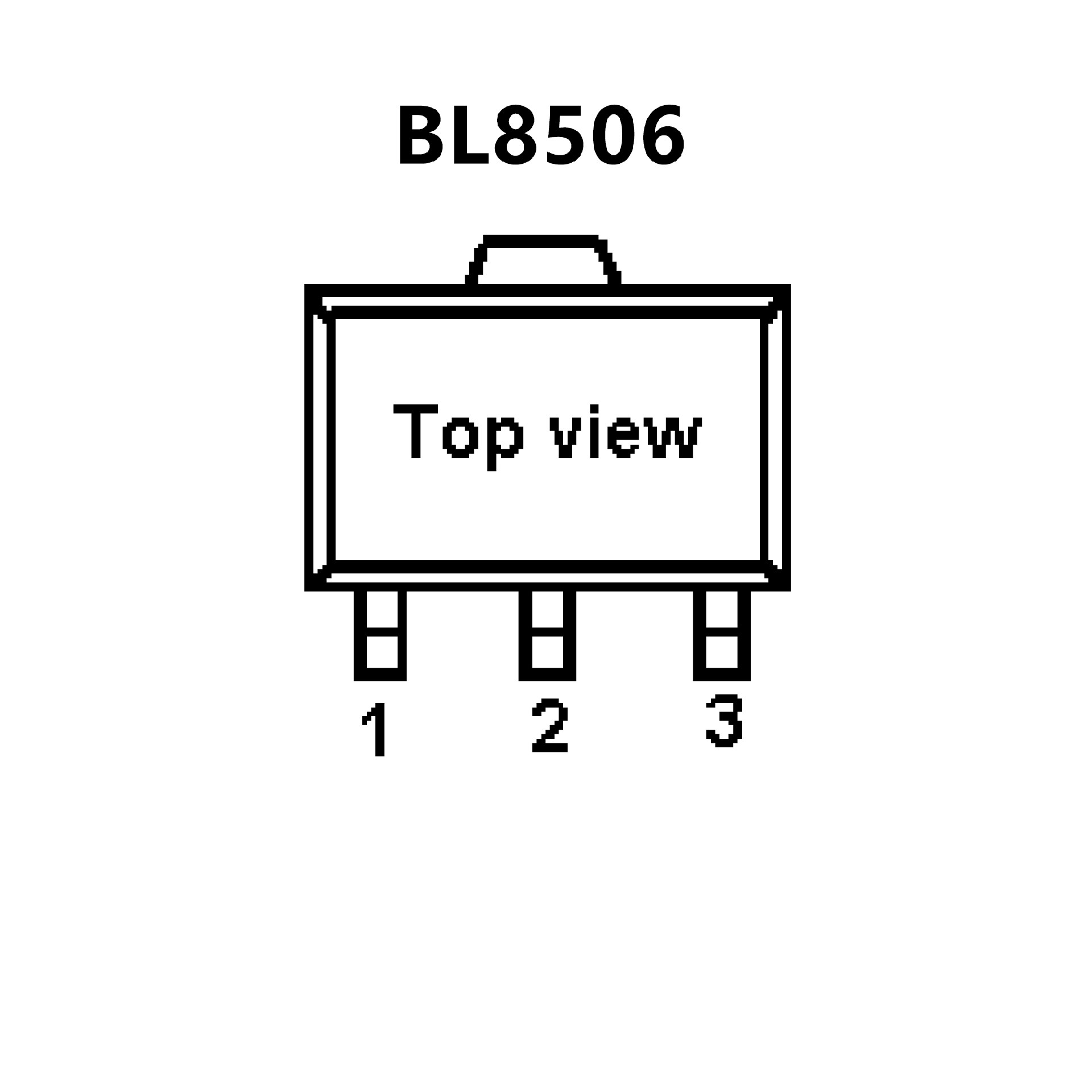

PIN CONFIGUTION
優勢替代
FEATURES
? Supply CurrentTyp. 0.8μA (-VDET＝1.5V, VDD＝-VDET-0.1V)
? Operating Voltage Range0.7V to 10.0V (Ta＝25℃)
? Detector Threshold Range0.9V to 6.0V (0.1V steps)
(For other voltages, please refer to MARK INFORMATIONS.)
? Detector Threshold Accuracy±2.0%
? Temperature-Drift Coefficient of Detector ThresholdTyp.±100ppm/℃
? Output TypesNch Open Drain “L”, Nch Open Drain “H”, and CMOS
? PackagesSON1612-6, SC-82AB, SC-88A, SOT-23-3, SOT-23-5, SOT-89, TO-92

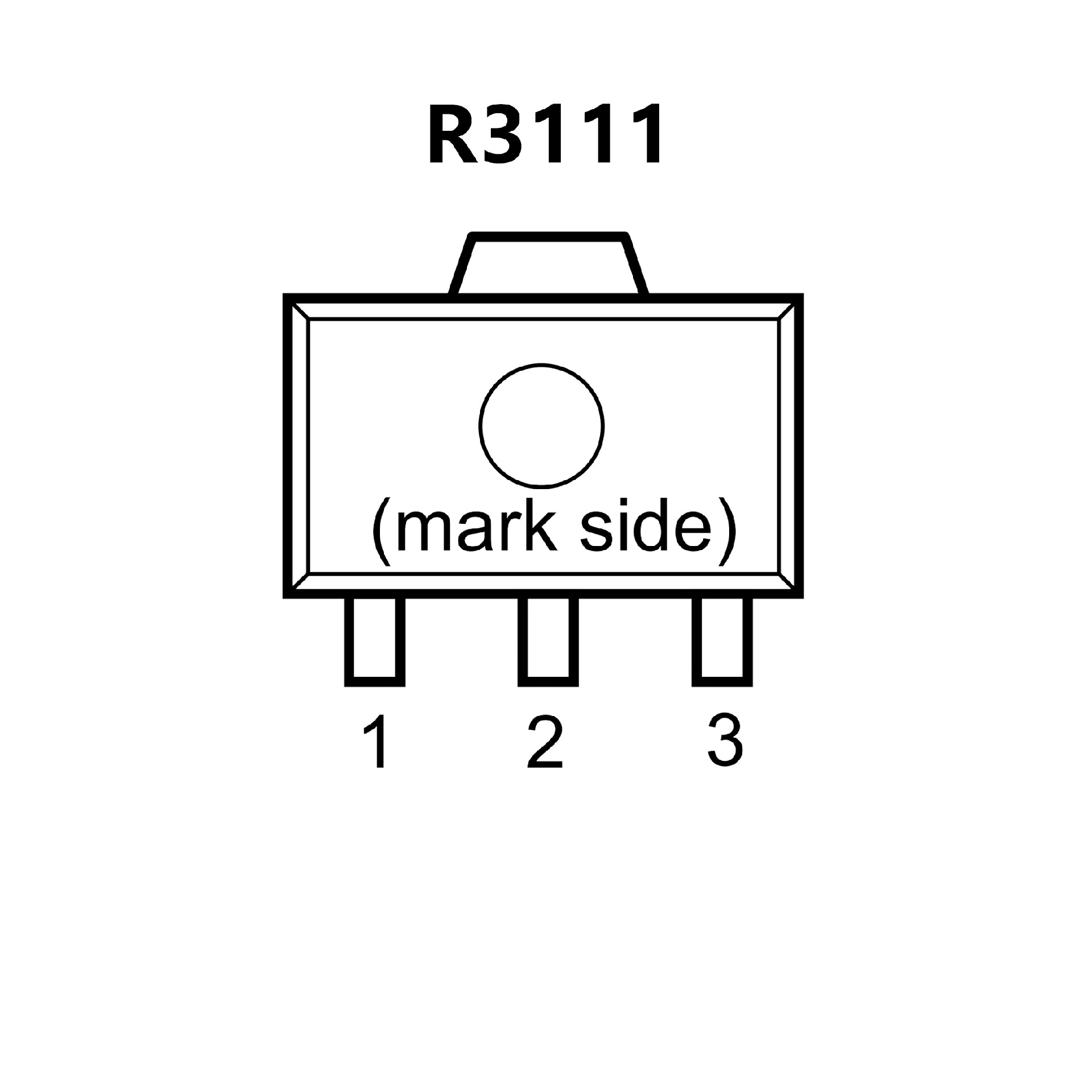

PIN CONFIGUTION
