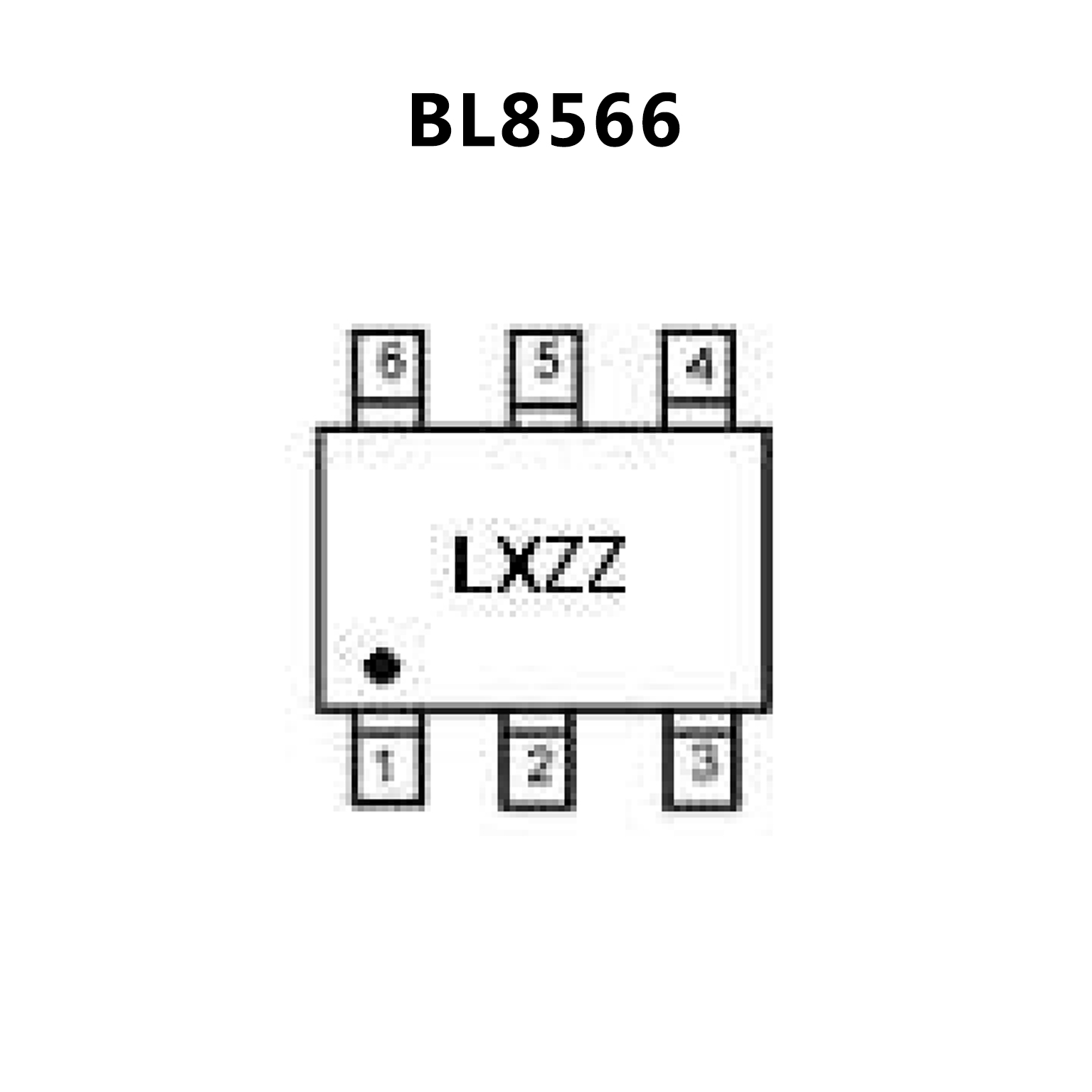

BL8566.pdf? Two low dropout voltage regulators
? 300mA output current for each LDO
? 25uA operating supply current per LDO
? Low 47uVRMS output noise
? Standby Mode: 0.1μA
? Low 160mV dropout at 300mA load
? 73dB PSRR at 100Hz
? Excellent Line regulation: 0.05%/V
? Independent Shutdown controls
? 1.2V to 3.5V Factory-Preset Output
? Output Current Limit
? Highly Accurate: ±2% (±1% customized)
? Wide Operating Voltage Ranges : 2.5V to 5.5V
? Low-Noise for RF Application
? No Noise Bypass Capacitor Required
? Fast Response in Line/Load Transient
? TTL-Logic-Controlled Shutdown Input
? Low Temperature Coefficient
? Dual LDO Outputs (300mA/300mA)
? Ultra-low Quiescent Current 27μA/LDO
? High Output Accuracy 2%
? Short Circuit Protection
? Thermal Shutdown Protection
? Current Limit Protection
? Short Circuit Thermal Folded Back Protection
? Tiny TSOT-23-6 and 6-Lead/8-Lead/10-Lead WDFNPackages
? RoHS Compliant and 100% Lead (Pb)-Free
