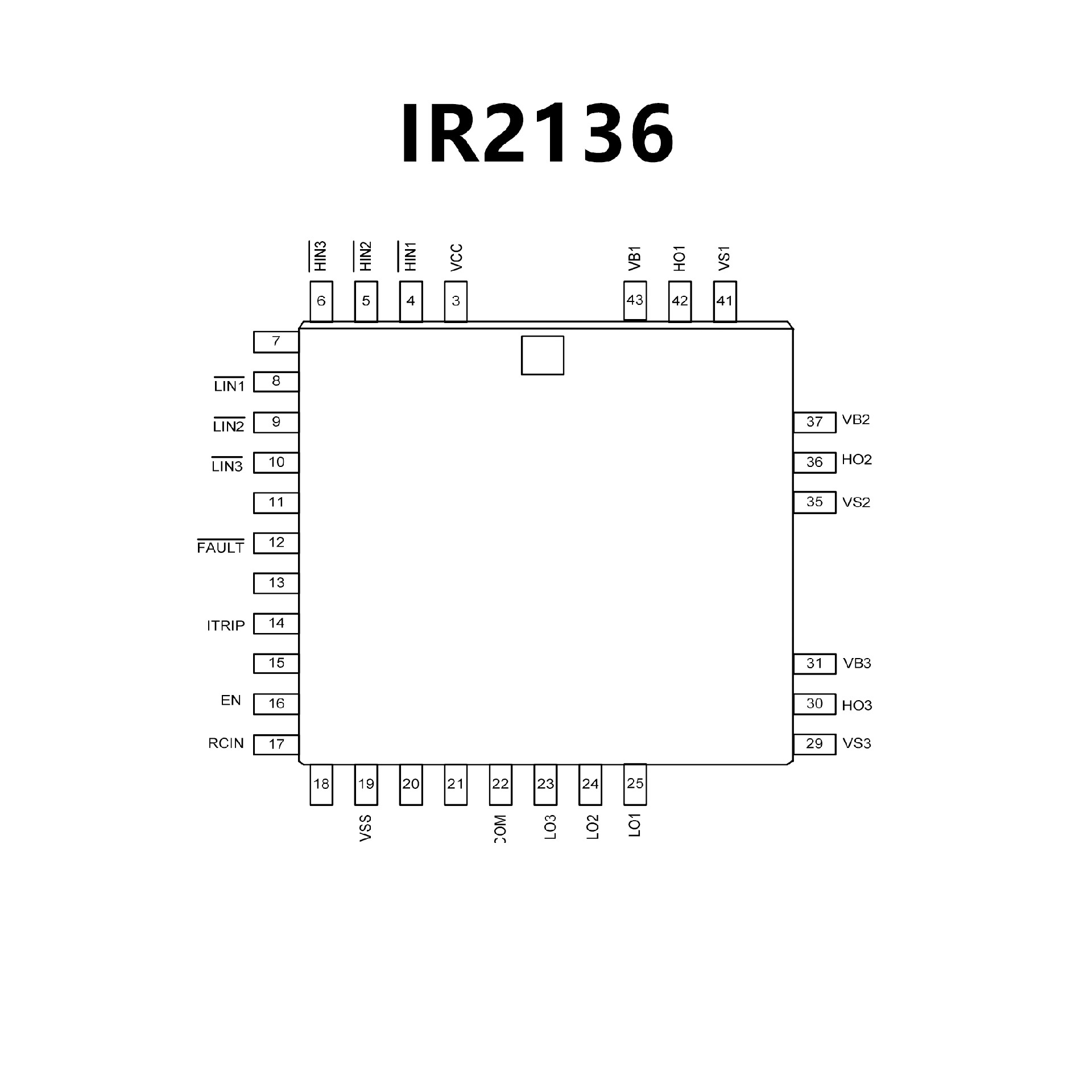

BLD2136.pdf? Floating channel designed for bootstrap operation
? Fully operational to +600 V
? Tolerant to negative transient voltage, dV/dt immune
? Gate drive supply range from 10 V to 20 V
(IR2136/
IR21368), 11.5 V to 20 V (IR21362D), or
12 V to 20 V
(IR21363/IR21365/IR21366/IR21367)
? Undervoltage lockout for all channels
? Over-current shutdown turns off all six drivers
? Independent 3 half-bridge drivers
? Matched propagation delay for all channels
? Cross-conduction prevention logic
? Low side output out of phase with inputs.
High side outputs
out of phase (IR213(6,63, 65, 66, 67, 68)),
or in phase
(IR21362) with inputs
? 3.3 V logic compatible
? Lower di/dt gate drive for better noise immunity
? Externally programmable delay for automatic fault clear
? All parts are LEAD-FREE
