PRE Biased NPN 150mW SOT523 R1=R2=47K, Replace DTC144EET1G
DDTC144EE-7-F
DDTC144EE-7-F.pdf
DDTC144EE-7-F.pdfFEATURES
? Epitaxial Planar Die Construction
? Complementary PNP Types Available (DDTA)
? Built-In Biasing Resistors, R1≠R2
? Lead Free/RoHS Compliant

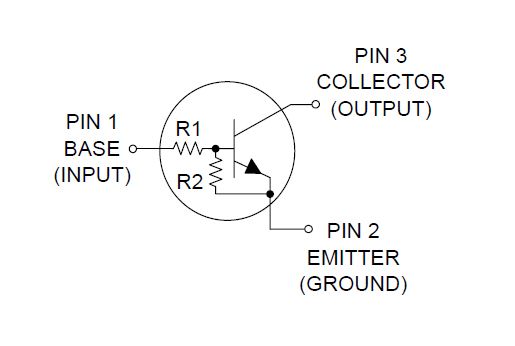

PIN CONFIGUTION
優勢替代
FEATURES
? Simplifies Circuit Design
? Reduces Board Space
? Reduces Component Count
? We declare that the material of product compliance
with RoHS requirements.

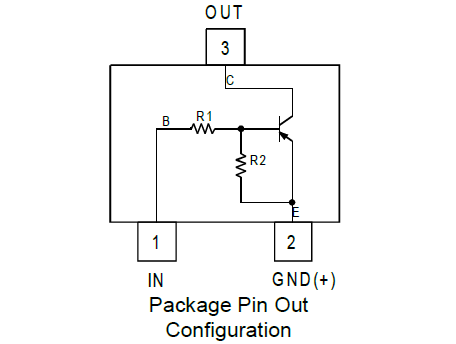

PIN CONFIGUTION
