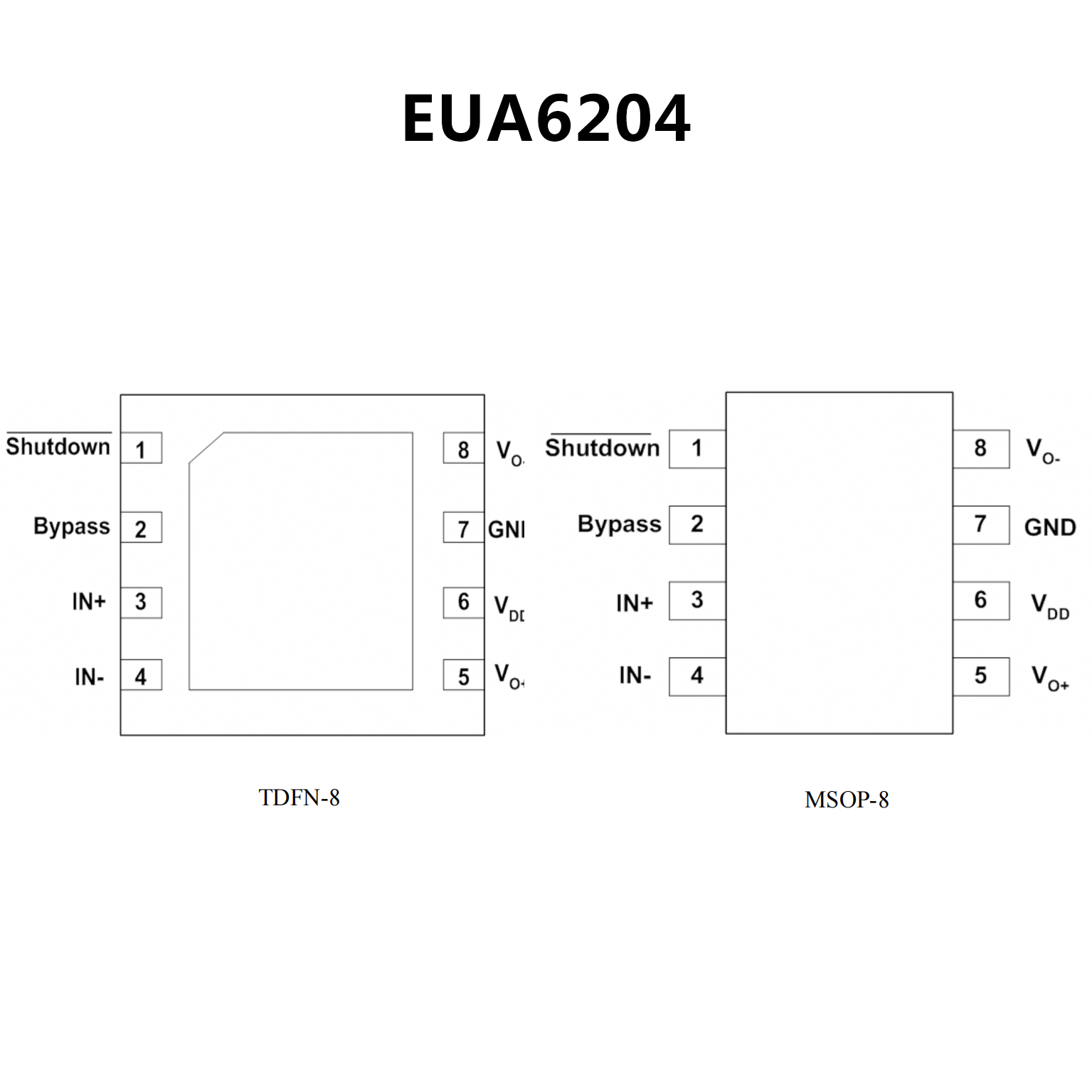

EUA6204.pdf? Supply Voltage 2.5V to 5.5V
? 1.36W into 8? from a 5-V Supply at THD=1% (typ)
? Low Supply Current: 4mA typ at 5V
? Shutdown Current: 0.01μA typ
? Fast Startup with Minimal Pop
? Only Three External Components
- Improved PSRR (-80dB) for Direct Battery Operation
- Full Differential Design Reduces RF Rectification
- -63dB CMRR Eliminates Two Input Coupling
Capacitors
? RoHS Compliant and 100% Lead (Pb)-Free
? Designed for Wireless or Cellular Handsets and PDAs
? 1.7 W Into 8 Ω From a 5-V Supply at THD = 10%(Typical)
? Low Supply Current: 4 mA Typical at 5V
? Shutdown Current: 0.01 μA Typical
? Fast Start-Up With Minimal Pop
? Only Three External Components
– Improved PSRR (?80 dB) and Wide Supply Voltage
(2.5 V to 5.5 V) for Direct Battery Operation
– Fully Differential Design Reduces RF
Rectification
– ?63-dB CMRR Eliminates Two Input Coupling
Capacitors
? Pin-to-Pin Compatible With TPA2005D1 and
TPA6211A1 in SON Package

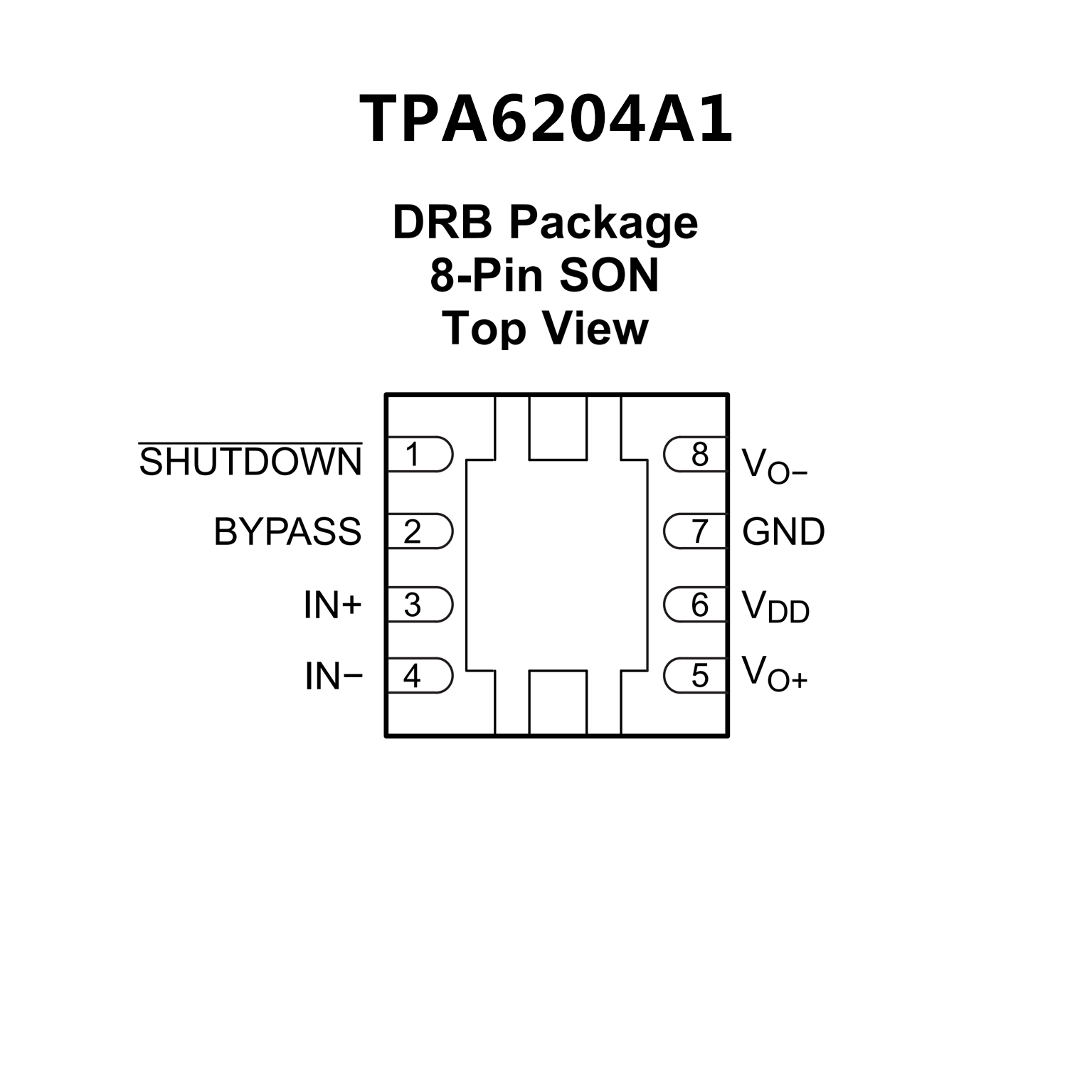

? Available in 3 mm × 3 mm SON Package (DRB)
