Three-Phase Full-Wave Fan Motor Driver, EUM6812A Replace BD67173.
EUM6812A
EUM6812A.pdf
EUM6812A.pdfFEATURES
? 3-Phase Sensorless Drive(No Hall Sensor Needed)
? Input Voltage Range:1.8V~6.0V
? Total Driver H+L RON less than 950mΩ
? No Need BEMF External Filter Cap
? UVLO Protection
? PWM Speed Control and Soft Switching
? Few External Components
? 20μA Low Standby Current
? Built in TSD
? Available in UDFN-10 Package
? RoHS Compliant and 100% Lead (Pb)-Free
Halogen-Free

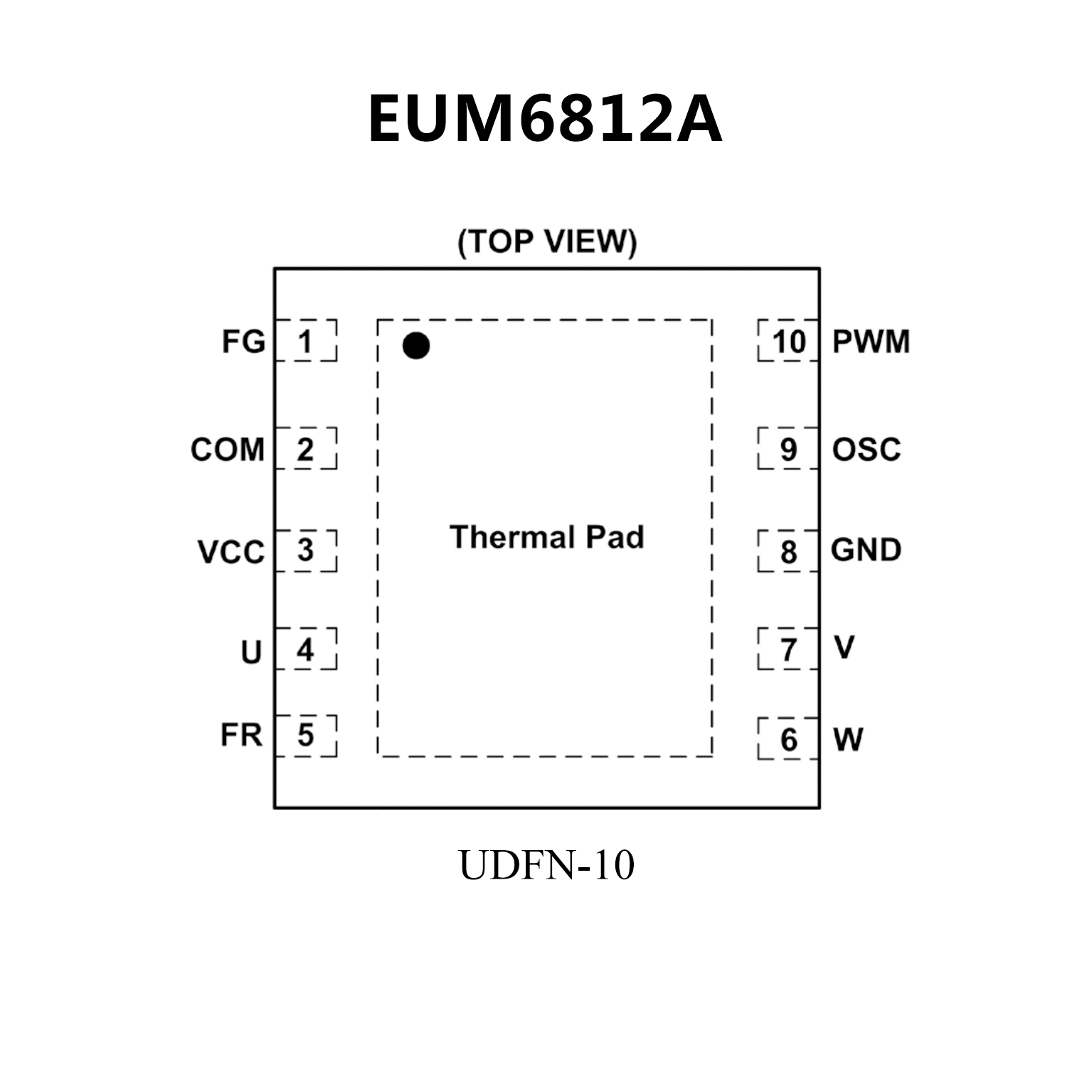

PIN CONFIGUTION
優勢替代
FEATURES
? Speed controllable by PWM input signal
? Sensorless drive
? Soft switched drive Quick start
? Power save function
? Internal RNF resistance
? Quick start function

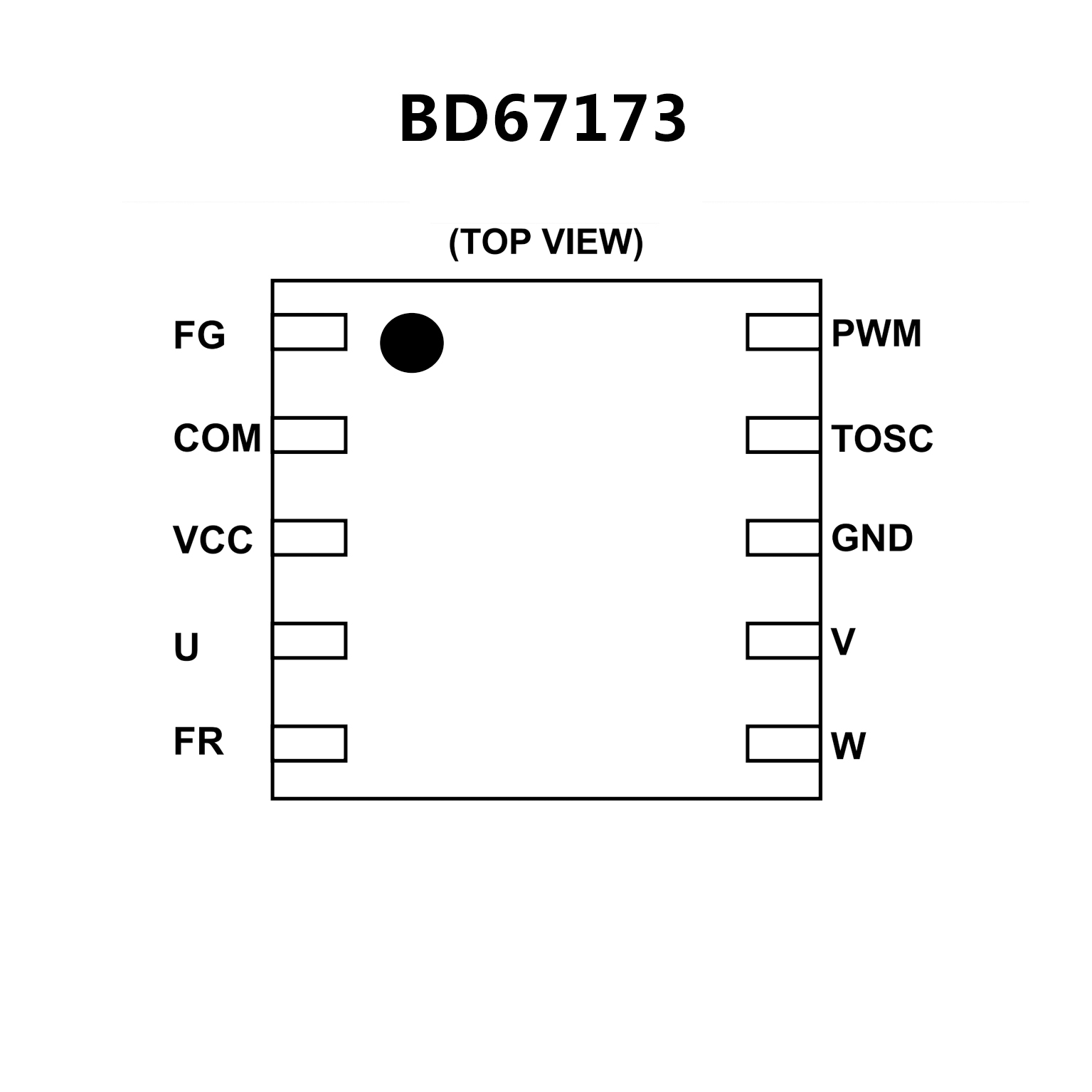

PIN CONFIGUTION
